TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202138 | ORBEA ORBEA | 39
EN
STEMS

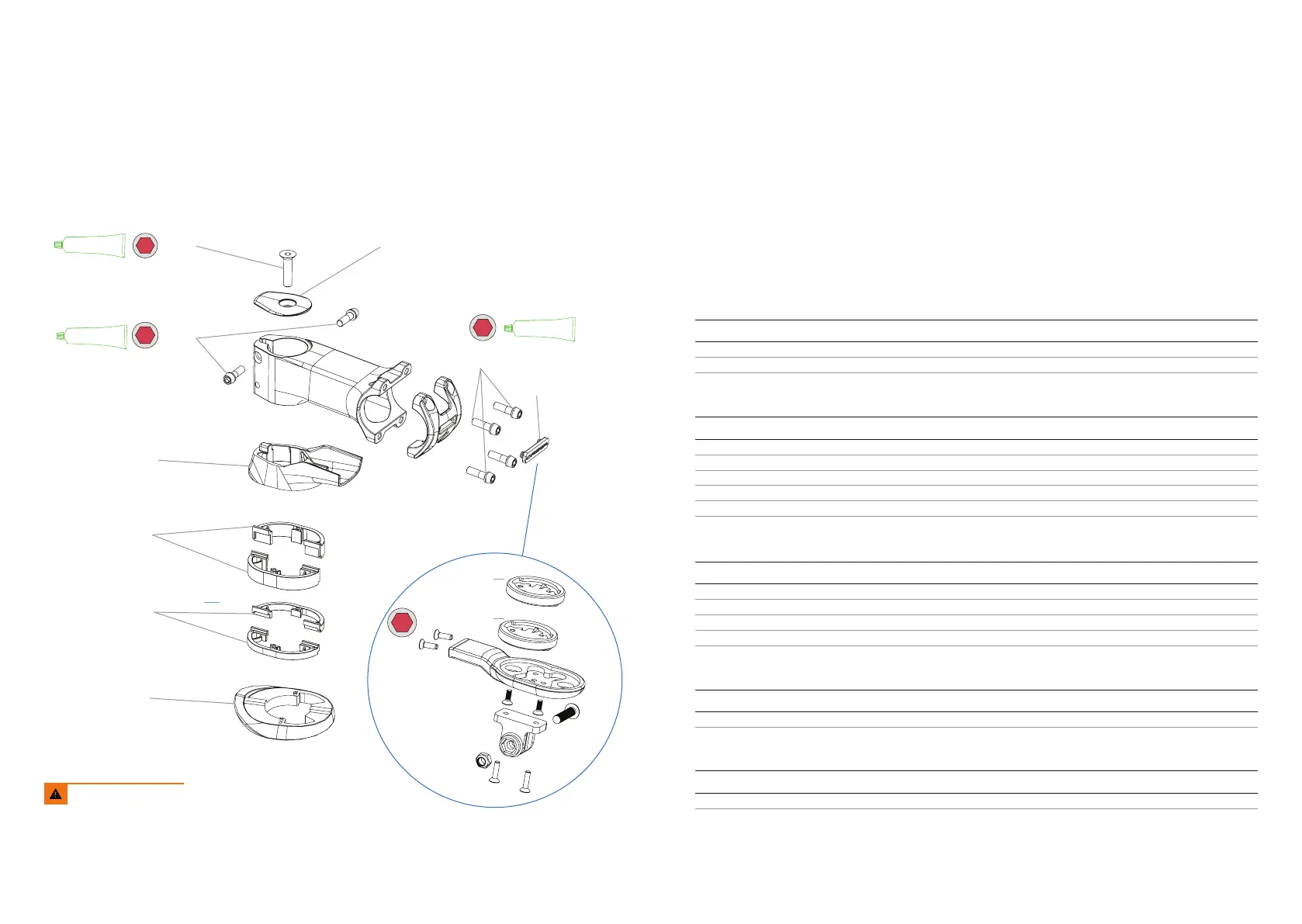

ASSEMBLY AND SPARES. OC1 STEM
4
5 N.m
GREASE
38.1 38.2
38.5
38.3
40
37.1
37.2
41
38.3
2
2 N.m
GREASE
4
6 N.m
38.4
GARMIN
WAHOO
39
4
6 N.m
GREASE
Always follow the recommended
torque settings.
37 HEADSET SPACERS KIT ICR STEM OVAL
ART Nº: X063 QUANTITY
37.1 HEADSET SPACER ICR01 10mm 4
37.2 HEADSET SPACER ICR01 5mm 4
38 HARDWARE KIT STEM ROAD OC1
ART Nº: X069 QUANTITY
38.1 BOLT M6x35 TOPCAP 1
38.2 TOPCAP STEM ROAD OC1 1
38.3 BOLT M5x15 STEERER AND FACEPLATE 6
38.4 BOLT M3x10 2
38.5 LOGO ORBEA FACEPLATE 1
39 COMPUTER HOLDER FACEPLATE KIT. ROAD ICR/OC1/OC2 STEMS
ART Nº: X065 QUANTITY
CAMERA BRACKET 1
GARMIN+WAHOO ADAPTER 1
COMPUTER BRACKET FACEPLATE 1
BOLT M3x10 2
40 LOWER COVER INTERNAL CABLING ROAD OC1. OVAL
ART Nº: X070 QUANTITY
LOWER COVER INTERNAL CABLING ROAD OC1. OVAL 1
41 HEADSET FRAME COVER. ORCA OMR
ART Nº: X046 QUANTITY
HEADSET FRAME COVER. ORCA OMR 1
