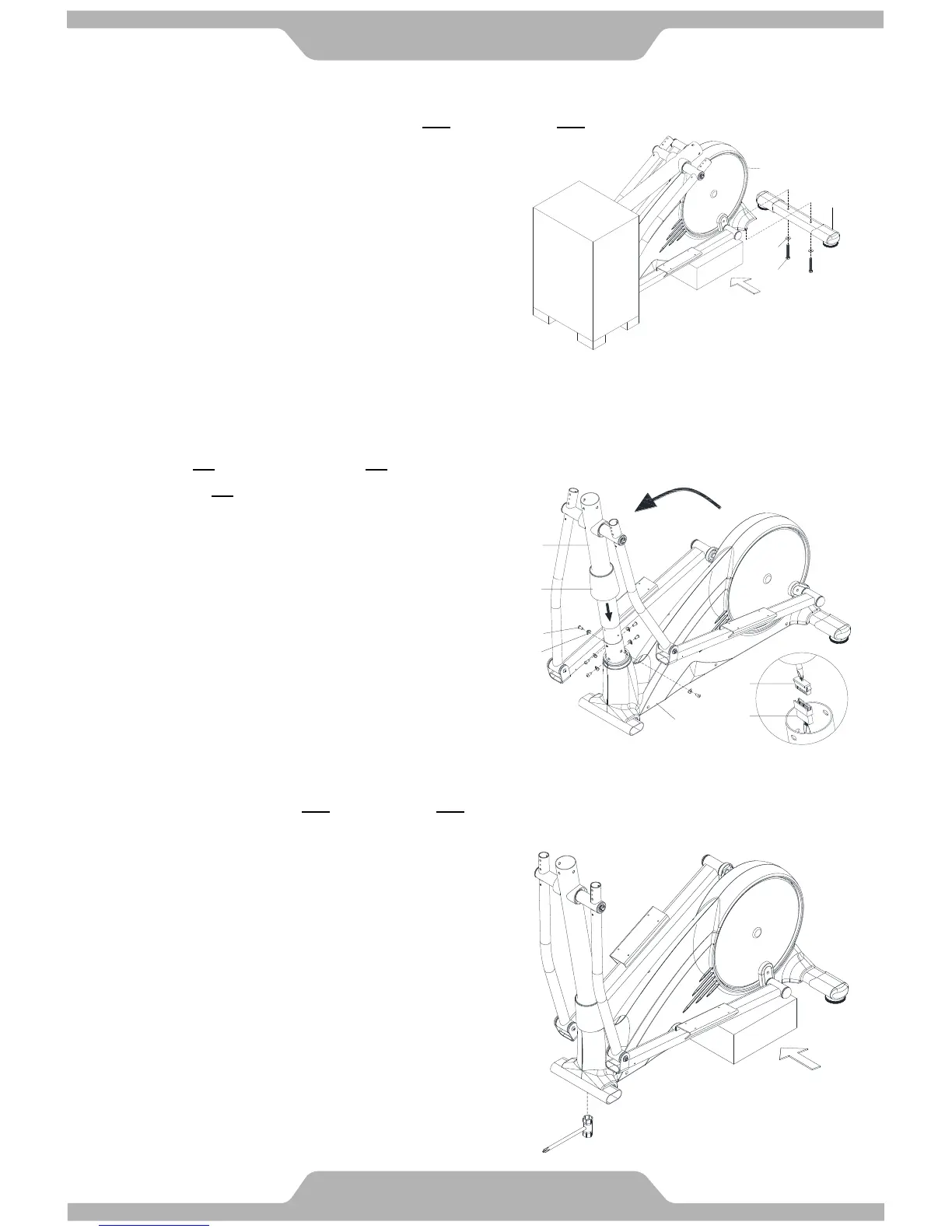

4. Rear Stabilizer Tube Installation
4.1 Assemble the Rear Stabilizer Tube [A08] with Two Bolts [B11] and Two Washers [B10] which were removed from
step 3.2 and tighten firmly.
[Tighten bolts with the Hex Tool with Phillips Screw Driver provided.]
5. Upright Support Tube Installation
5.1 Lift the Upright Support Tube [A02] until it is vertical while the other person connects the matching connectors of
cable [D04/D05] as shown in the illustration below.
5.2 Then slide the Upright Support Tube [A02] into the hole of Main Frame [A01].
5.3 Assemble Six Blots [B02] by fingers, Six Curve Washers [B01] into Main Frame [A01]. Align all bolts slightly then
firmly tighten Six Bolts [B02].
5.4 Slide down the Hat Cover [C06] and push firmly.
[Tighten bolts with the M5 Allen Key provided.]
Attention: Cables can't be folded.
6. Remove Front Protection Tube
6.1 Remove the front polystyrene and place it under the front of the machine to lift it off the floor.
6.2 Refer the step 3 to remove Two Bolts [B11] and Two Washers [B10] from the front of machine and remove front
protection tube.
[Remove bolts with the Hex Tool with Phillips Screwdriver provided.]
