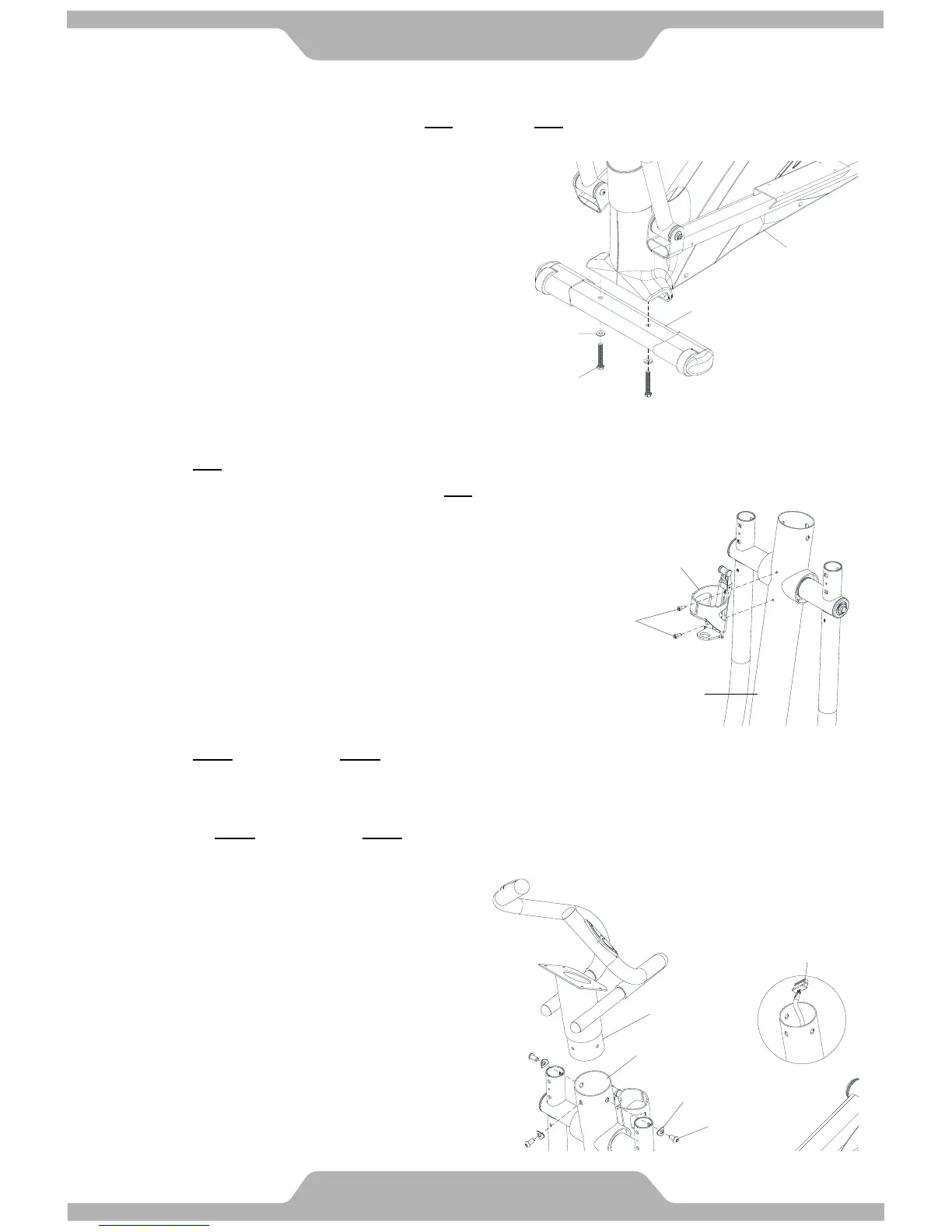

7. Front Stabilizer Tube Installation
7.1 Assemble the Front Stabilizer Tube [A07] with Two Bolts [B11], Two Washers [B10] which were removed from the
step 6.2 and tighten firmly.
7.2 Remove the polystyrene block and discard.
[Tighten bolts with the Hex Tool with Phillips Screwdriver provided.]
8. Water Bottle Holder Installation
8.1 Remove Two Screws [B16] from Upright Support Tube [A02].
8.2 Align Water Bottle Holder [C24] and fasten with Two Screws [B16] which were removed from step 8.1.
[Remove/Tighten screws with the M4 Allen Key provided.]
9. Stationary Handlebar Installation
9.1 Remove Three Bolts [B23] and Three Curve Washers [B01] from Stationary Handlebar [A09].
9.2 Route Cable [D04] through the bottom of Stationary Handlebar [A09] out the top of Stationary Handlebar [A09],
then slide the Stationary Handlebar [A09] into the opening hole of Upright Support Tube [A02].
9.3 Secure with Three Bolts [B23] and Three Curve Washers [B01] which were removed from step 9.1.
Before tightening make sure the Stationary Handlebar [A09] correctly positioned.
[Remove/Tighten bolts with the M5 Allen Key provided.]
Attention: Cables can't be folded.
