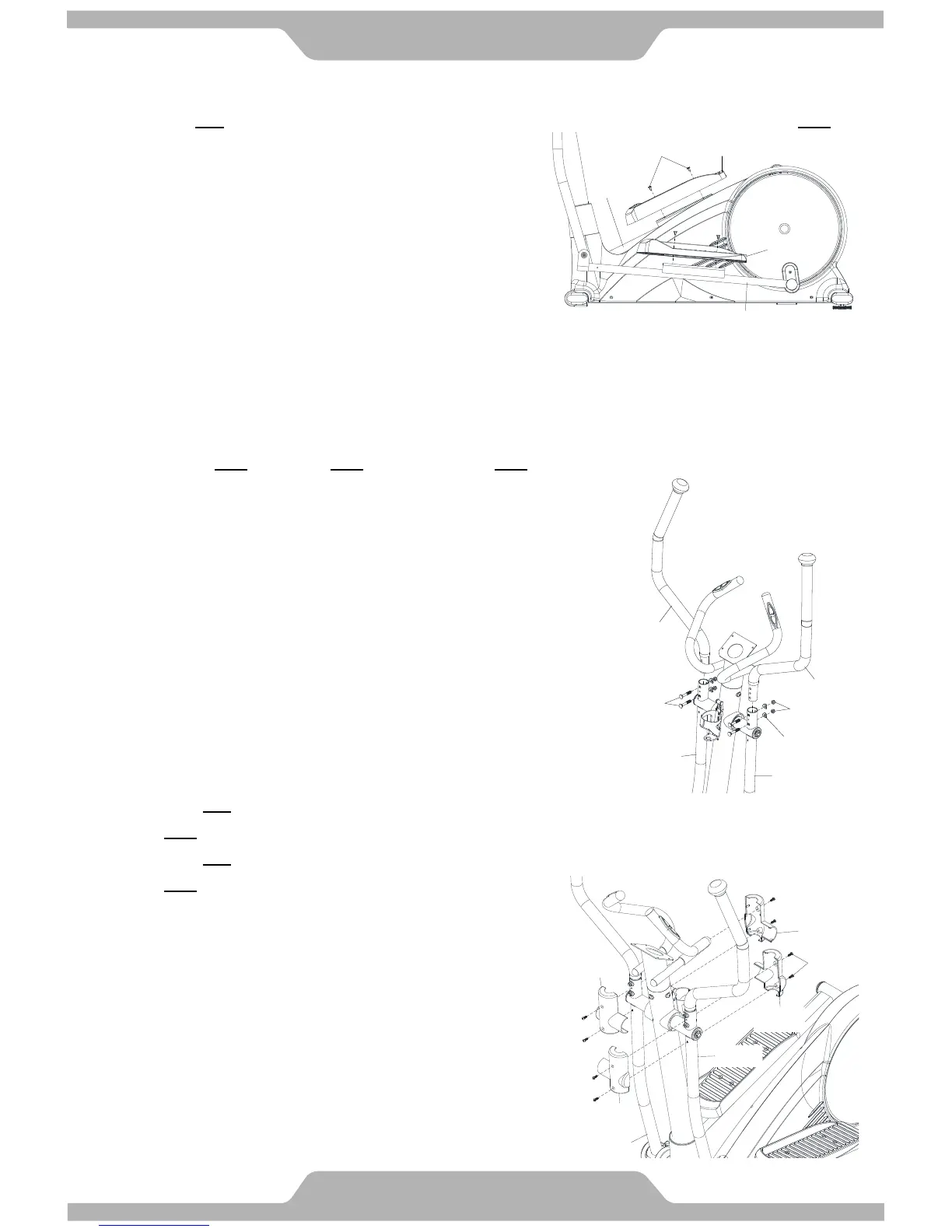

10. Foot Pedal Installation
10.1 Align the Two Foot Pedal [C12 & C30] and fit to Foot Tube [A05 & A06]. Secure and tighten firmly with Four
Screws [B05].
[Tighten screws with the M4 Allen Key provided.]
11. Dual Action Handlebar Tube Installation
11.1 Insert the Left Dual Action Handlebar Tube [A12] into the top of the Left Dual Action Arm [A03] marked with L
sticker.
11.2 Insert the Right Dual Action Handlebar Tube [A13] into the top of the Right Dual Action Arm [A04] marked with R
sticker.
11.3 Secure with Four Bolts [B04], Four Washers [B12] and Four Nylon Nuts [B09] and tighten firmly but do not over
tighten.
[Tighten nylon nuts with the Hex Tool with Phillips Screwdriver provided.]
12. Decorative Cover Installation
12.1 Assemble One set of Dual Action Arm Decorative Cover –A/B [C29/C31] onto the Left Dual Action Arm [A03]
with Four Screws [B19] and tighten firmly.
12.2 Assemble One set of Dual Action Arm Decorative Cover –A/B [C29/C31] onto the Right Dual Action Arm [A04]
with Four Screws [B19] and tighten firmly.
[Tighten screws with the Hex Tool with Phillips Screwdriver provided.]
