TEC32-1664-009 OceanTRx7™ ADMx Technical Note Page 8 of 10

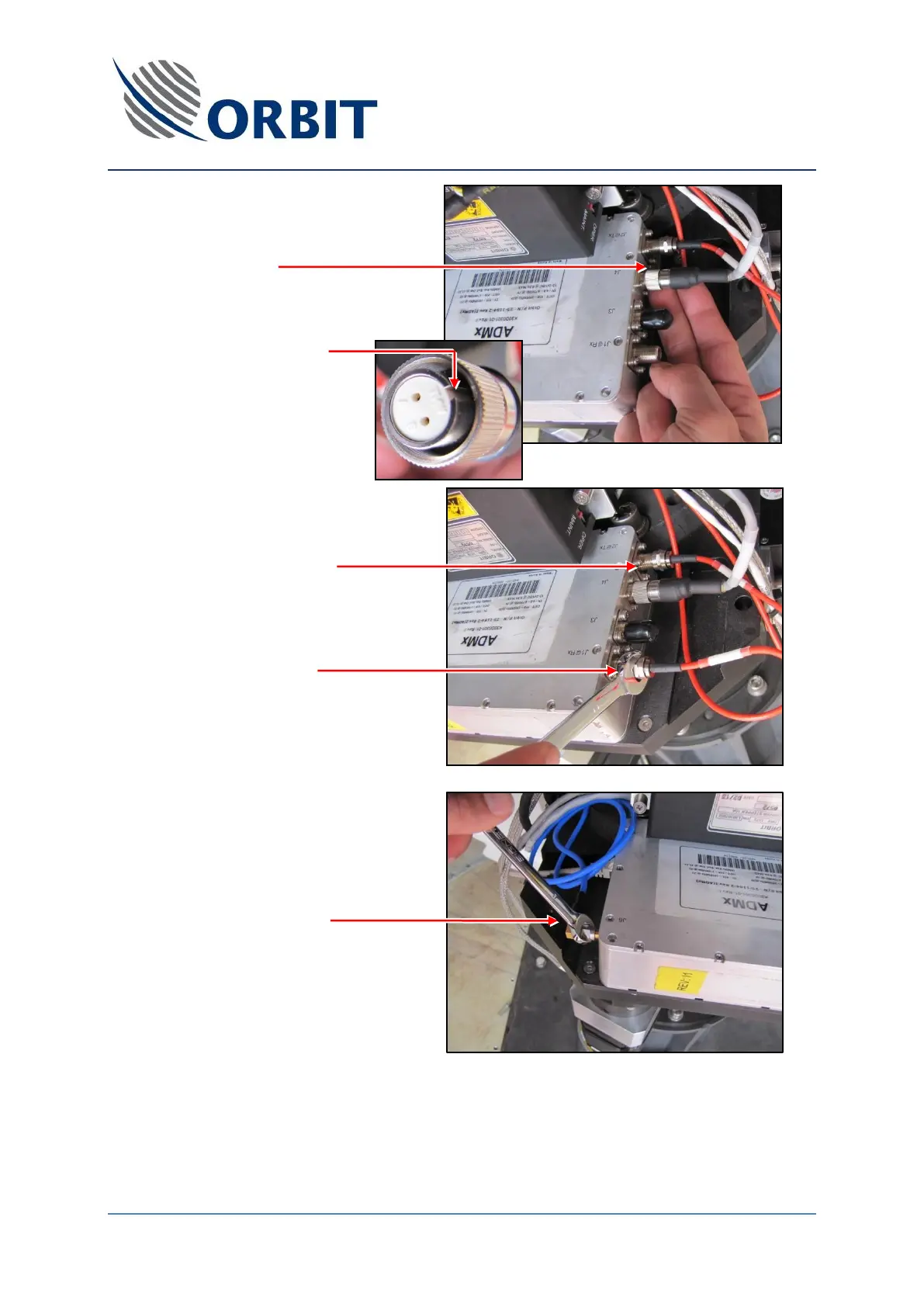

Step 4
Manually screw the plug to
the ADMX.
Mind the plugs pins and lead!
Step 5
Connect and tighten the TX
red RF cable to J2.
Connect and tighten the RX
red RF cable to J1.
Step 6
Reconnect and tighten blue
RF cable to the ADMX.
