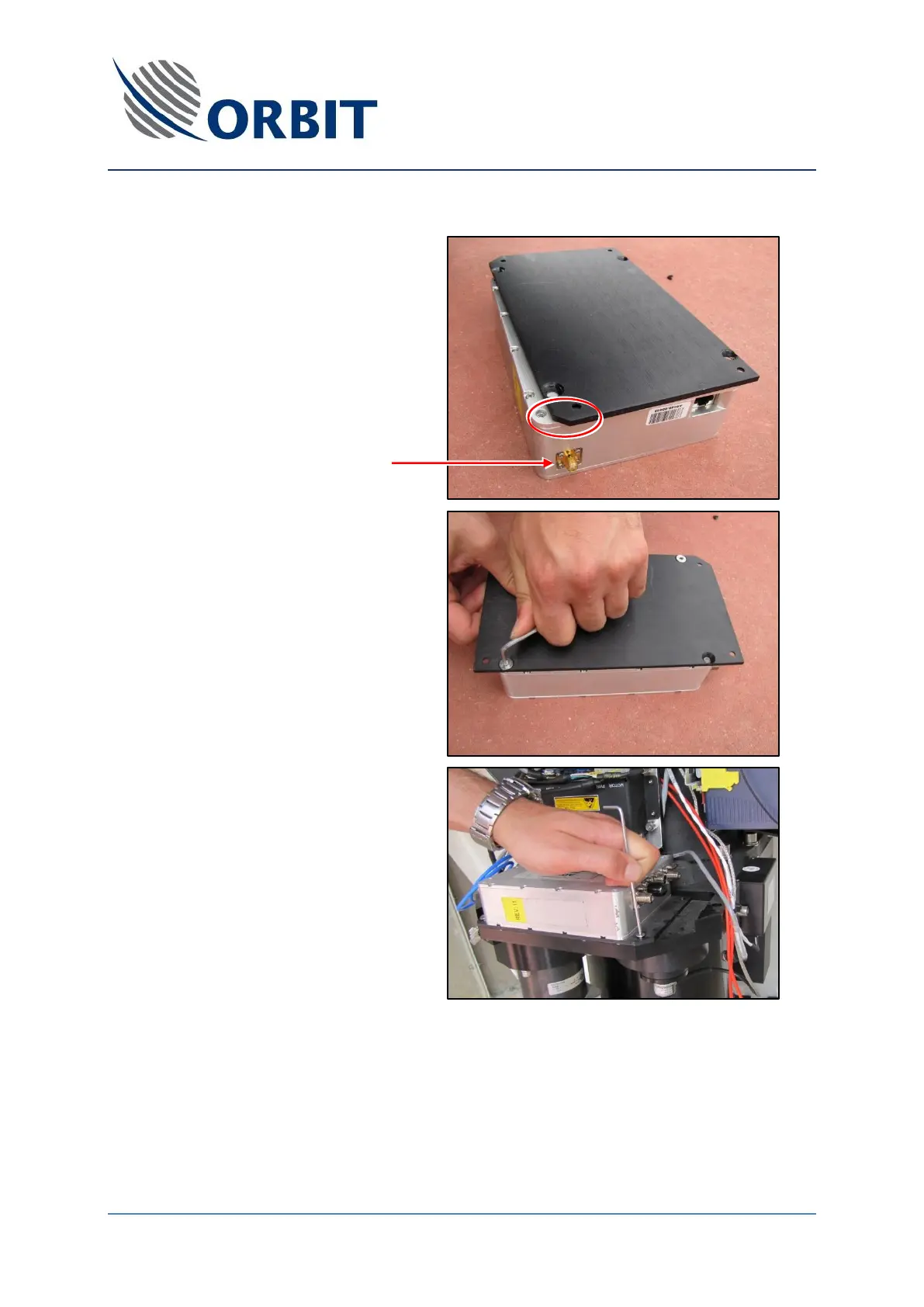

3.2 Installing an ADMx
Step 1
Position the mounting plate
as described.
Note the plate’s angle.
Step 2
Secure the new ADMX to its
mounting plate using a 3mm
Allen key.
Step 3
Mount the ADMX mounting
plate in its place on the
PEDESTAL and secure it
using a 2.5mm Allen key.
