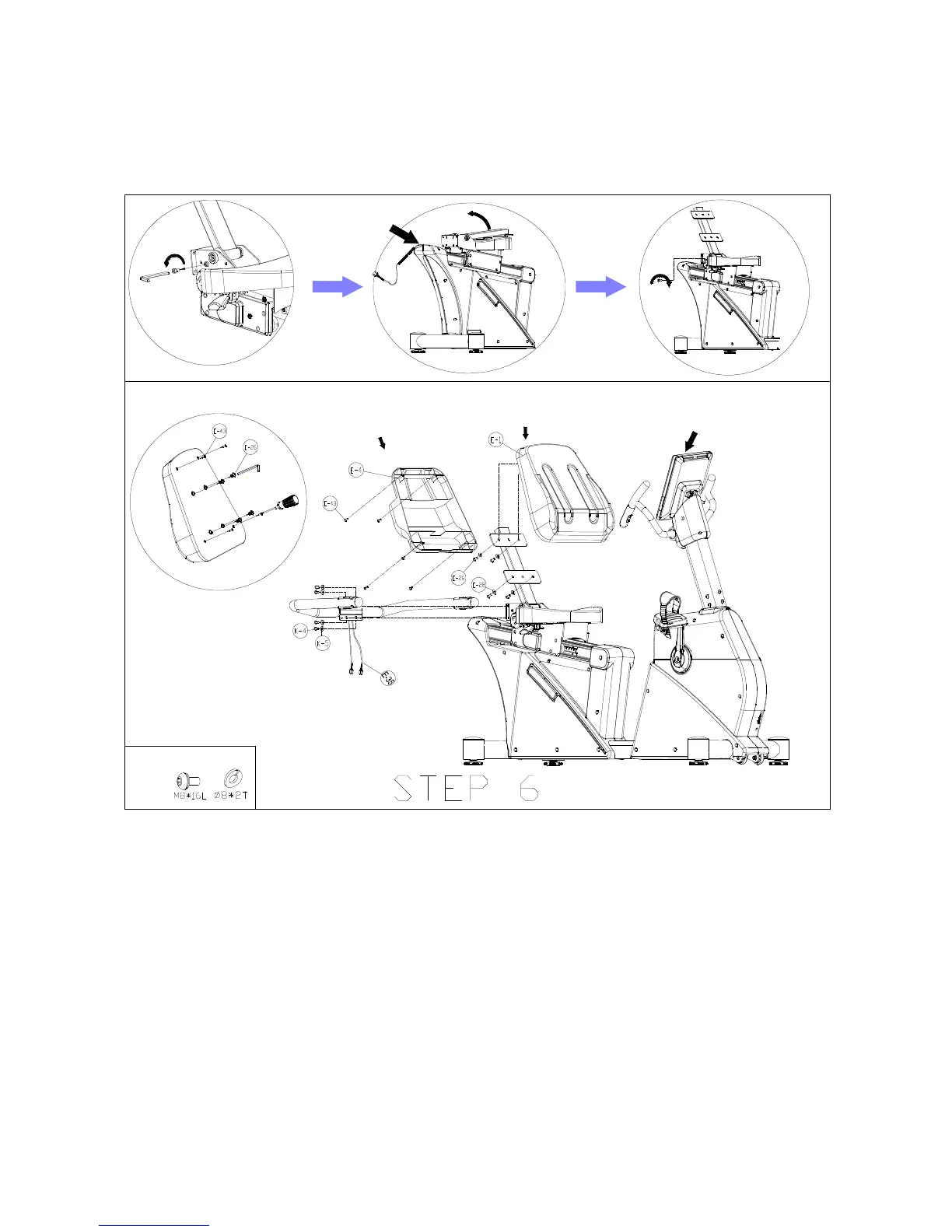

Step 6 – Install Seat and Carrier
Take off hexangular screw (E-49) from holder for slider post (E). Keep seat support frame (E-3) erect and secure it with screw(E-49).
Apart screw (E-43) from handlebar (E-5) . Fixing carrier (E-42) on the handlebar with screw (E-43). Take off four hexangular screws (E-26)
and four cross screws (E-43) from back rest. Secure back rest with four hexangular screws (E-26) , then attach magazine rack( E-4) to
back rest with four cross screws (E-43).
4*
