STEP 4

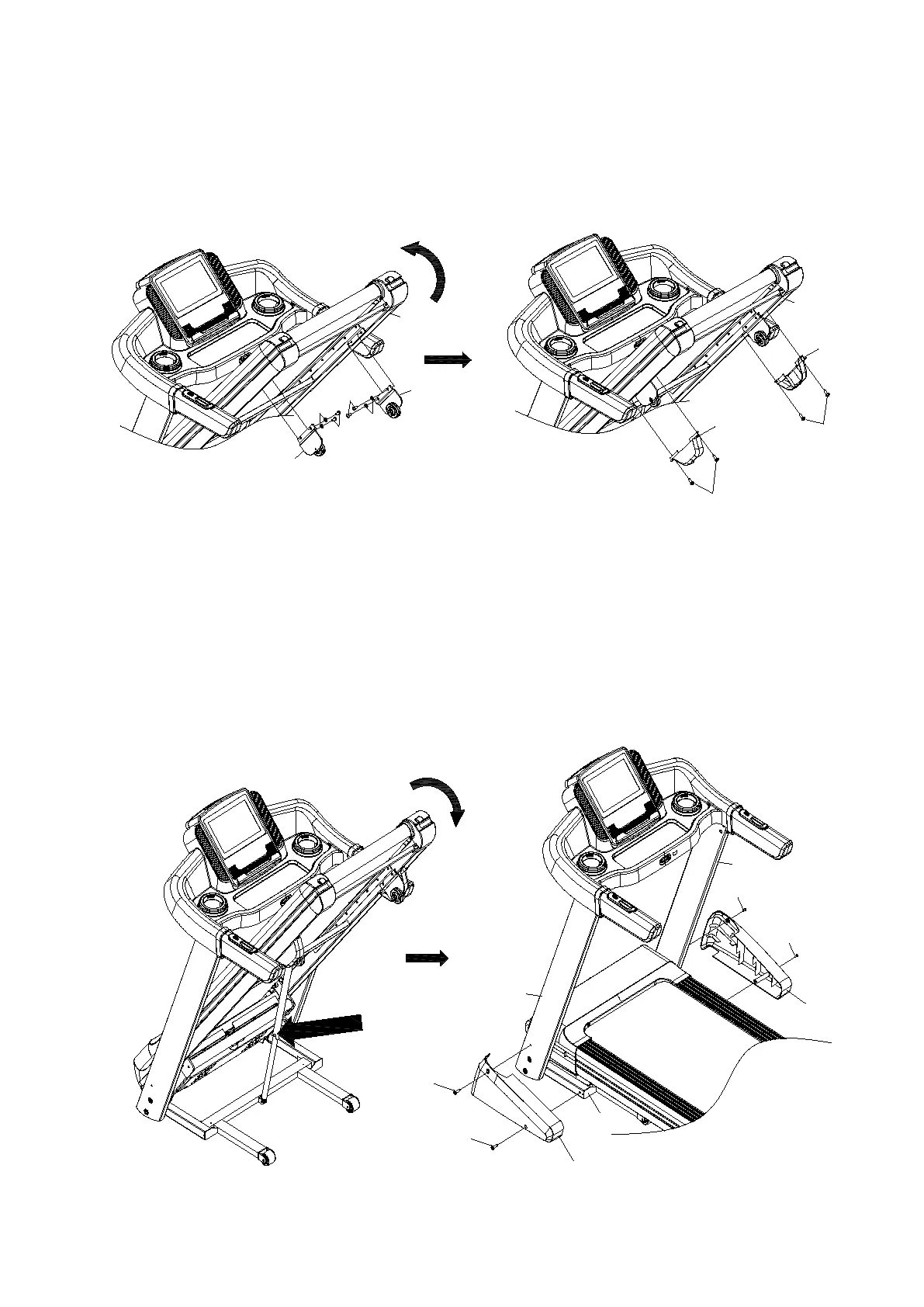

Lift the running deck up and push it up slightly until you hear a "click" sound from cylinder. First,
lock the Adjustment Wheel (A82) onto Main Frame (A1) by using 4 pcs of Button Head Cap Screw,
M8X15mm (D13) and Flat Washer M8 (D23). Then, use 4 pcs of Phillips Pan Head Triangular
Self-Tapping Locking Screw, M4X16mm (D181) to lock the Adjustment Wheel Cover (B125) onto
Main Frame (A1).
D13
D23
D13
D23
A82
A82
A1
A1
B125
B125
D181
D181
STEP 5
When putting down the running deck, gently push the tail of the running deck upwards with your
hands, press the safety sleeve with your feet, and slightly press the tail of the machine downwards.
When the machine slowly descends, you can withdraw your feet. After the machine lays firmly on
the ground, use 4 pcs of Phillips Rounded Washer Head Self-Drilling Screw, ST4.2X25mm to lock
Left&Right SideCover (B11L/B11R) on Left &Right Upright (A3L/A3R) and Base Frame (A2).
D50
D50
B11L
D50
D50
B11R
A2
A3L
A3R
