ORBITEC OSW Series - Spare Parts and Consumables; Torch Parts List; Torch Arm Parts List

Operation Manual
"Open Frame Welding Head OSW Series"
15
7. Spare parts and consumables
7.1. Torch parts list
Item
Components
Article number

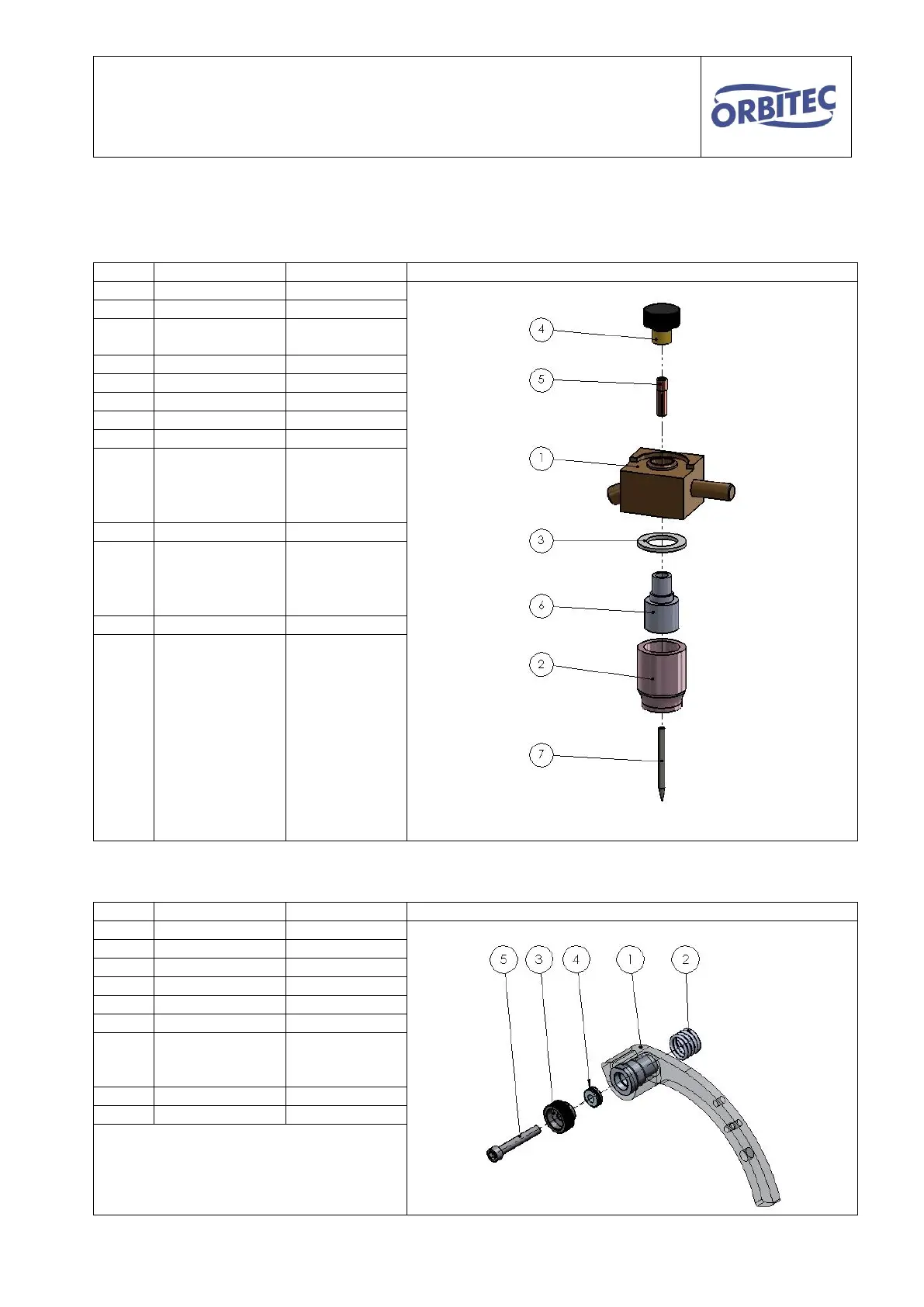

Explosion view
1
Torch body
2
Ceramic nozzle
Size 8
3
Teflon shim
4
Torch cap
5
Clamping sleeve
 1.6 mm
or
 2.4 mm
6
Gas lens
 1.6 mm
or
 2.4 mm
7
Tungsten elec-
trode
1.6mm
or
2.4 mm;
L=35mm
to
55mm
7.2. Torch arm parts list
Item
Components
Article number
Explosion view
1
Torch arm
2
Torsion spring
3
Knurled screw
4
Spherical washer
(pressure bear-
ing)
5
Screw
