Operation Manual
"Open Frame Welding Head OSW Series"
10

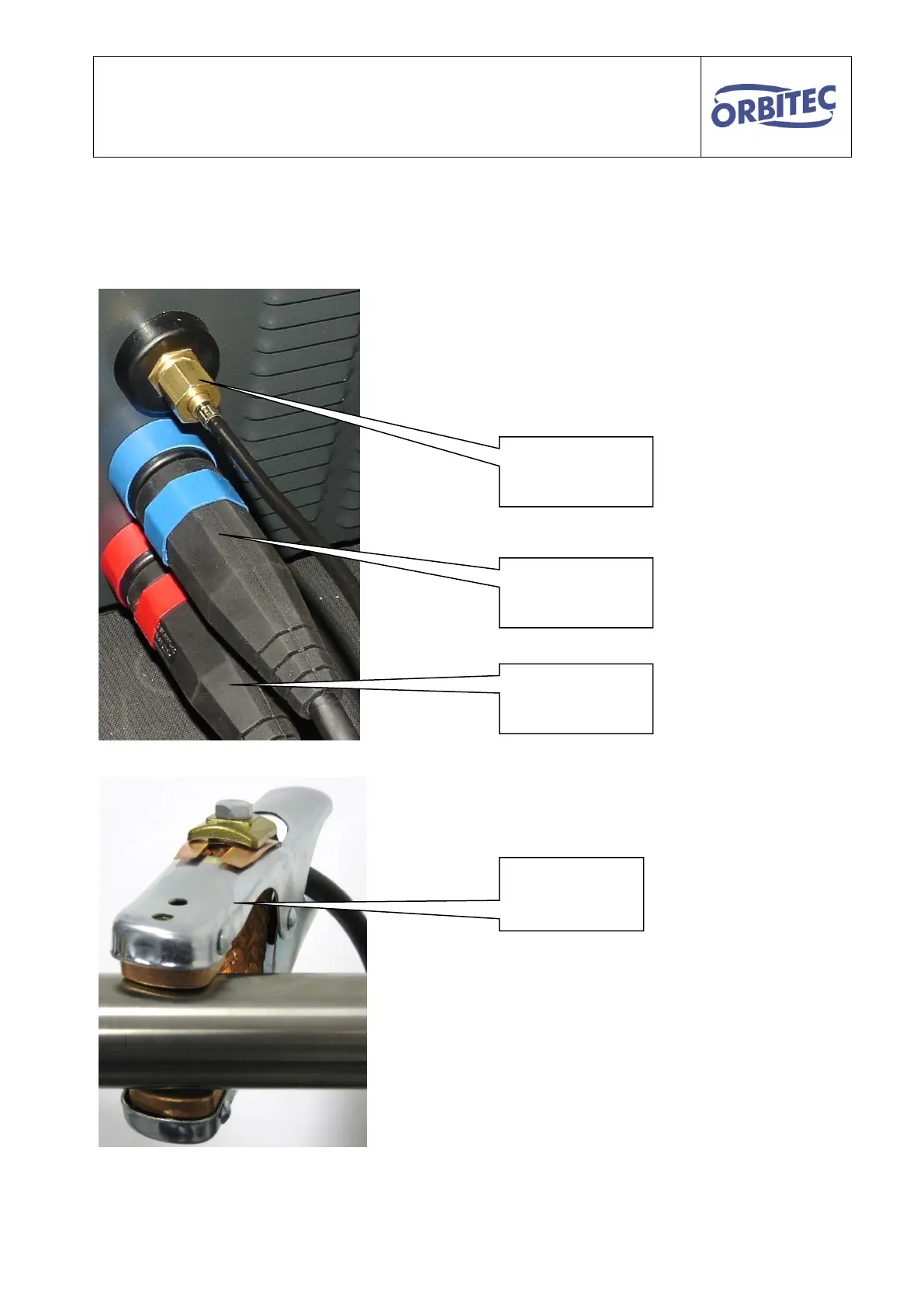

5. Connecting the weld head to the power supply
The power connector marked in blue is the negative pole. – Hose package connector
The power connector marked in red is the positive pole - ground connection clamp.
Gas connector,
hose 6x1, ¼“
screw thread
Power connector
Electrode (minus
pole) colour: blue
Power connector
Ground (plus pole)
colour: red
Fix the ground
clamp onto the
tube.
