"Open Frame Welding Head OSW Series"
12

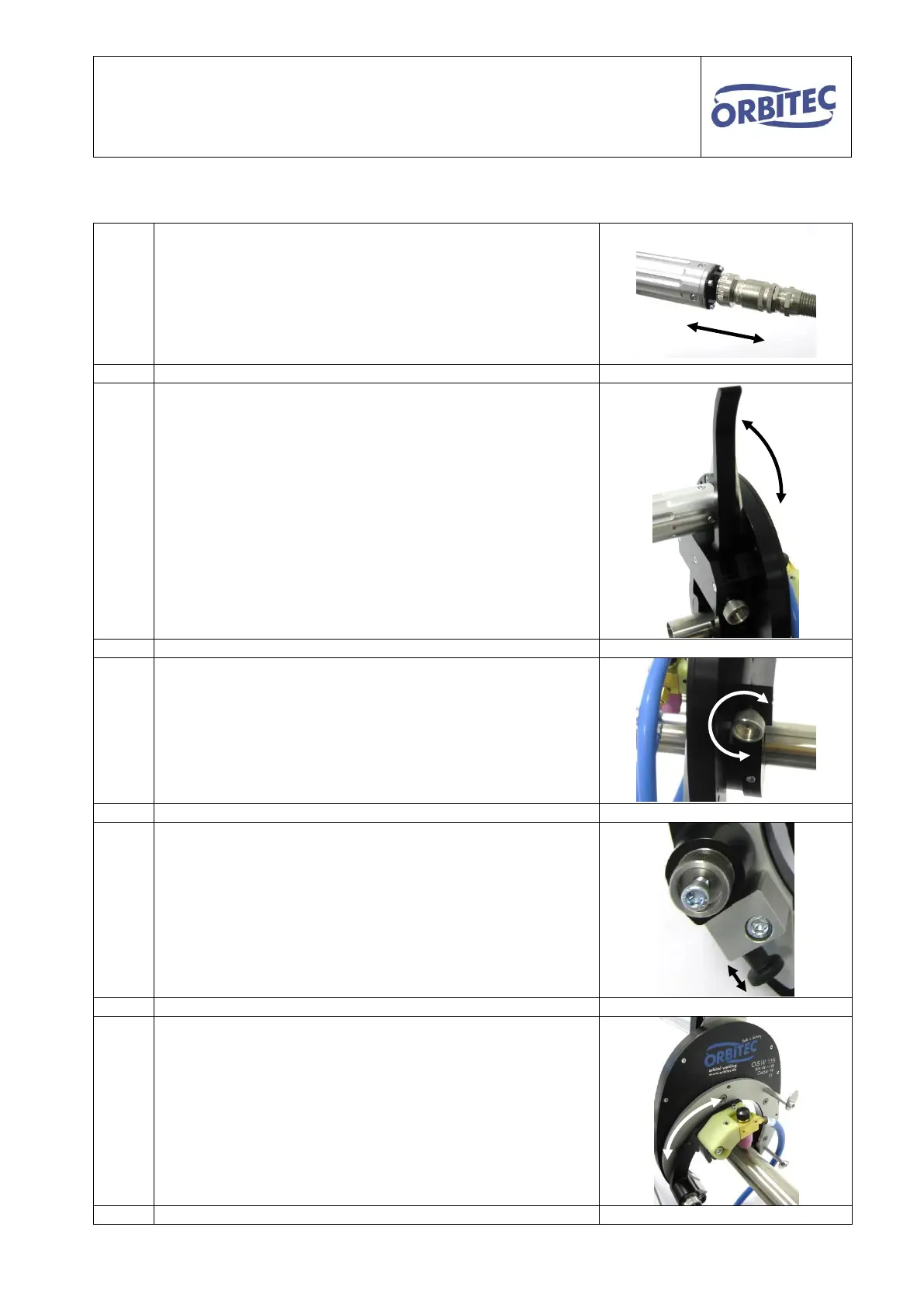

6. Operation of the open frame weld head
1
Connect the control cable for the drive motor.
2
Close the quick-action clamping lever and place onto the tube.
3
 Preadjust the clamping jaws to the required tube out-
side diameter.
 Then open the clamping lever and close it ¼ to ½ a
turn using the adjustment screws.
 Close the clamping lever.
4
Pull out the lock for the torch arm.
The torch arm is pressed onto the workpiece using a torsion
spring.
A constant distance to the tube is maintained via the spring
and the torch height adjustment.
5
CAUTION! Hold the torch arm firmly and let it down slowly,
otherwise possible damage to the torch height adjustment
cannot be ruled out.
