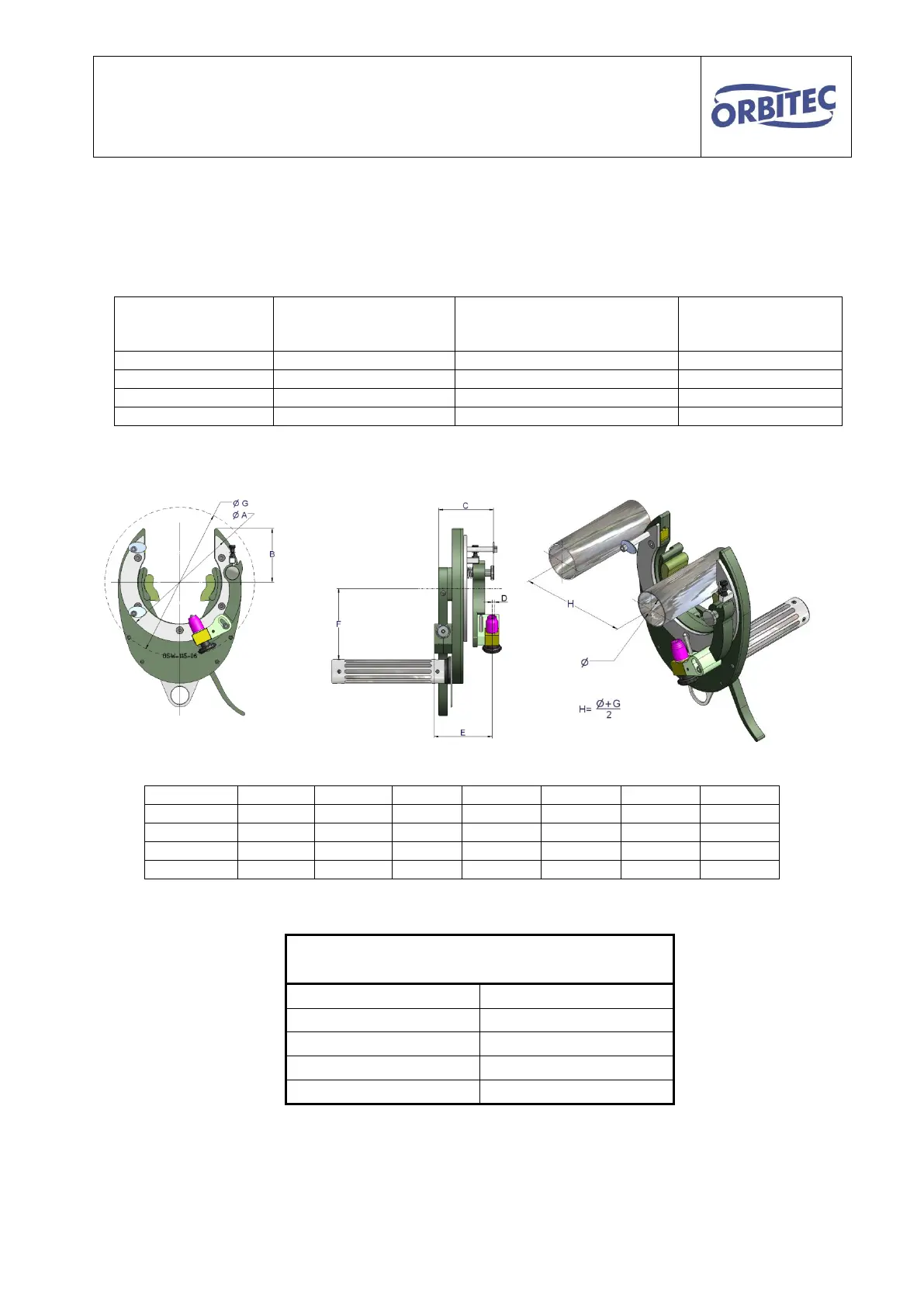

3. Application ranges - dimensions
Weld head type
Application range (OD)
Application range for screw-
on jaws (OD)
Weight
(without hose pack-
age)
OSW - 40
6.0 mm - 40.0 mm
------------
2.0 kg
OSW - 80
6.0 mm - 40.0 mm
6.0 mm - 40.0 mm
3.0 kg
OSW - 115
20.0 mm - 115.0 mm
20.0 mm - 85.0 mm
4.5 kg
OSW - 170
40.0 mm - 170.0 mm
40.0 mm - 85.0 mm
6.5 kg
Guide values
Wall thickness / electrode separation
0.5 mm - 1.0 mm
0.8 mm
1.25 mm - 2.0 mm
1.3 mm
2.25 mm - 3.9 mm
1.8 mm
with cold wire feed
2.5 mm - 3.5 mm
Type
A
B
C
D
F
G max.
Ê
OSW - 40
90
40
81
7
66
120
96
OSW - 80
142
64
81
10
90
230
96
OSW - 115
200
90
81
10
130
260
96
OSW - 170
300
134
81
10
185
400
96
