ORBITEC OSW Series - Page 6

Operation Manual
"Open Frame Welding Head OSW Series"
6

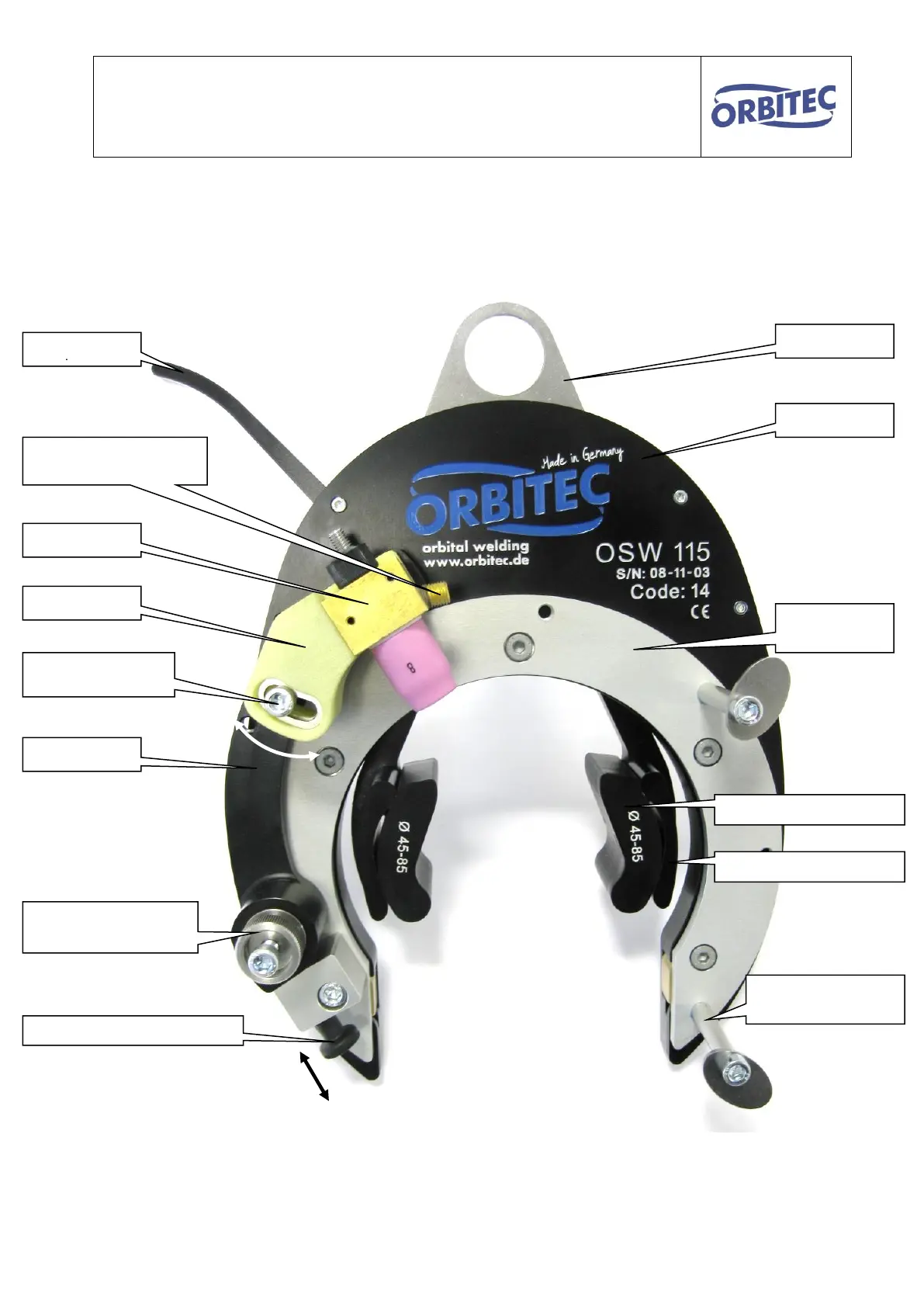

Front view with explanation of terms:
Holding ring
Body
Tool carrier
Clamping
lever
TIG torch
Torch holder
Angle lock for
torch holder
Torch arm
Knurled screw for
sideways adjustment
Lock for torch arm
Hose package
holder
Reduction jaws
Connector for gas-
cooled hose package
Clamping system
