ORBITEC OSW Series - Addendum; Water-Cooled Torch

Operation Manual
"Open Frame Welding Head OSW Series"
17
9. Addendum
9.1 . Water-cooled torch
- Cooling unit needed.
It is possible to adapt a water-cooled torch, including the associated hose package, which permits welding with
an amperage of up to 300 A. Recommended with wall thicknesses upwards of 3 mm or for series production
with a high heat load.

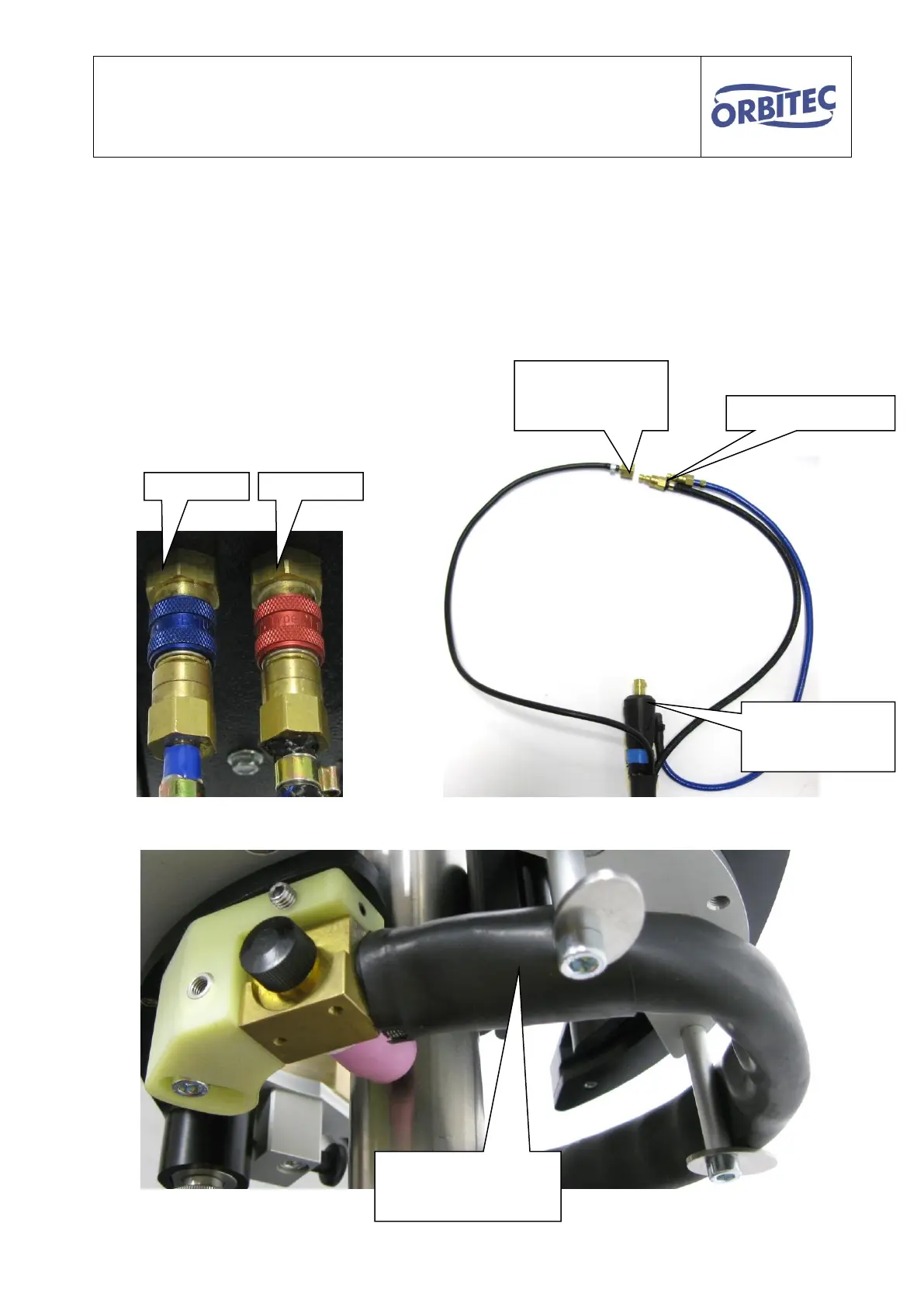

Cooling unit connection
Power connector
Electrode (minus
pole) colour: blue
Gas connector,
hose 6x1, ¼“
screw thread
Water connections
Return
Supply
Water-cooled hose
package capable of up
to 300 A load.
