Groove for wheel limit piles
A, B, C are printed on the groove of the wheel limit pile of the chassis. Wheel limit piles will be
installed by default on C (left) and A (right).
Wheel buckle
Wheel limit pile

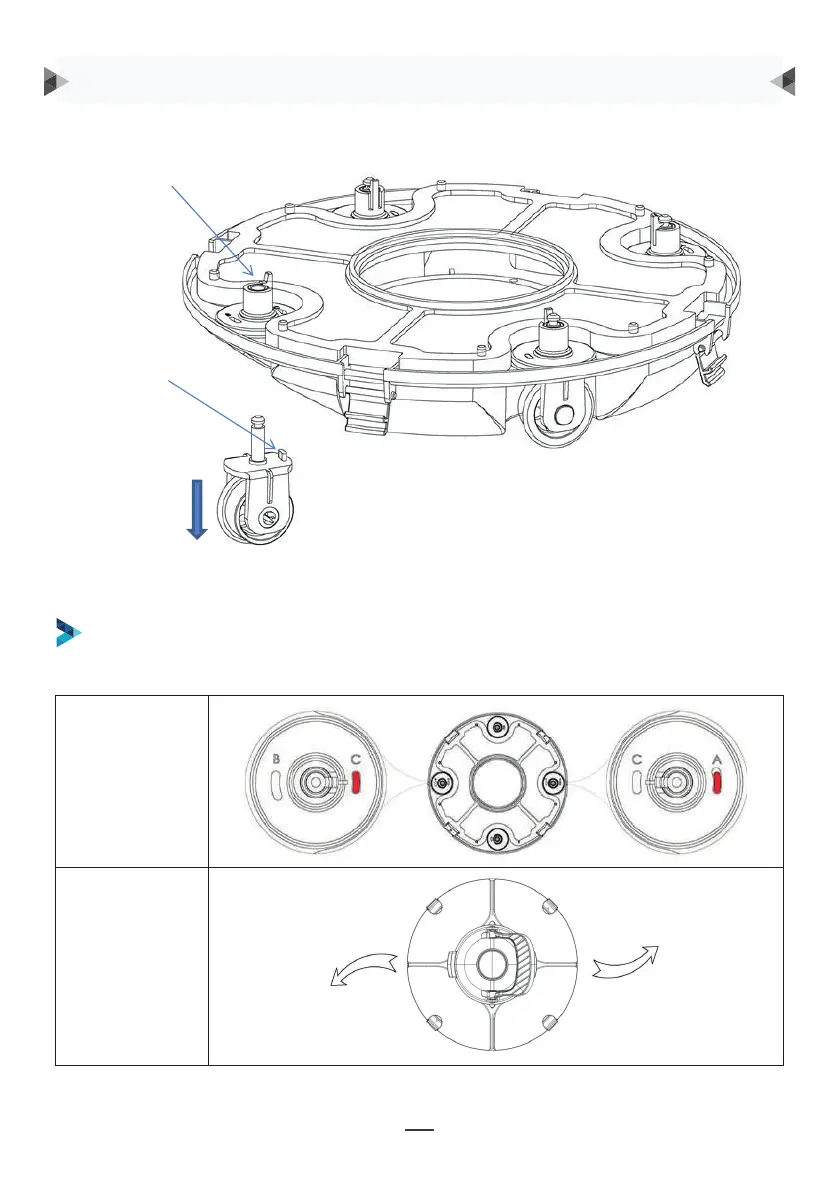

As shown in the figure, push the wheel buckle, pull down the wheel components, and remove them.
Kot kolesa
Pot
PRIPOROČAMO ŠTIRI NASTAVITVE KOLES:
Nastavitev 1: privzete nastavitve: C-A, primerna za večino bazenovpools
Zaklopka kolesa
Reža za
omejitev koles
Pritisnite zaklopko kolesa, povlecite navzdol sestavne
dele kolesa in jih odstranite, kot prikazuje slika.
Nato v ogrodje ponovno nastavite režo, s katero opredelite novo smer vožnje.
NAVODILA ZA UPORABO
8
Then re-install the limit pile into chassis to realize the different running paths.
b. Four settings for wheels are recommended:
Setting 1: default setting: B-C, for most of pools
Wheel Angle
Running path
9
Setting 2: C-A, when the turning angle is too large
Wheel
Angle
Running
path
9
Setting 2: C-A, when the turning angle is too large
Wheel
Angle
Running
path
9
Setting 2: C-A, when the turning angle is too large
Wheel
Angle
Running
path
