A. Centrally positioned MVS-15RH domestic ventilator
with humidity sensor.
B. (Self-regulating) grilles in the windows, window frames
or sliding patio door, for the supply of fresh outside air.
C. Ductwork for the extraction of stale air to the MVS-15RH.
D. Remote control for operating the MVS-15RH device.
E. CO
2
room sensor(s), (MVS-15RHB CO
2
).
F. Exhaust valves for removal of stale air.
Ensure that there is sufcient air supply by
opening windows or grilles in window frames or
sliding patio doors. Under no circumstances seal
or tape air inlet grilles.
The domestic ventilator is operated by a wireless remote
control; in automatic mode, the ventilation is controlled
on the basis of humidity levels in the home and increases
in CO
2
levels in the living areas concerned (only with opti-
onal CO
2
version). The system can be expanded at a later
date with additional remote controls / CO
2
room sensors.
If multiple remotes/sensors are used in your home, the
highest ventilation position is always given priority.

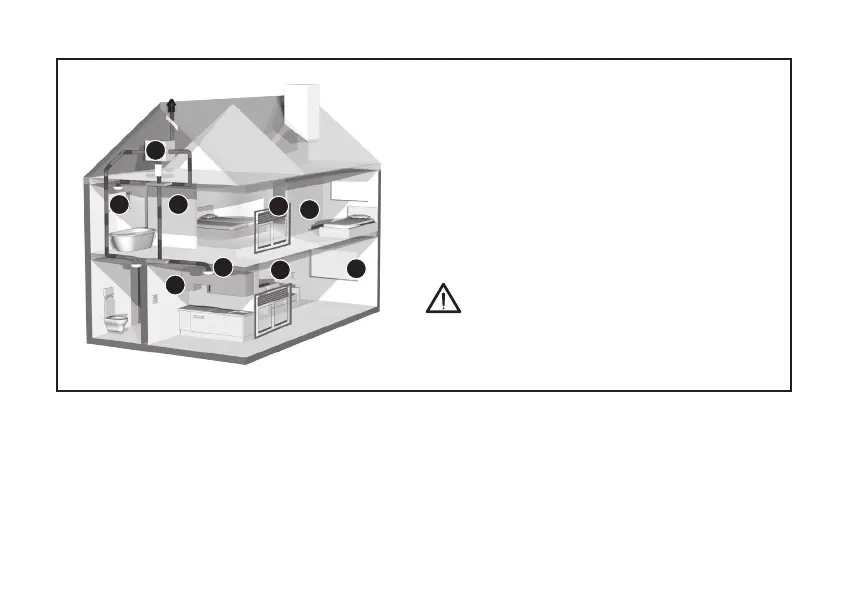

Fig. 1 Overview ventilation system MVS-15RHB (CO
2
)
