OREC FL500A - © SAT 03/03

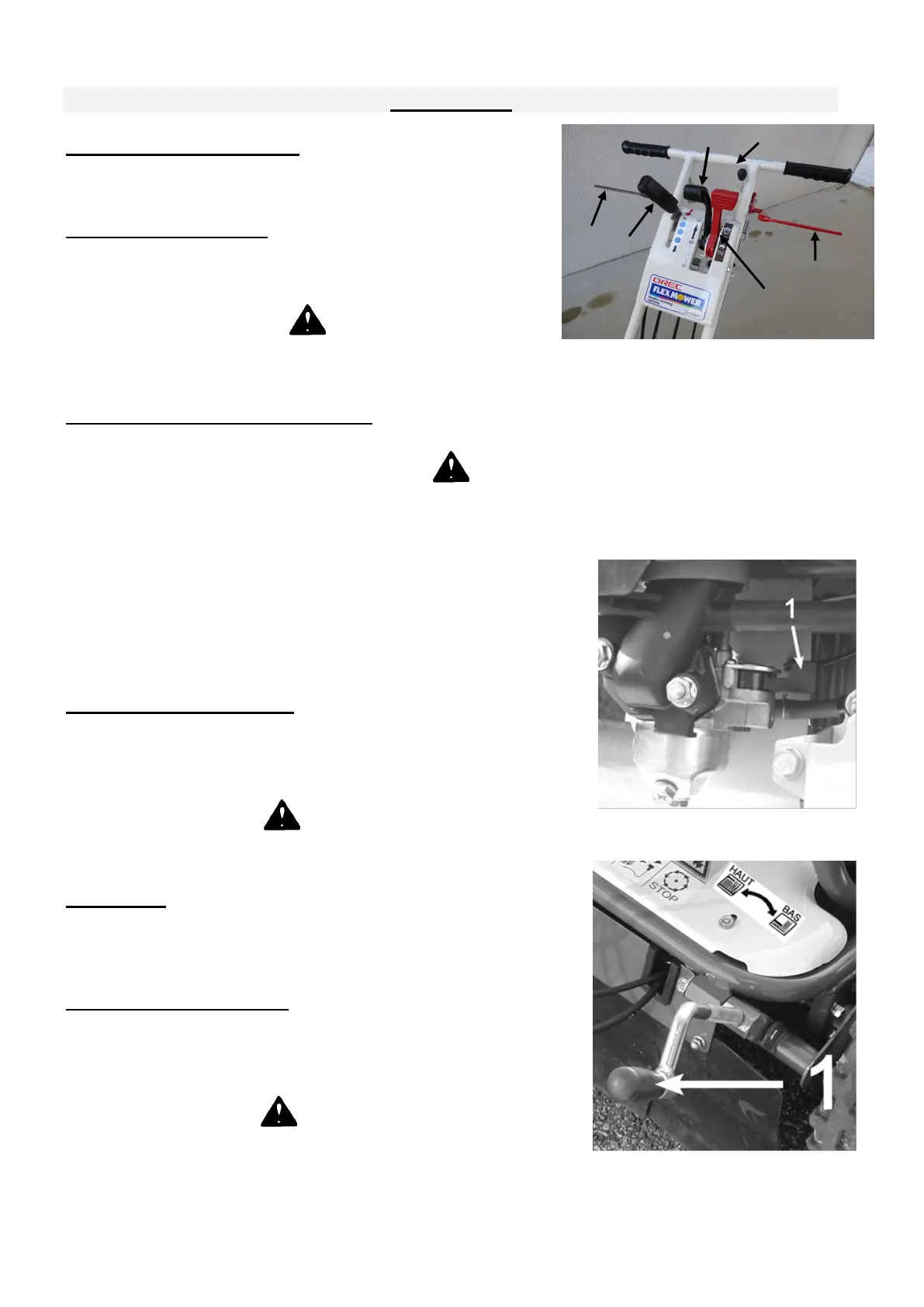

CONTROLS
DRIVING LEVER (1, FIGURE 2)
Push the lever forward to the handlebar 1, figure 2 to make the
machine moving. Release the lever, then the machine stops.
SPEED LEVER (2, FIGURE 2)
The lever allowed to select the speed ratio needed. The
machine offer 3 forward speed (1, 2, 3) and, 1 reverse speed
(R).
Never change speed while driving.
In the case of changing speed, travel lever must be released (OFF).
DIFFERENCIAL LOCK LEVER (3, FIGURE 2,)
Push the lever forward to drive the rear wheel together in slipping condition.
Never turn the machine with the differential locked.
Throttle lever and Choke lever (4, figure 2)
Push the lever completely forward to operate the choke to start cold engine, when engine has start
release it. Push the throttle lever forward to « HI » to increase
engine speed, pull the throttle lever rearward to « LO » to decrease
engine speed to idle rpm. Always operate mower at full engine
speed.
IMPORTANT
Do not use the choke when the engine is hot, it did not start
CUTTING BLADE CLUTCH LEVER
Cutting blade Clutch lever make the engine drive the blade to mow.
Push the 2 action lever (6, figure 2), then pull the blade clutch lever
(5, figure 2) rearward to the handlebar to make the blade turning.
Release the lever, then the blade stops.
WARNING
Never try to start or stop the engine with blade engaged.
FUEL COCK
The fuel cock (1, Figure 3) is closed when machine is not use. Fuel
cock is closed pushed rearward and open pushed forward.
HEIGHT OF CUT CONTROL
Height of cut can be setted by turning the crank-lever 1 Figure 4,
clockwise to increase the height of cut and anti- clockwise decrease
the height of cut.
WARNING
Always perform this adjustment engine off and sparking plug
cover unplug
When cutting in low position, power needed and thrown objects are more important. Cutting
low can cause damage to the machine and injury.
