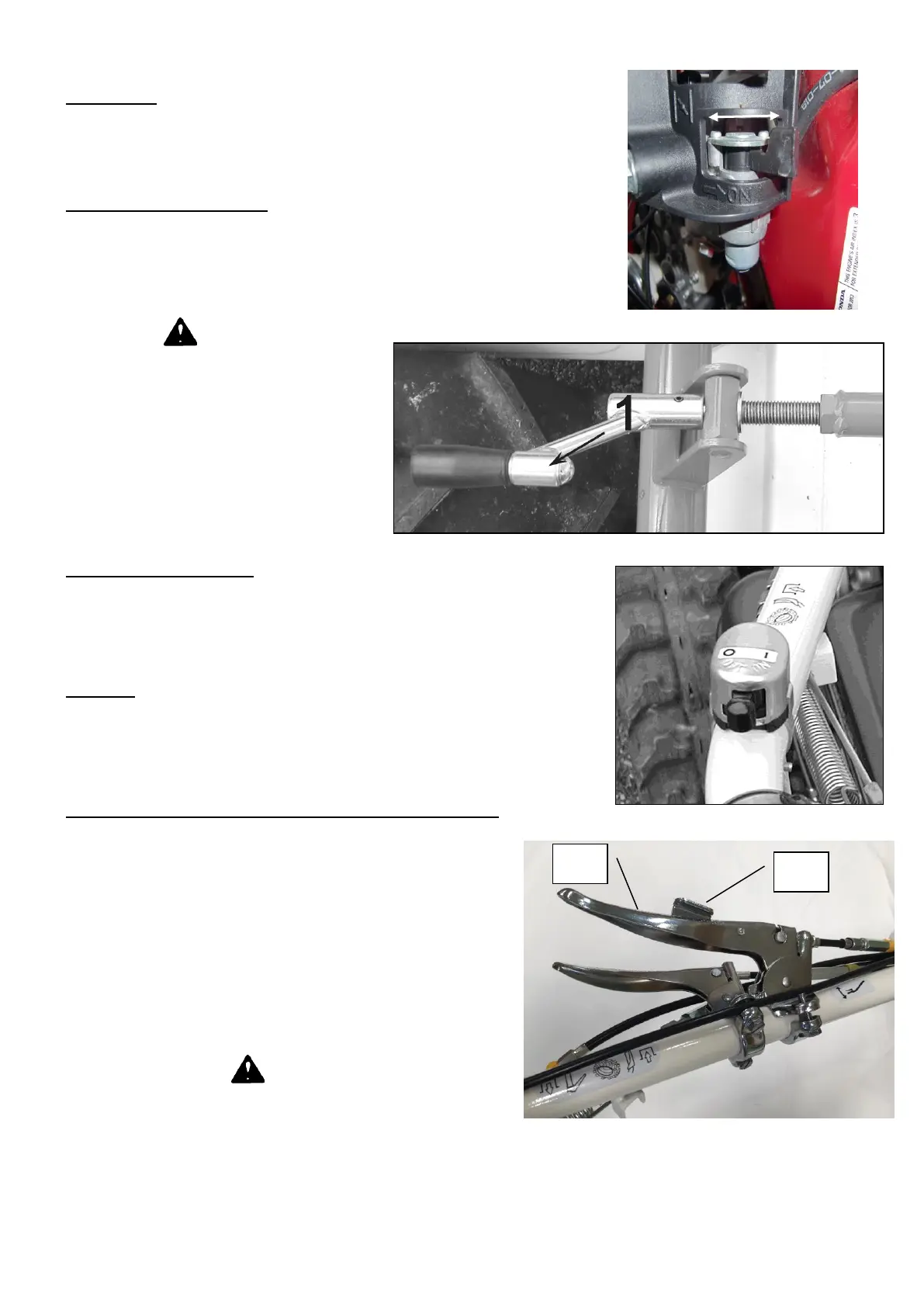

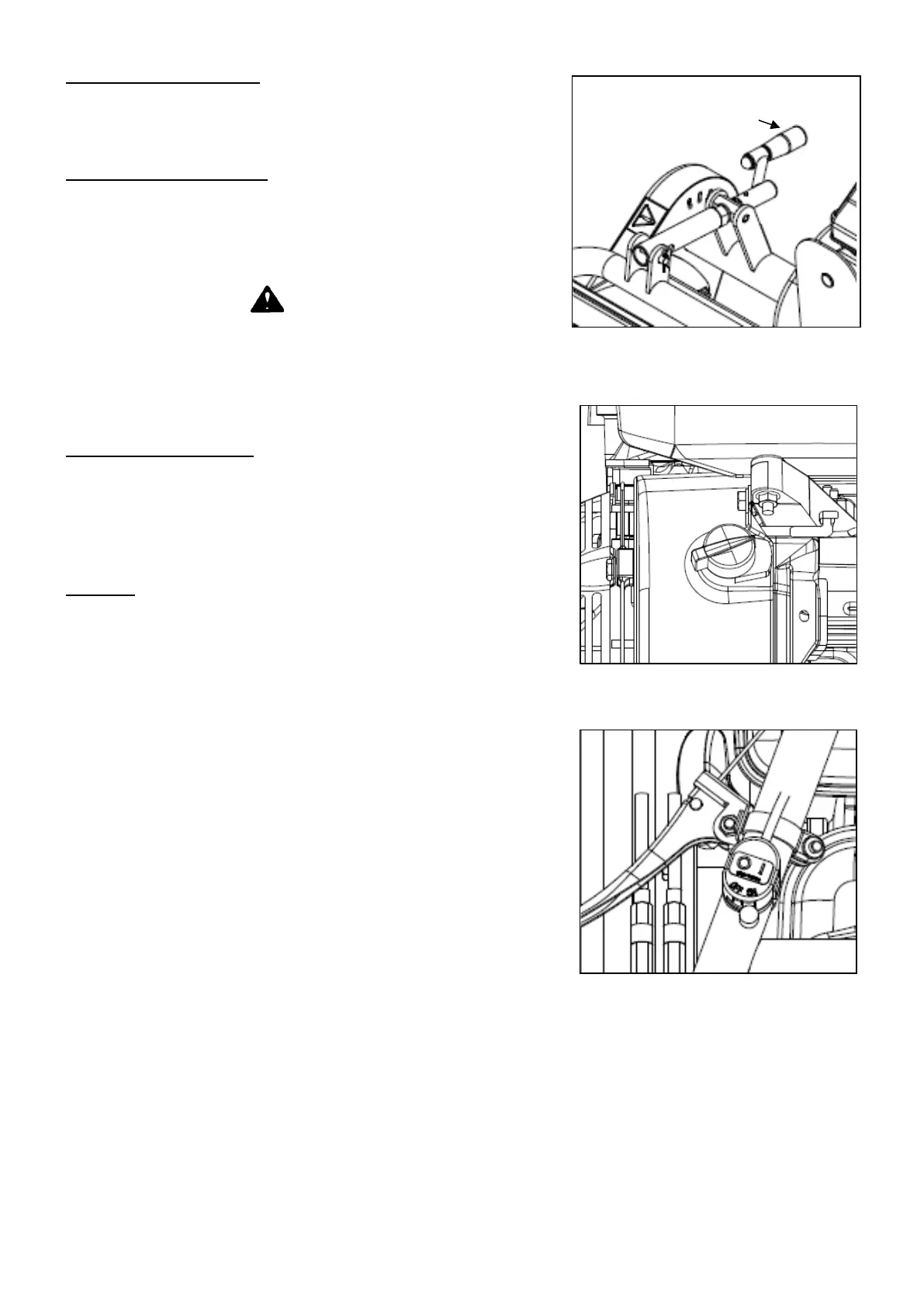

FUEL COCK
The fuel cock (1, Figure 4) is closed when machine is not in use. Push
the lever to 2 to open fuel cock and to 3 to close cock.
HEIGHT OF CUT CONTROL
Height of cut can be setted by turning the crank-lever (1,Figure 5)
clockwise to increase the height of cut and anti- clockwise to decrease
the height of cut.
WARNING
Always perform this adjustment
engine off and sparking plug cover
unplug
When cutting in low position, power
needed and thrown objects are more
important. Cutting low can cause
damage to the machine and injury.
ENGINE ON/OFF SWITCH
This switch is located on the left side of the handlebar. It allows to run
the engine when positionned on « ON » and stop the engine when
positionned on “OFF”.(Figure 6) Use this switch to start or stop the
engine.
ENGINE :
Refer to engine manual delivered with the machine.
CRAWLER LOCK LEVER (OPTIONAL) (HRC MODEL ONLY)
This lever is located on the left side of handlebar.
It is used to function for uplift prevention of machine by
locking both of crawlers.
When the crawler lock kit is installed, crawler is locked.
Grip the lever (1, Figure 7) until it clicks into place and is
locked by lever (2, Figure 7). In this moment, crawler is
unlocked.
Grip lever (1, Figure 7) again with lever (2, Figure 7) and
release it. Then crawler kit pin should be fit into one
position. Crawler should be locked.
CAUTION
Make sure that the crawler kit pin is set into the hole when
machine is used with crawler lock kit.
When crawler is locked, turning radius would be slightly bigger than
normal operation.
