11
WARNING
Do not let park the machine in slopes, do not move the travel lever when parking brake is
locked, this will damage the transmission. When leaving the machine be sure parking brake is
locked, cutting blades are in off position and ignition key is removed.

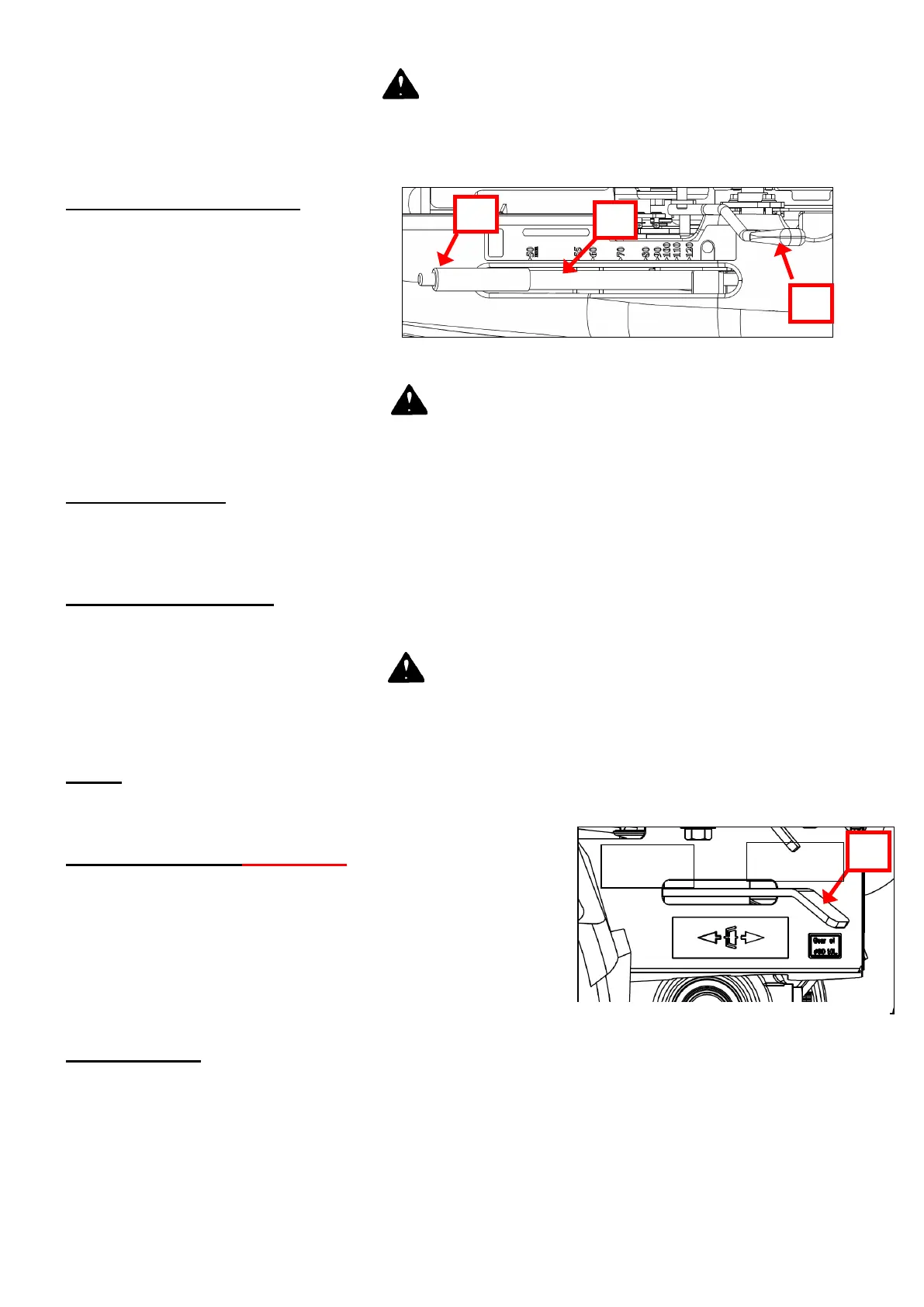

HEIGHT OF CUT CONTROL LEVER
The highest position of the lever (1, Figure
7) match to the transport position.
You can adjust the cutting height freely by
pressing the push button (2) and the lever
(1). When the lever position is high, the
height of cut is high, when lever position is
low, the height of cut is low.
WARNING
When cutting height is in low position, the machine needs stronger power, and spread more thrown
objects. Cutting low can cause damage to the machine and injury.
BLADE CLUTCH LEVER
Blade Clutch lever (3, Figure 7) make the engine drive the blade to mow. Pushing the lever forward
make the blade turning. Pulling the lever on reverse to stop the blade.
When using blade clutch lever, check that height of cut lever is in mowing position.
MOWING DECK SIDE SHIELDS
The mowing deck side shields should be unlock only to allow the machine to be loaded on a truck or a
trailer. This shields should be locked for mowing.
DANGER
The mowing deck side shields should be locked by bolt and nuts when mowing with the
machine. Check if guards and shield are locked by bolt and nuts before mowing with the
machine. If they are not locked, thrown object will cause injury and damage.
ENGINE
The mower is delivered with the owner’s manual of the engine. Read the engine manual before using
the machine.
DRIVING CLUTCH LEVER (RM830 ONLY)
This lever (1, Fig 8) is used when the operator needs to move the
machine without the engine. The lever is located at the right front
side of operator sheet.
Put down the lever then move to neutral position « N » (Figure 8).
When machine pushed, the brake pedal must be released.
SAFETY SWITCHES
The OREC mower is equipped with safety switches :
 To start the engine, followin 3 points need to be satisfied
- An operartor is seated
- Height of cut lever is in transport position.
- Blade clutch lever is disengaged.
 When the engine is running, the operator leave the seat, the engine is cut off.
2
3
1
Figure 7
Figure 8
1
ON
OFF
