Oreck Air 16 - Control Section Board Servicing

6. Control Section-Control Board
Before removing this board see
the picture at the bottom of this
page and make note of the 3
black buttons. These are loose
and easy to lose. The switch
actuators fit into these when
reassembled.

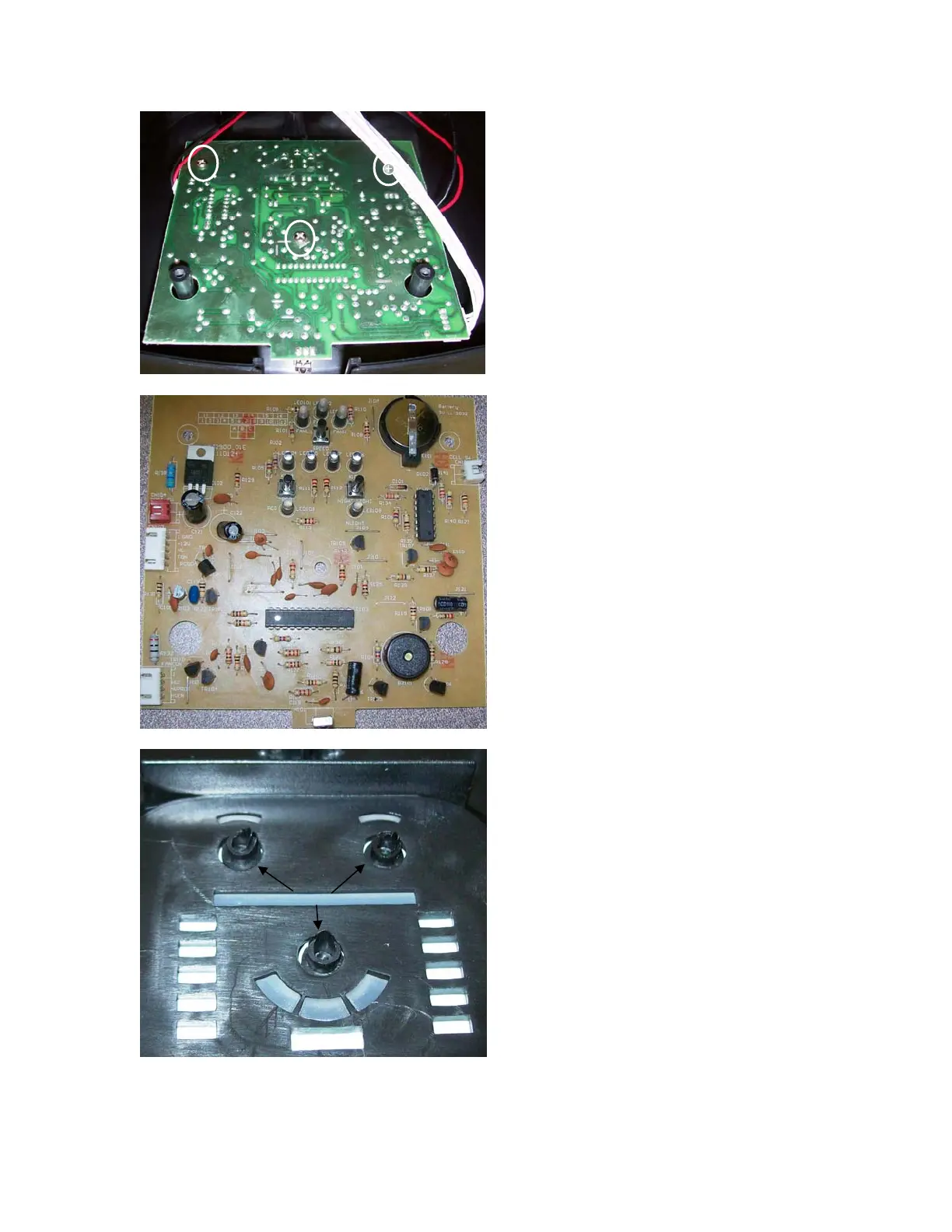

Unfasten the 3 screws indicated to
remove.
S
p
eed LEDs
Power & Speed Switch
Check Collector Cell LEDs
Nite Lite Switch
& LED
PCO Switch
& LED
Remote Signal Sensor
Nite Lite
PCO
PCO
Buttons
Power & Speed
12
