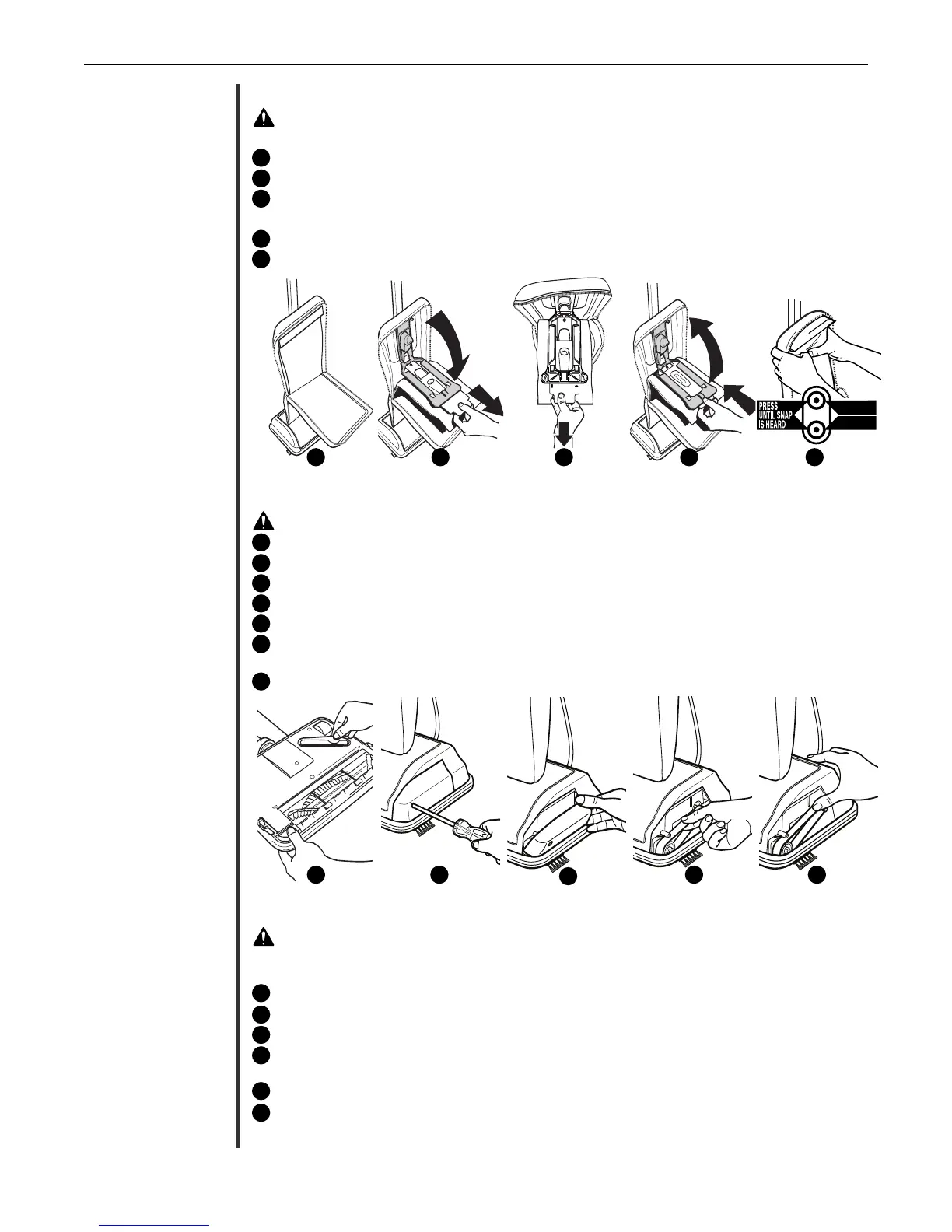

Maintenance.
WARNING: Unplug cord from electrical outlet before servicing.
B
AG REMOVAL:
Unzip outer bag completely.
Pull bag cardboard collar to release bag dock door from connector. Bag dock door will hinge downward.
Gently pull bag cardboard collar upward out of the bag dock. Saniseal
®
dust seal will close automatically.
BAG INSTALLATION:
S
lide the cardboard collar completely onto bag dock door.
Firmly push bag dock door with both thumbs on indication point until it snaps.
Replacing Disposable Odor Fighting Dust Bag
WARNING: Unplug cord from electrical outlet before servicing.
Remove the replacement belt from the storage channel.
Remove the door by removing the hold down screw located on side of power head.
Fold door away from the power head and lift it away.
Remove the belt from the motor drive shaft and brush roll pulley.
Loop the new belt over the brush roll pulley. Place the opposite end of the belt on the motor drive shaft.
Replace the door by placing the bottom tab on door into slots located inside power head and pressing the
door closed.
Replace the hold down screw and tighten.
Replacing Wor
n Belt
6
7
8
9
10
11
12
13
14
15
13
12
WARNING: Unplug cord from electrical outlet before servicing.
T
o deter
mine if the brushroll is worn, place a firm straight edge across the nozzle opening. If brushroll bristles do
not extend beyond baseplate, brushroll should be adjusted.
Remove the baseplate by removing 5 screws. Then, remove the belt and brushroll from the housing.
Rotate both bearing assemblies at ends or brushroll to show “OLD” and replace in the holding channels in the housing.
Note: The bearing assembly setting market “OLD” has no ribs on the top of the assembly.
The one mark
ed “NEW” has several ribs. When rotating bearings, make sure both bearing assembly settings are
the same and face up when replacing the brushroll.
Reassemble the belt.
Reassemble the baseplate.
Adjusting or Replacing Brushroll
16
17
18
19
15
16

ENFONCEZ JUSQUENFONCEZ JUSQU’À’À
ENTENDRE UN BRUITENTENDRE UN BRUIT
P
RESIONE HASTPRESIONE
H
ASTAA
E
SCUCHAR UN ESCUCHAR
U
N
CHASQUIDO DE SUJECICHASQUIDO DE SUJECIÓÓNN

ENFONCEZ JUSQU’À
ENTENDRE UN BRUIT
P
RESIONE HASTA
E
SCUCHAR UN
CHASQUIDO DE SUJECIÓN
6 7 8 8 10
1
1
12
13
14 15
