Standard Fastener Hardware Listing
# PART FASTENER FASTENER FASTENER QTY TORQUE QTY
IS USED ON PART NO. DESCRIPTION REQ’D RANGE PER
(in/lb) PKG.
67 Base Plate, Motor, Intake/ 03-00476-01M #8 -10 x 3/4” 6/2/6 13 - 16 100
Pivot, Side Door, Carrying 1/1
Handle Clamp, Fan Shroud 2
68 C Handle (small head) 03-00456-01M #8 - 6 x 3/4” 6 13 - 16 100
C-Handle 03-00476-01M #8 - 10 x 3/4” 6 13 - 16 100
69 Edge Brush 03-00626-01M #6 - 20 X 7/16” 2 5 - 10 100
70 Head Light Cover 03-00589-01M #6 x 1” PLT 30 2 8 - 12 100
71 Squeegee 03796M #8 x .62 PLT 30 2 13 - 16 100
72
Bag Clip Clamp (Type 1-4 Only)
03-00402-01M #8 x 1.5” PLT 30 1 8 - 12 100
73 Fan Nut 03-00448-01M 1/4” - 32 (Left Hand) 1 18 - 20 100
74 Washer, Wheel, Rear Axle 03-00590-01M 2 100 NLA NLA NLA
75 Washer, Wheel, Front Axle 03-00591-01M 2 100 NLA NLA NLA
76 Washer, Thrust (Fan) 03-00479-01M 1 100
77 Washer, Lock, External Tooth 03-00480-01M 1 100
82 Detent 03-00475-01M #7 x 3/8” 1 6 - 8 100
84 Rivet 03-00453-01M 1 100
85 Pushnut 03-00636-01M 1 100

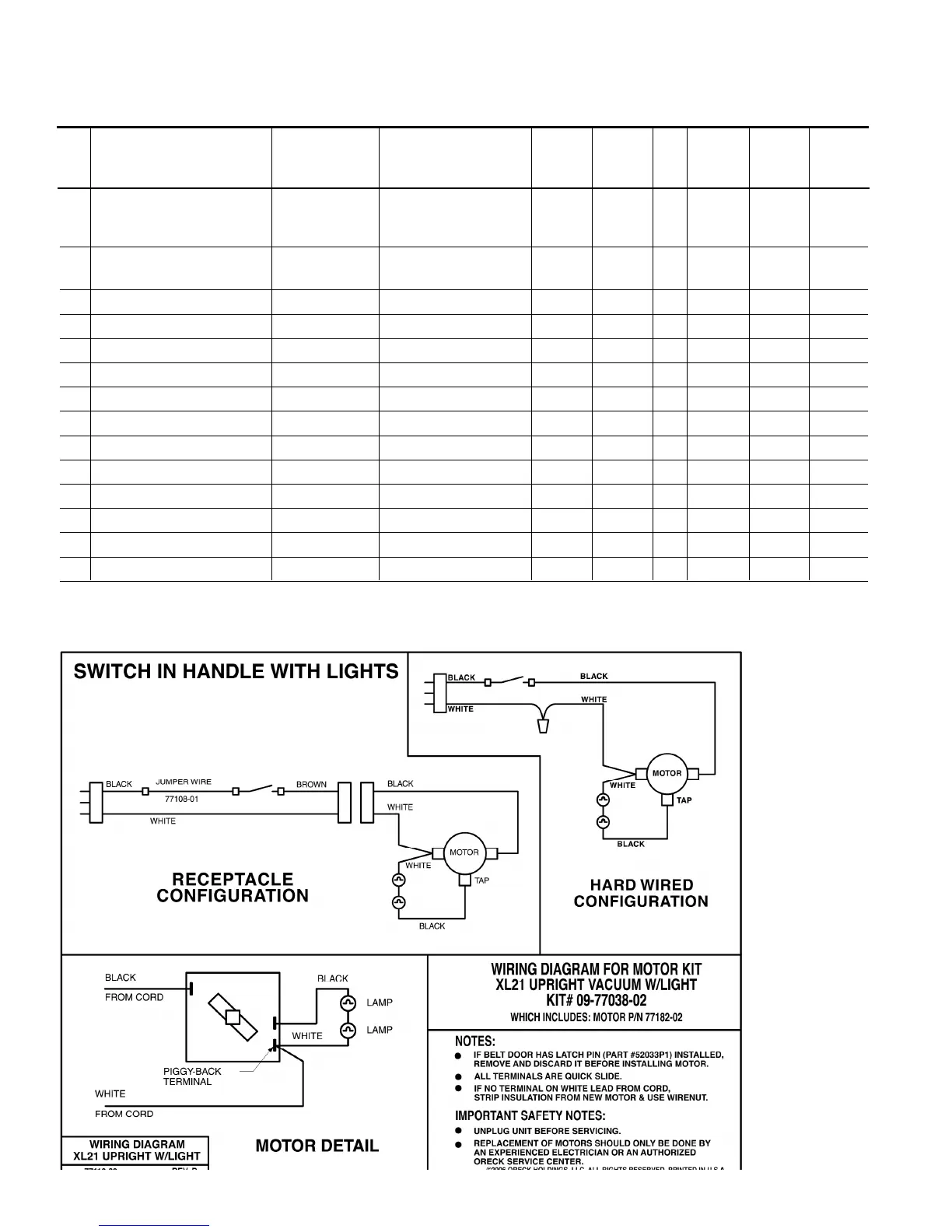

Wiring Diagram
