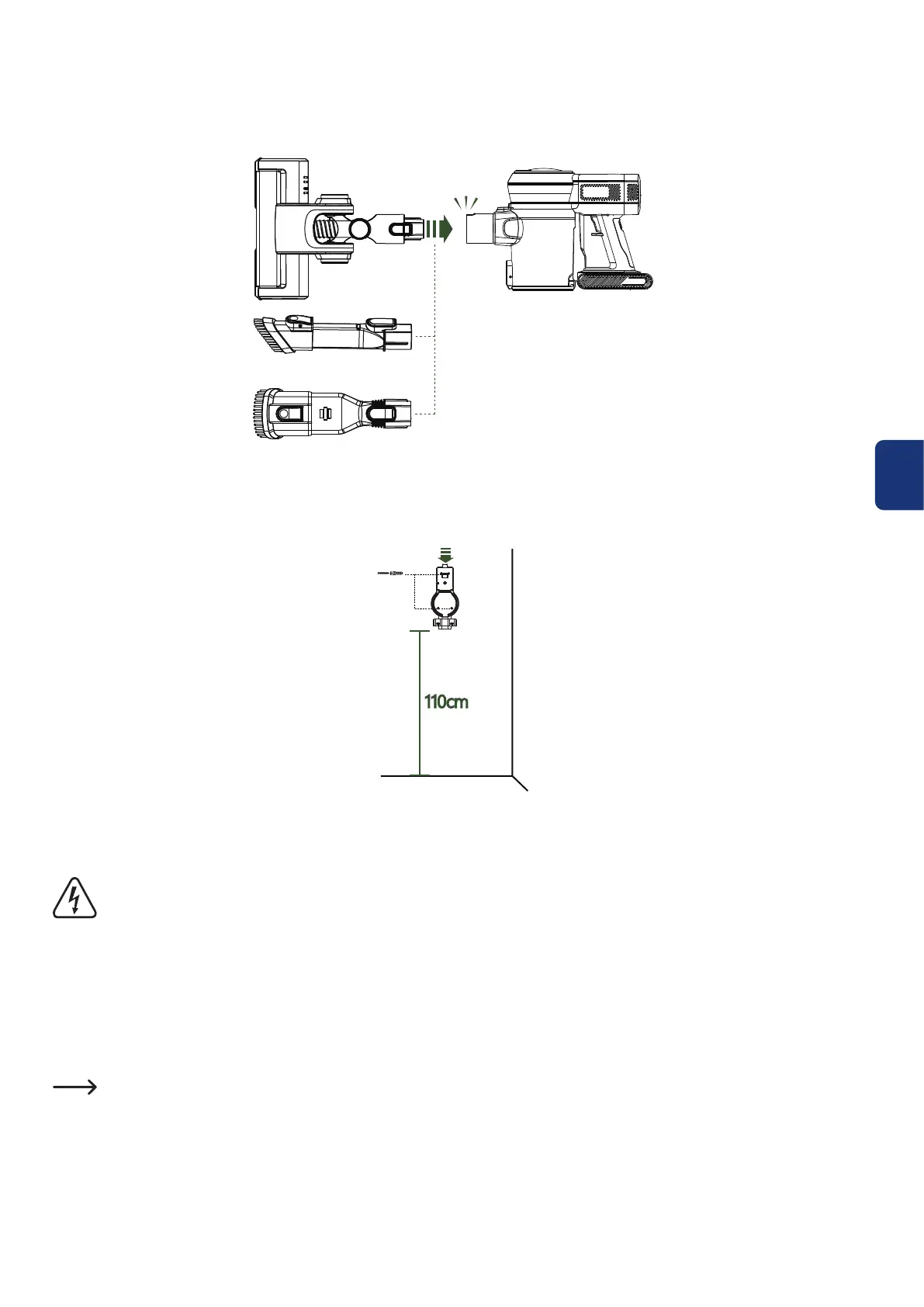

b) For short-reach cleaning
• Press the wand release button (4) to disconnect wand from the handheld vacuum.
• Attach desired cleaning tool to the handheld vacuum.
Click
c) Install wall-mounted charging dock
• Locate the desired location for the charging dock (16). Be sure it is near an outlet.
Recommended installation height is 110 cm.
• Place the charging dock (16) on the wall at the desired height. Mark the screw hole locations.
Drillholesandhammerthewallplugs(23)intotheholes,thenxthechargingdock(16)
securely to the wall with screws.
Before drilling make sure there are no gas, water or electrical cables and wires behind the
mounting area.
6. Operation
a) Charging
 Fullychargethebatterybeforerstuse.
• First, install the battery pack. Push the battery pack into the slot on the back of the handheld
vacuum until it clicks into place.
To remove, slide down the battery pack release button (10) and pull the battery pack out from
the handheld vacuum.
