BTP-R580 USER MANUAL
- 31 -

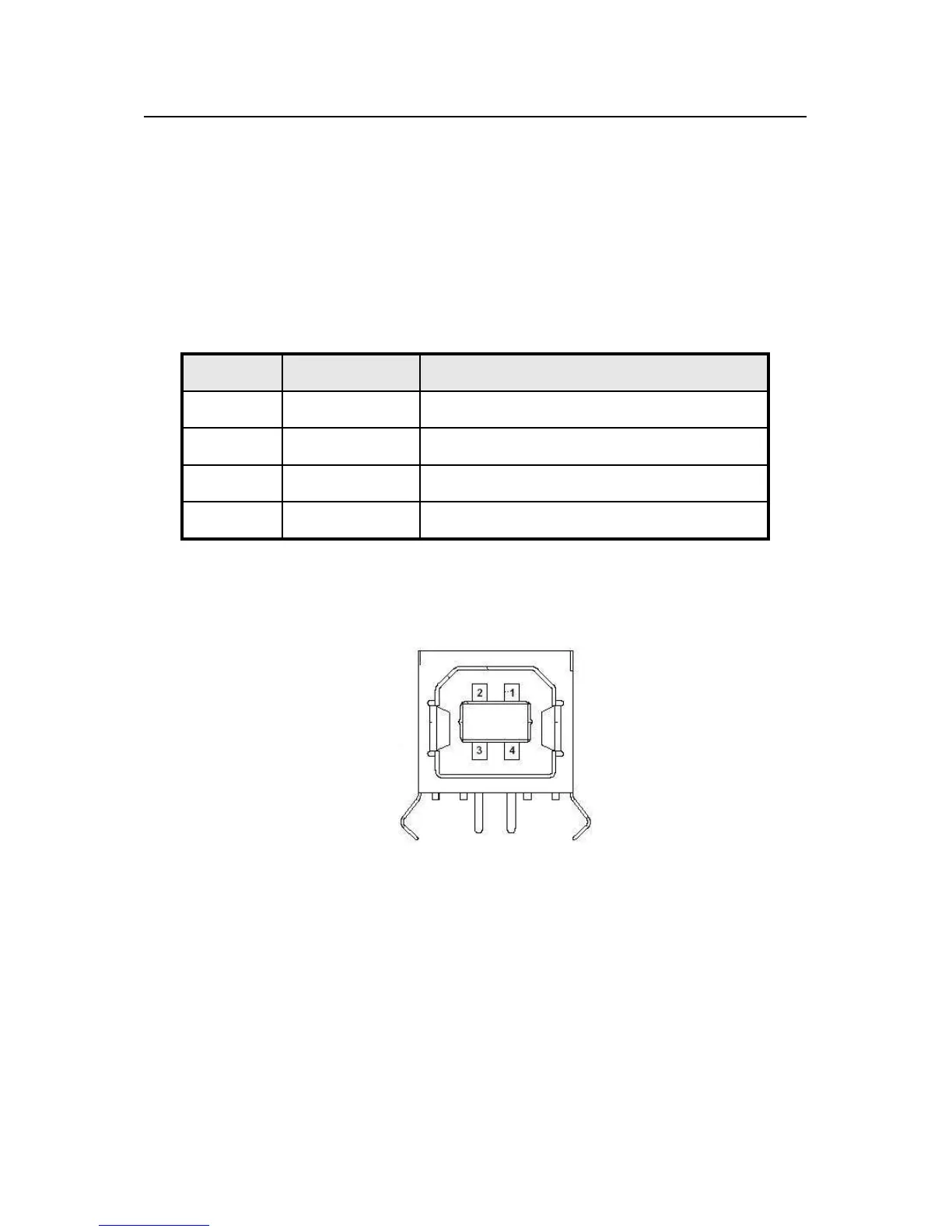

6.3 USB interface
Parameters
Data transmission: Support USB1.1 protocol
Connector (Printer side): USB B type socket. Support and
pass USB HUB
Interface signal definition and functions
Pin No. Signal Description
1 VBUS +5V
2 DATA- Printer data transmit line minus
3 DATA+ Printer data transmit line plus
4 GND Ground
Table 6.3-1
Interface connector
Fig. 6.3-2 USB “B” type connector
6.4 Ethernet interface
Feature
Supports 10BASE-T communication
Compatible with Ethernet II standard frame type
