Oriental motor BLE2D60-C - Installation Variations; Physical Dimensions

Installing
13
z

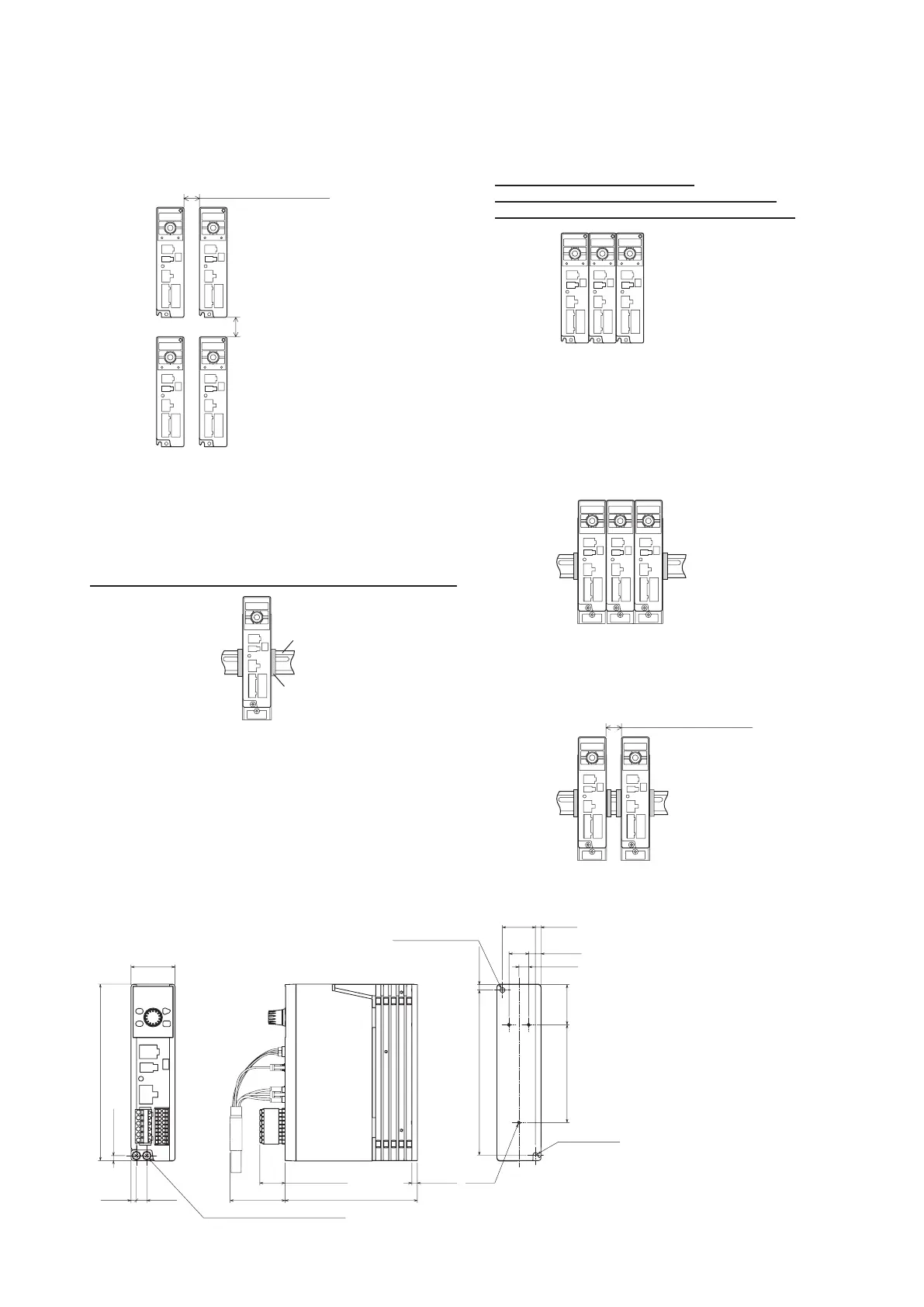

When two or more drivers are installed
When two or more drivers are installed side by side, provide 20mm
(0.79 in.) and 25 mm (0.98 in.) clearances in the horizontal and
vertical directions, respectively.
20 mm (0.79 in.) or more
in horizontal direction
25 mm (0.98 in.) or mor
e
in vertical direction
z
When drivers are installed in a close contact state
Install drivers to a at metal plate oering high heat
conductivity [corresponding to an aluminum plate of
350×350×2 mm (13.78x13.78x0.08 in.) or larger].
Operating ambient temperature
30 W, 60 W, 120 W: 0 to +50 °C (+32 to +122 °F)
200 W, 300 W, 400 W : 0 to +40 °C (+32 to +104 °F)

When a driver is installed to a DIN rail
Use the DIN rail mounting plate
MADP02
(sold separately), and
install it to a 35 mm (1.38 in.) wide DIN rail.
After installing to the DIN rail, secure the both sides of the driver
with end plates that the customer provides.
Refer to "
MADP02
handling guideline" for installation method.
Operating ambient temperature: 0 to +40°C (+32 to +104 °F)
End plate
DIN rail
z
When drivers are installed in a close contact state
*
*
300 W type drivers of single-phase 200-240 VAC cannot be
installed in a close contact state.
When installing two or more drivers, provide a clearance of
20mm (0.79 in.) between them in the horizontal direction.
20 mm (0.79 in.) or more
in horizontal direction

Dimensions
[Unit: mm (in.)]
Mass: 0.8 kg (1.76 lb.)
40
(
1.57
)
160
(
6.30
)
4.5
(
0.18
)
4.8
(
0.19
)
9.5
(
0.37
)
120
(
4.72
)[
50
(1.97)]
5
(
0.20
)
23
(
0.91
)
max.
150
(
5.91
)
5
(
0.20
)
18
(0.71)
11
(
0.43
)
9
(
0.35
)
89
(
3.50
)
36.5
(
1.44
)
5
(
0.20
)
30
(
1.18
)
R2.25
(
0.089
)
3×M3
ϕ
4.5
(ϕ
0.177
)
Thru
Protective Earth Terminal2×M4
