Oriental motor BLE2D60-C - EMC Wiring Examples and Precautions

Regulations and standards
50


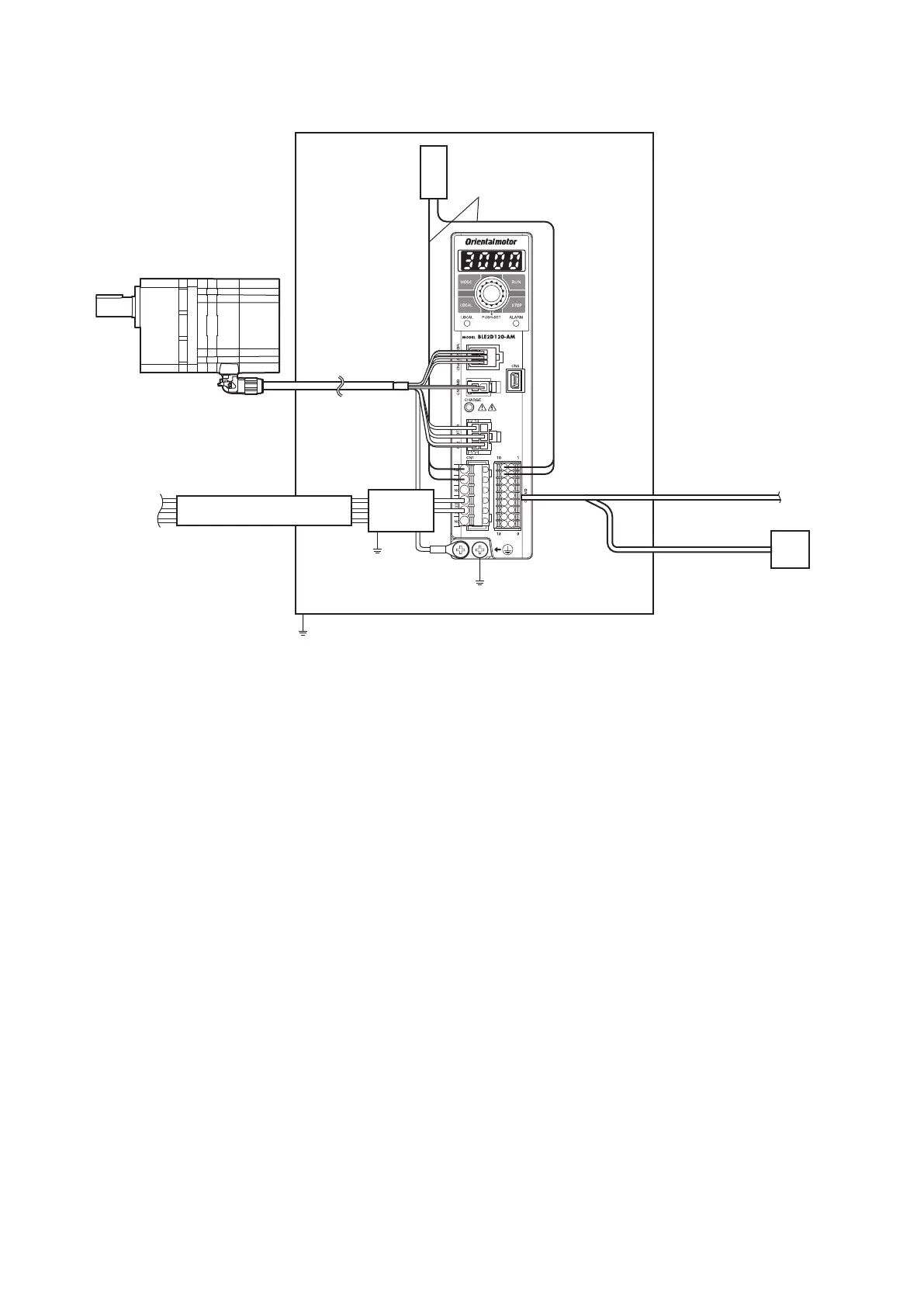

Example of installation and wiring
Connection cable∗1
AC power supply
L
N
PE
Power supply cable
[2 m (6.6 ft.)]
External
potentiometer
Ground plate (aluminum plate)
I/O signals cable
[2 m (6.6 ft.)]
External potentiometer
cable [2 m (6.6 ft.)]
Grounding
Grounding
Regeneration unit lead wire
∗2
[0.3 m (0.98 ft.)]
Regeneration unit
RGB100
Mains
lter
Grounding
*1
The connection cables for up to 20.5 m (67.2 ft.) have been evaluated.
*2
Non-shielded cable

Precautions about static electricity
Static electricity may cause damage to the driver.
Be sure to ground the product in order to prevent electric shock or product damage by static electricity.
Except when operating the operation panel on the driver, do not approach or touch the driver while the power is on.
