18
VCCX2 Controller Technical Guide

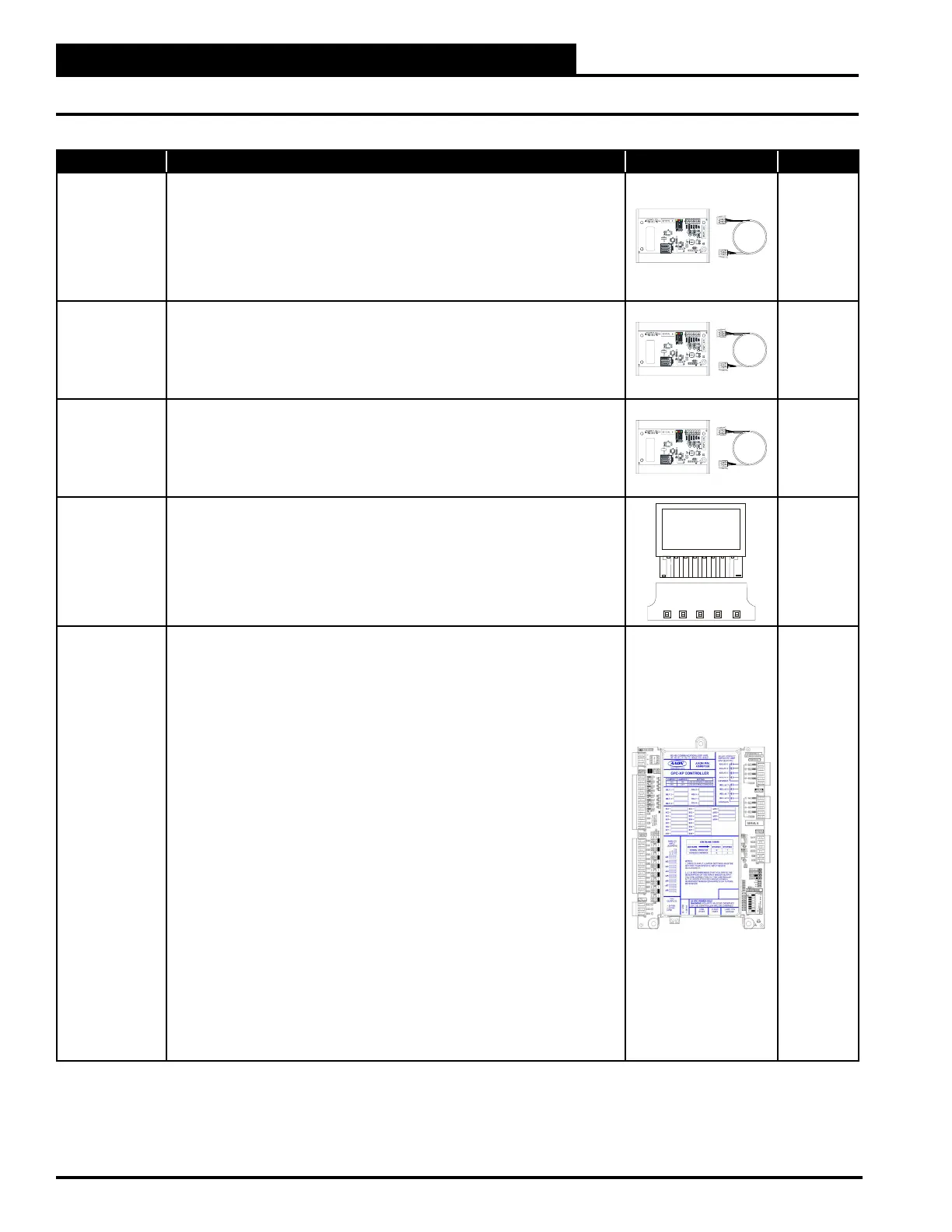

PART NO. PART DESCRIPTION ILLUSTRATION PAGE NO.
ASM01697 E-BUS Outdoor Air Temperature and Humidity Sensor
Emulator Board with 1.5 ft. E-BUS Cable
The E-BUS Outdoor Air Temperature and Humidity Sensor Emulator Board
allows the use of third-party analog outdoor air temperature and humidity
sensors to emulate the AAON E-BUS combination Outdoor Air Temperature and
Humidity Sensor. Includes: E-BUS Sensor Emulator Board and 1.5 ft. E-BUS
cable.
E-BUS RETURN AIR CO2
SENSOR EMULATION BOARD
OE365-07-EBSE
N/A
ASM01622 E-BUS Space CO
2
Sensor Emulator Board with 1.5 ft.
E-BUS Cable
The E-BUS Space CO
2
Sensor Emulator Board allows the use of a third-party
analog CO
2
sensor to emulate the AAON E-BUS Wall-Mounted Space CO
2
Sensor. Includes: E-BUS Sensor Emulator Board and 1.5 ft. E-BUS cable.
E-BUS RETURN AIR CO2
SENSOR EMULATION BOARD
OE365-07-EBSE
N/A
ASM01623 E-BUS Return Air CO
2
Sensor Emulator Board with 1.5 ft.
E-BUS Cable
The E-BUS Return Air CO
2
Sensor Emulator Board allows the use of a third-party
analog CO
2
sensor to emulate the AAON E-BUS Duct-Mounted CO
2
Sensor.
Includes: E-BUS Sensor Emulator Board and 1.5 ft. E-BUS cable.
E-BUS RETURN AIR CO2
SENSOR EMULATION BOARD
OE365-07-EBSE
N/A
ASM01907 Communication Surge Protector Kit
Used to isolate power surges to the communications wiring caused by lightning
strikes for communications wiring loops that are routed outdoors or between
buildings. One kit is required at each point where the communications wiring
leaves or enters a building. Includes: Communication Bus Surge Protector, Base
Module, and Mounting/Wiring Instructions.
N/A
ASM01868 GPC-XP Controller
The GPC-XP Controller is used for controlling equipment or processes that
cannot be controlled using a standard HVAC controller. Prism 2 computer
front end software is used to interface with the GPC-XP Controller functions.
The GPC-XP Controller provides the exibility to control, schedule, and/or
monitor equipment such as unit heaters, exhaust fans, motorized louvers, and
other mechanical equipment. In addition, the GPC-XP provides Lead/Lag start
capabilities.
The GPC-XP has eight congurable analog inputs which will accept signals from
thermistor temperature sensors, 4-20 mA or 0-5 VDC or 0-10 VDC transmitters.
Custom formulas created by available math functions and operators can be used
in conjunction with the analog inputs to create a calculated value to be used and
displayed for a specic analog input.
The inputs are set for the desired scaling by means of a jumper bar. An additional
input is available for communicating sensors available from AAON Controls.
The GPC-XP also supports eight wet contact binary inputs which can be
congured for either normally open or normally closed operation. The GPC-XP
has eight relay outputs for on/o󰀨 control and four analog outputs for proportional
control signals.
Highest/lowest/average of the analog input values can be used in the GPC-XP
logic or broadcast to other controllers on the control system loop. The GPC-
XP also has eight separate schedules which can be assigned to any input or
output for operational control or alarm recognition based on time of day. These
schedules can also be congured to broadcast to other AAON HVAC equipment
installed on the control system loop. Includes: GPC-XP Controller.
See the
GPC-XP
Controller
Technical
Guide
OVERVIEW
Parts and Descriptions
