ORION 200 CRX
CROSSOVER
+ 15V 'Phantom Power' (+15V & -15V) is supplied to all
-15V “rtf \\ ORION accessory modules by the amplifier through the
LEFT—— R lGHT DIN cable. (When ORION amplifiers are not used, the
>J \AUDtO ORION PPS 100 Phantom Power Supply is required.)
DIN CONNECTOR GRO UND
SUBWOOFERS
LOWS AMPLIFIER
ORION 300 PRO
PRE AMP EQUALIZER
or
ORION 600 EQM
EQUALIZER
or
ORION 500 PMQ
PARAMETRIC
EQUALIZER
ORION 400 BDG
BRIDGING
MODULE
Orange(+)
DIN Cable
Black/Orange
Black/Vellow
High
Freq
Output
/
Low
Freq
Output
DIN Cable
X Summed
Mono
Output
HIGHS AMPLIFIER
Select Passive Crossovers
per Speaker Manufacturer's
Specifications 1
Yel low{+)
MID/HIGH
FREQUENCY
SPEAKERS
Black/Yel low(-)
Tweeter
lidrange

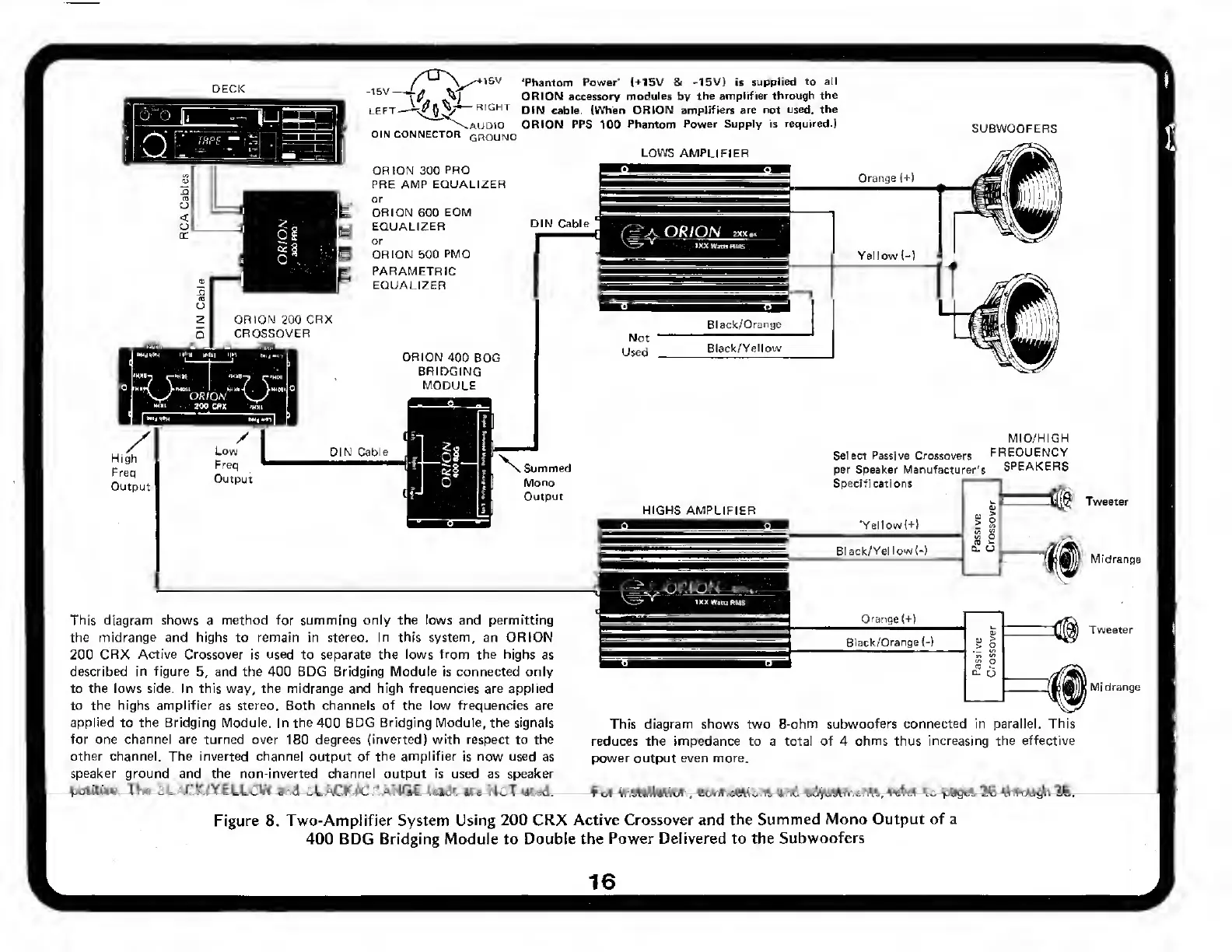

This diagram shows a method for summing only the lows and permitting
the midrange and highs to remain in stereo. In this system, an ORION
200 CRX Active Crossover is used to separate the lows from the highs as
described in figure 5, and the 400 BDG Bridging Module is connected only
to the lows side. In this way, the midrange and high frequencies are applied
to the highs amplifier as stereo. Both channels of the low frequencies are
applied to the Bridging Module. In the 400 BDG Bridging Module, the signals
for one channel are turned over 180 degrees (inverted) with respect to the
other channel. The inverted channel output of the amplifier is now used as
speaker ground and the non-inverted channel output is used as speaker
positive. The BLACK/YELLOW and BLACK/ORANGE leads are NOT used.
Orange (+)
Black/Orange {-)
This diagram shows two 8-ohm subwoofers connected in parallel. This
reduces the impedance to a total of 4 ohms thus increasing the effective
power output even more.
For installation, connections and adjustments, refer to pages 26 through 35.
Midrange
Figure 8. Two-Amplifier System Using 200 CRX Active Crossover and the Summed Mono Output of a
400 BDG Bridging Module to Double the Power Delivered to the Subwoofers
16
