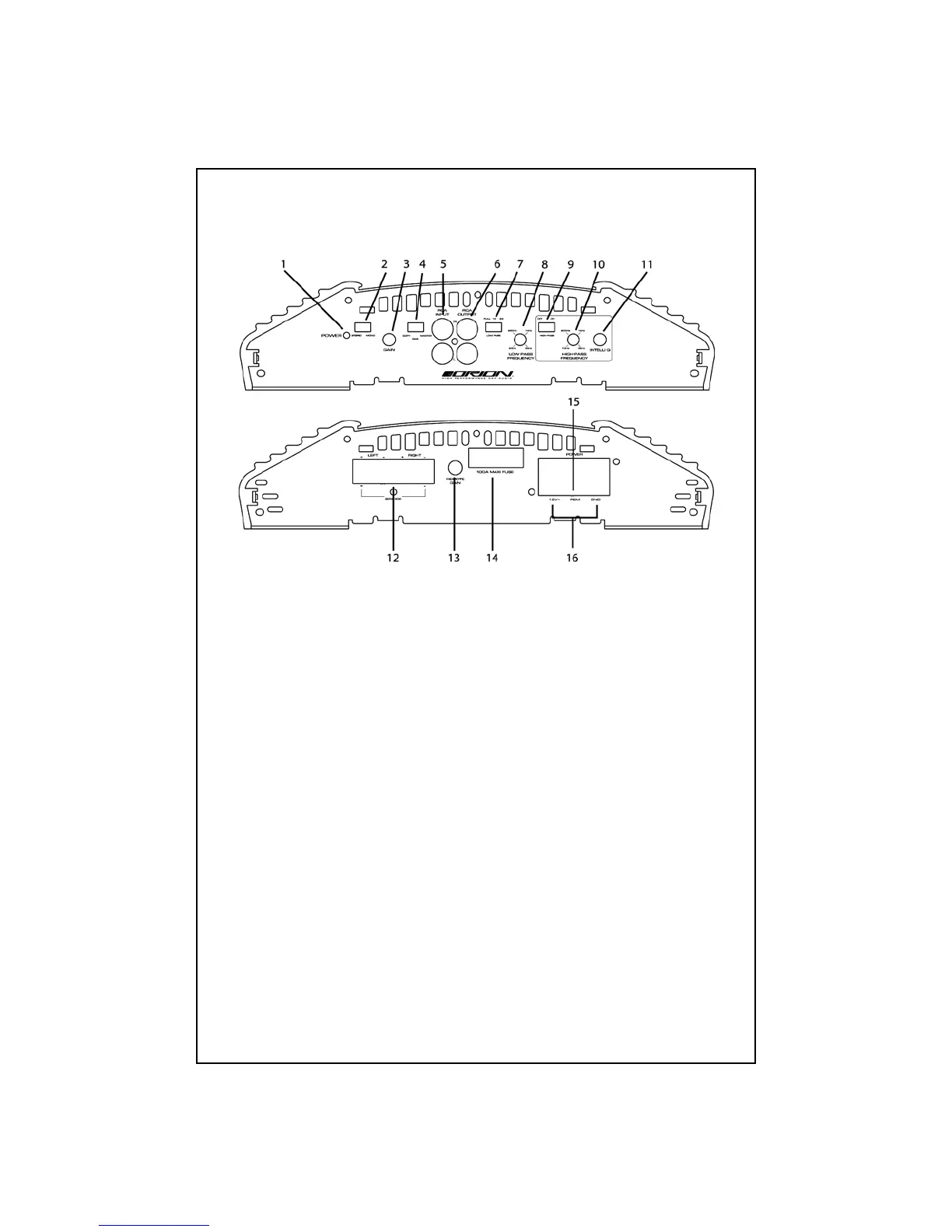

AMPLIFIER CONTROLS AND CONNECTIONS
1. Power LED - when lit indicates that the amplifier is on.
2. Stereo/Mono Switch - configures the amplifier for one or two inputs.
3. Gain Control - continuously adjusts from 200mV to 5V for full power output.
4. Copy/Gain/Master Switch - determines the output of the RCA outputs.
5. RCA Inputs - accepts RCA input from a source unit, preamplifier, or equalizer.
6. RCA Outputs - provides easy connection to additional amplifiers.
7. Low-Pass Crossover Switch - activates 2nd or 4th order low-pass crossover.
8. Low-Pass Frequency Control - adjusts the frequency of the low-pass crossover.
9. High-Pass Crossover Switch - activates 2nd order high-pass crossover.
10. High-Pass Frequency Control - adjusts the frequency of the high-pass crossover.
11. INTELLi Q Control - continuously adjusts the "Q" boost of the high-pass
crossover from 0 to 10dB of boost.
12. Speaker Connections - allow up to 12-gauge speaker wire.
13. Remote Gain Connector - allows the gain of the amplifier to be controlled
remotely.
14. 1 MAXI Fuse - protects the amplifier from over current situations.
15. REM Remote Turn-on Input - turns on the amplifier when fed 12 V+.
16. Power Connections - allow up to four-gauge power and ground cables.
5
