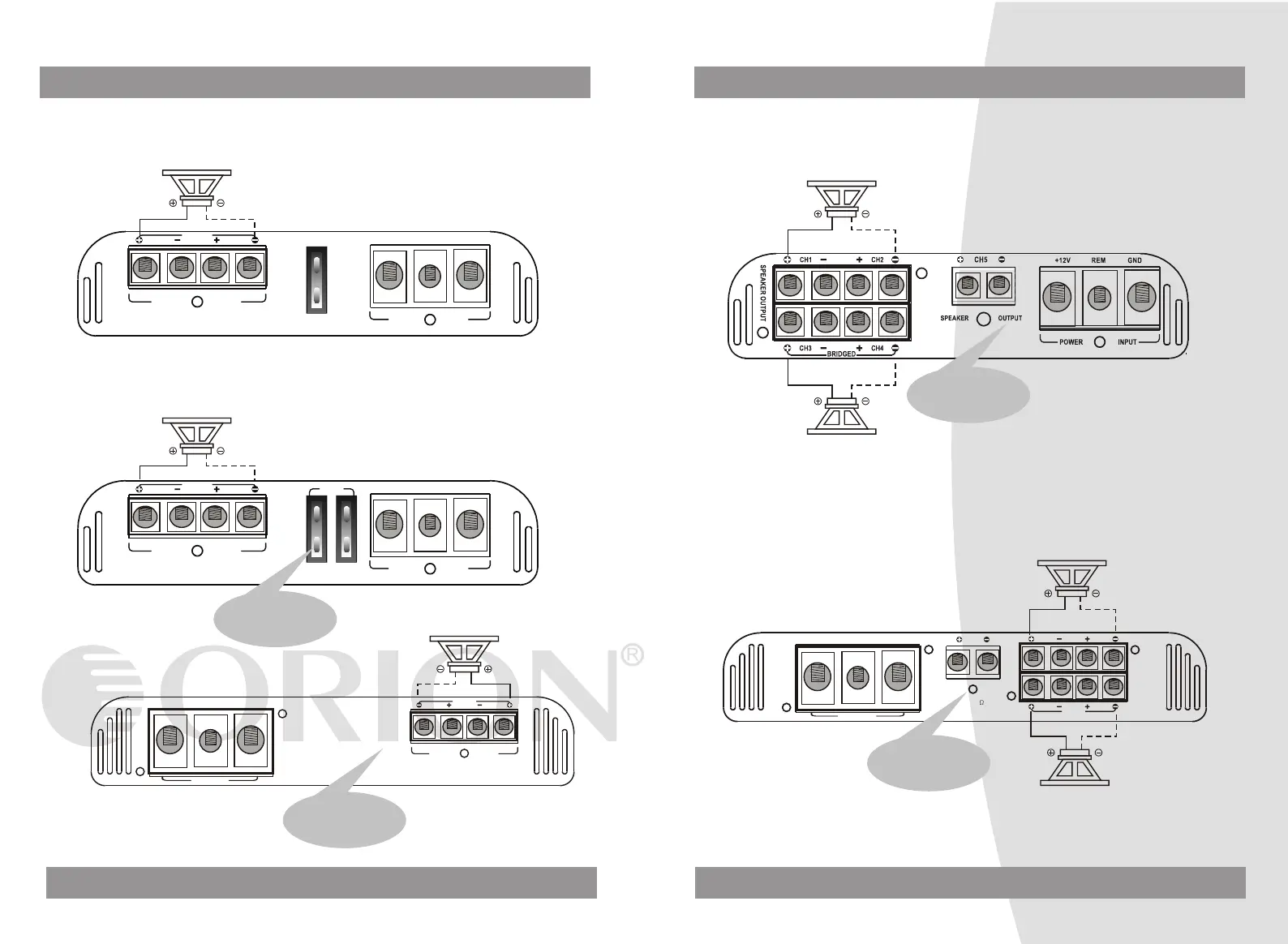

Orion Cobalt CB1500.5 - Bridged Wiring for 2-Channel Amps; Bridged Wiring for 5-Channel Amps

19
20
BRIDGED MODE BRIDGED MODE
CB300.2
MONO SPEAKER
4~8Ohm
SPEAKER OUTPUT
REM
+12V
GND
POWER INPUT
FUSE
LEFT RIGHT
BRIDGED
30A
CB600.2/CB1200.2
MONO SPEAKER
4~8Ohm
SPEAKER OUTPUT
REM
+12V
GND
POWER INPUT
LEFT RIGHT
BRIDGED
FUSES
CB1500.5
MONO SPEAKER
4~8Ohm
MONO SPEAKER
4~8Ohm
MONO SPEAKER
4~8Ohm
MONO SPEAKER
4~8Ohm
SPEAKER OUTPUT
CH5
BRIDGED
CH3 CH4
CH1 CH2
SPEAKER OUTPUT
MIN 1
REM
POWER INPUT
GND
+12V
CB2700.5
CB1500.5:100A
CB2700.5:150A
CB2700.2
REM
POWER INPUT
SPEAKER OUTPUT
BRIDGED
+12V
GND
LEFT RIGHT
MONO SPEAKER
4~8Ohm
CB2700.2:150A
CB600.2:30Ax2
CB1200.2:40Ax2
