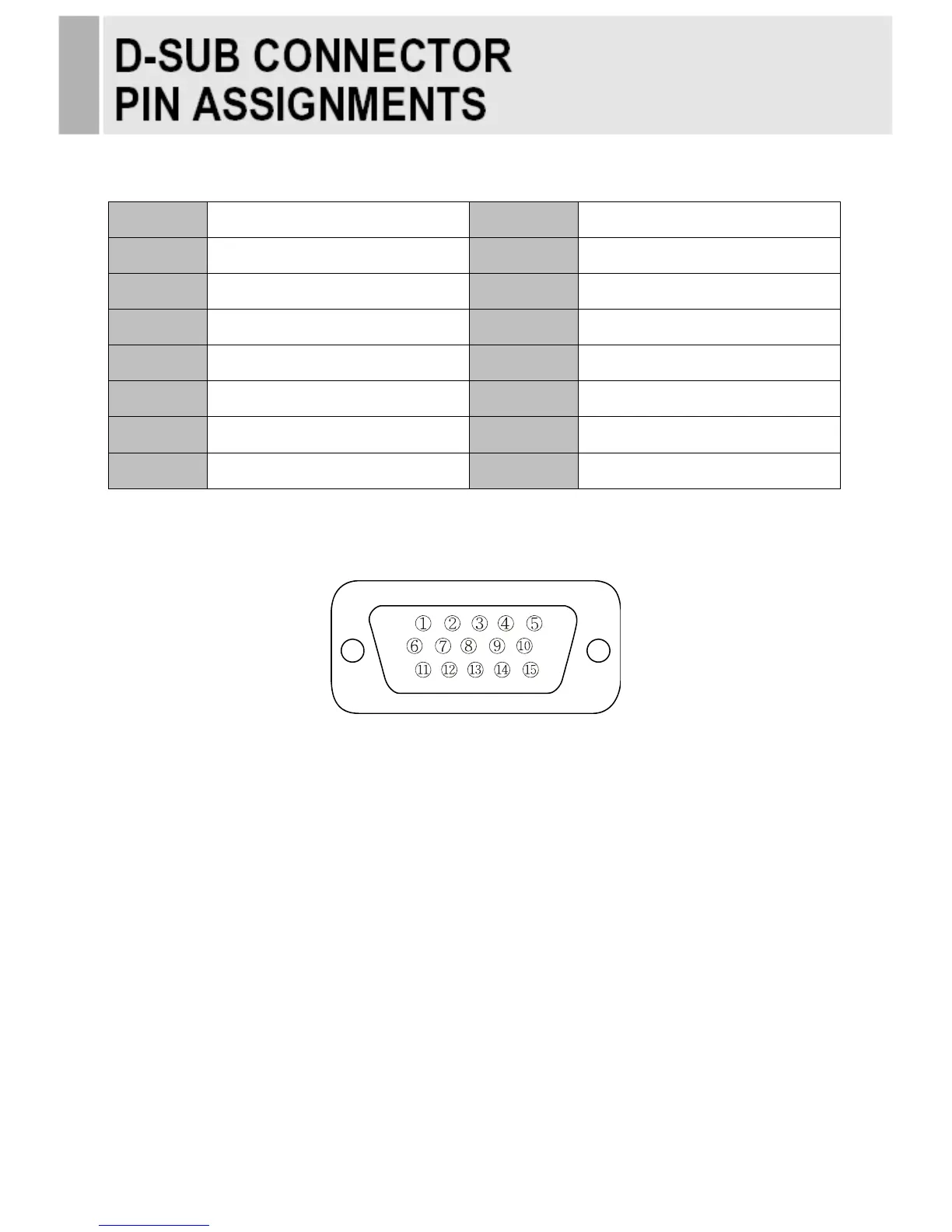

▶ Pin Assignments
Pin 1 RED VIDEO 9
2 GREEN VIDEO 10 SIGNAL CABLE DETECT
3 BLUE VIDEO 11 GROUND
4 GROUND 12 SDA(for DDC)
5 GROUND 13 H-SYNC.(or H+V SYNC.)
6 RED GROUND 14 V-SYNC.
7 GREEN GROUND 15 SCL(for DDC)
8 BLUE GROUND
D-SUB
▶ Accessories
1. Power cord.
2. Power adaptor
3. User manual.
4. VGA(RGB-PC) cable.
5. Stand base & FS4x10 screws 3EA.
6. Trigger cable (Optional)
7. Stereo cable (Optional)
8. Remote controller (Optional)
9. Batteries (Optional)
10. Wall mount (Optional)
