- 40 - - 41 -
ORION
Innitely Expandable

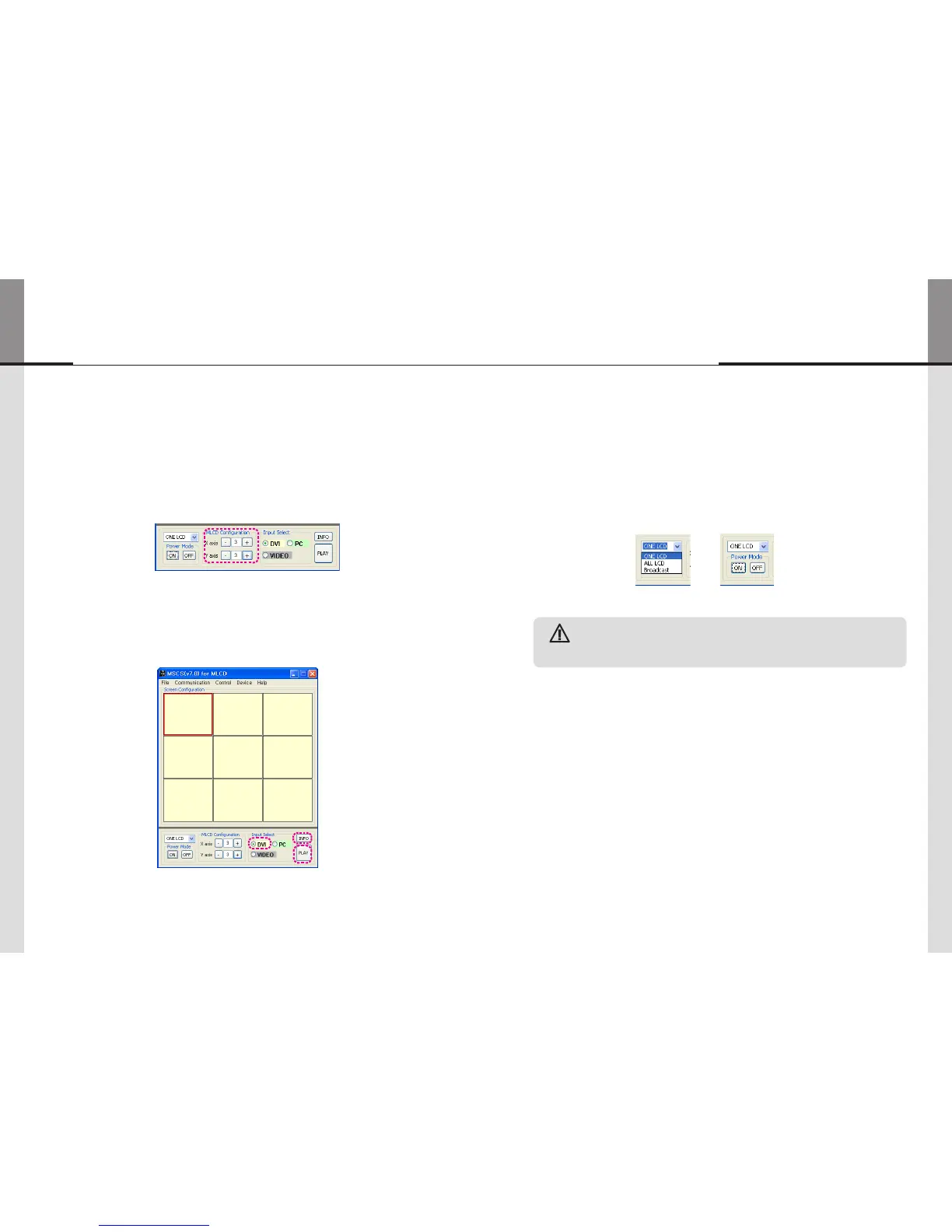

5.8. Multi-screen configuration
1. Input the numbers of X and Y
- X is for the number of row and Y is for column.
- X and Y can be selected within the range from 1 to 15. The maximum MLCD quantity of MSCS
control is 100 sets.
- MLCD image of selected numbers of X and Y is displayed in the Screen configuration in one second
after setting the number.
Screen Configuration Setting
2. Select one of input sources from DVI, PC or Video
3. Execution of the configuration.
- When you click "PLAY"button after selecting input source from Source select and the numbers of X
and Y in MLCD Configuration, the configuration of MLCD is generated as shown in the figure below.
※ INFO :
- Check the resolution of the input source. It is displayed at the upper right corner of the screen.
- Check the signal. If there is no input signal, "No signal" is displayed.
DVI
DVI
DVI
DVI
DVI
DVI
DVI
DVI
DVI
5.9. Selecting the command transmission method
• ONE LCD : Transmit Protocol Command to one MLCD.
• ALL LCD : Transmit the Protocol command sequentially to all connected MLCD sets.
• Broadcast : Transmit the Protocol command simultaneously to all connected MLCD sets.
• In order to control power of specific MLCD, use "Power On/Off" button after selecting the
specific MLCD.
MLCD Control - Power On/Off
• Please wait for at least 10 seconds before executing "Power On" command
after the first AC power connection. If not, it may cause abnormal behavior.
• Please disconnect AC power and reconnect in case of abnormal behavior.
Caution
MLCD
