- 50 - - 51 -
ORION
Innitely Expandable

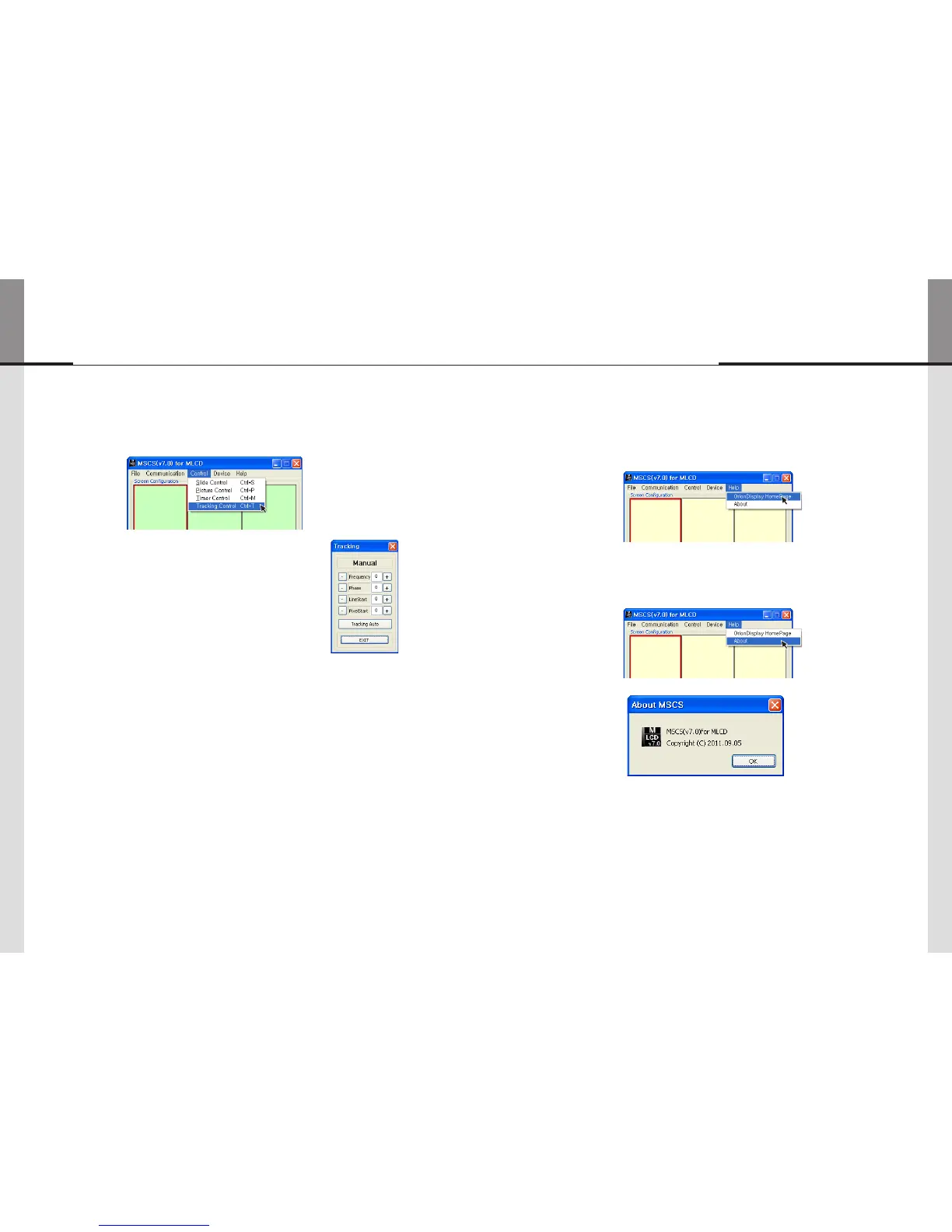

5.15. ORION Homepage log on and Version Information
• In order to move to Orion website, go to "Help" of menu bar ->"OrionDisplay HomePage".
ORION Homepage Log on
• Go to "Help" of menu bar -> "About" to check MSCS.
Checking MSCS Version
• Go to "Control" in menu bar -> Tracking Control or press
"Ctrl+T" using keyboard to run "Tracking" window.
• Press "Tracking Auto" button in order to run auto tracking.
• In case alignment doesn't work through "Tracking Auto"
command, user can tune finely through "Manual".
• Manual Tracking enables users to set Frequency, Phase,
LineStart and PixelStart.
• Select panel ID which you want to adjust alignment.
• Detail adjustment steps are as follows.
1) Tune "Phase" until the vertical lines are clearly adjusted..
2) Tune "LineStart" to adjust vertical alignment. "PixelStart" for horizontal alignment.
3) Adjust "Frequency" if alignment is still wrong.
If you adjust "Frequency", repeat step 1) and 2) to fit alignment.
Adjustable range is as follows
-The range of "Frequency" you can adjust is -50 to 50
-The range of "Phase" you can adjust is 0 to 63
-The range of "Linestart" you can adjust is -23 to 10
-The range of "Pixelstart" you can adjust is -50 to 40
• Click "EXIT" button or press "Ctrl+X" using keyboard to close "Tracking" window.
※ When "Tracking" windows is on display, users cannot display "Picture Control" window.
※ Even when "Tracking" window is on display, selecting panel ID is available by clicking right
button of mouse.
5.14. Tracking Control
• Alignment adjustment is available when input source is PC.
Tracking Manual Window
MLCD
