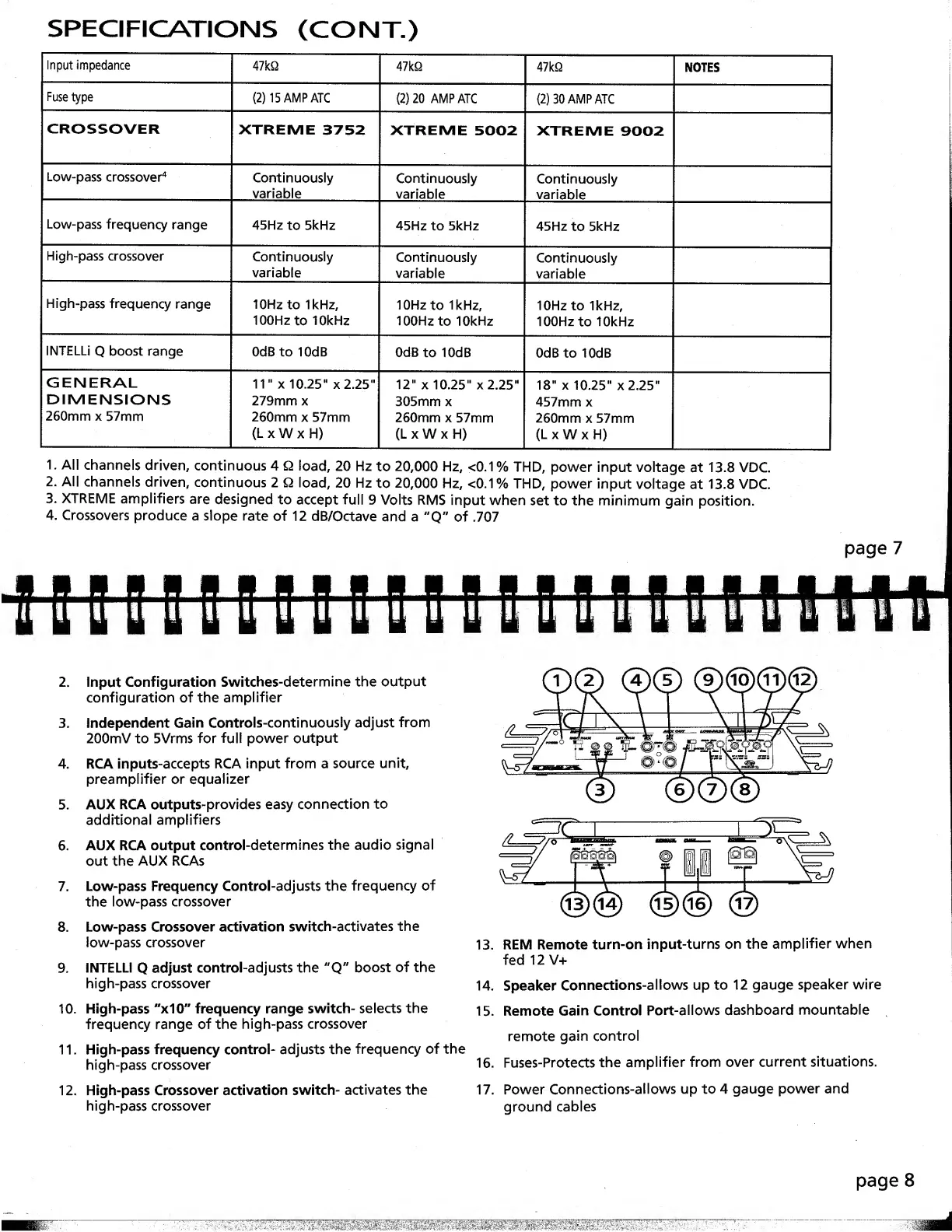

specifications
(CONT.)
Input
impedance
47kQ
47kQ
47kQ
NOTES
Fuse
type
{2)15AMPATC
(2)20
AMP
ATC
(2)
30
AMPATC
CROSSOVER
XTREME
3752
XTREME
5002
XTREME
9002
Low-pass
crossover^
Continuously
variable
Continuously
variable
Continuously
variable
Low-pass
frequency
range
45Hz
to
5kHz
45Hz
to
5kHz
45Hz
to
5kHz
High-pass
crossover
Continuously
variable
Continuously
variable
Continuously
variable
High-pass
frequency
range
10Hz
to
1kHz,
100Hz
to
10kHz
10Hz
to
1kHz,
100Hz
to
10kHz
10Hz
to
1kHz,
100Hz
to
10kHz
INTELLi
Q
boost
range
OdBtolOdB
OdB
to
lOdB
OdBtolOdB
GENERAL
DIMENSIONS
260mm
x
57mm
11"
X
10.25"
X2.25"
279mm
x
260mm
x
57mm
(LxWxH)
12"
X
10.25"
X2.25"
305mm
x
260mm
x
57mm
(L
X
W
X
H)
18"
X
10.25"
X2.25"
457mm
x
260mm
X
57mm
(L
X
W
X
H)
1.
All
channels
driven,
continuous
4
Q
load,
20
Hz
to
20,000
Hz,
<0.1%
THD,
power
input
voitage
at
13.8
VDC.
2.
All
channels
driven,
continuous
2
Q
load,
20
Hz
to
20,000
Hz,
<0.1%
THD,
power
input
voltage
at
13.8
VDC.
3.
XTREME
amplifiers
are
designed
to
accept
full
9
Volts
RMS
input
when
set
to
the
minimum
gain
position.
4.
Crossovers
produce
a
slope
rate
of
12
dB/Octave
and
a
"Q"
of
.707
lai
page
7
2.
Input
Configuration
Switches-determine
the
output
configuration
of
the
amplifier
3.
Independent
Gain
Controls-continuously
adjust
from
200mV
to
5Vrms
for
full
power
output
4.
RCA
inputs-accepts
RCA
input
from
a
source
unit,
preamplifier
or
equalizer
5.
AUX
RCA
outputs-provides
easy
connection
to
additional
amplifiers
6.
AUX
RCA
output
control-determines
the
audio
signal
out
the
AUX
RCAs
7.
Low-pass
Frequency
Control-adjusts
the
frequency
of
the
low-pass
crossover
8.
Low-pass
Crossover
activation
switch-activates
the
low-pass
crossover
9.
INTELLI
Q
adjust
control-adjusts
the
"Q"
boost
of
the
high-pass
crossover
10.
High-pass
"xIO"
frequency
range
switch-
selects
the
frequency
range
of
the
high-pass
crossover
11.
High-pass
frequency
control-
adjusts
the
frequency
of
the
high-pass
crossover
12.
High-pass
Crossover
activation
switch-
activates
the
high-pass
crossover
13.
REM
Remote
turn-on
input-turns
on
the
amplifier
when
fed
12
V+
14.
Speaker
Connections-allows
up
to
12
gauge
speaker
wire
15.
Remote
Gain
Control
Port-allows
dashboard
mountable
remote
gain
control
16.
Fuses-Protects
the
amplifier
from
over
current
situations.
17.
Power
Connections-allows
up
to
4
gauge
power
and
ground
cables
page
8
