Orion Xtreme Series User Manual

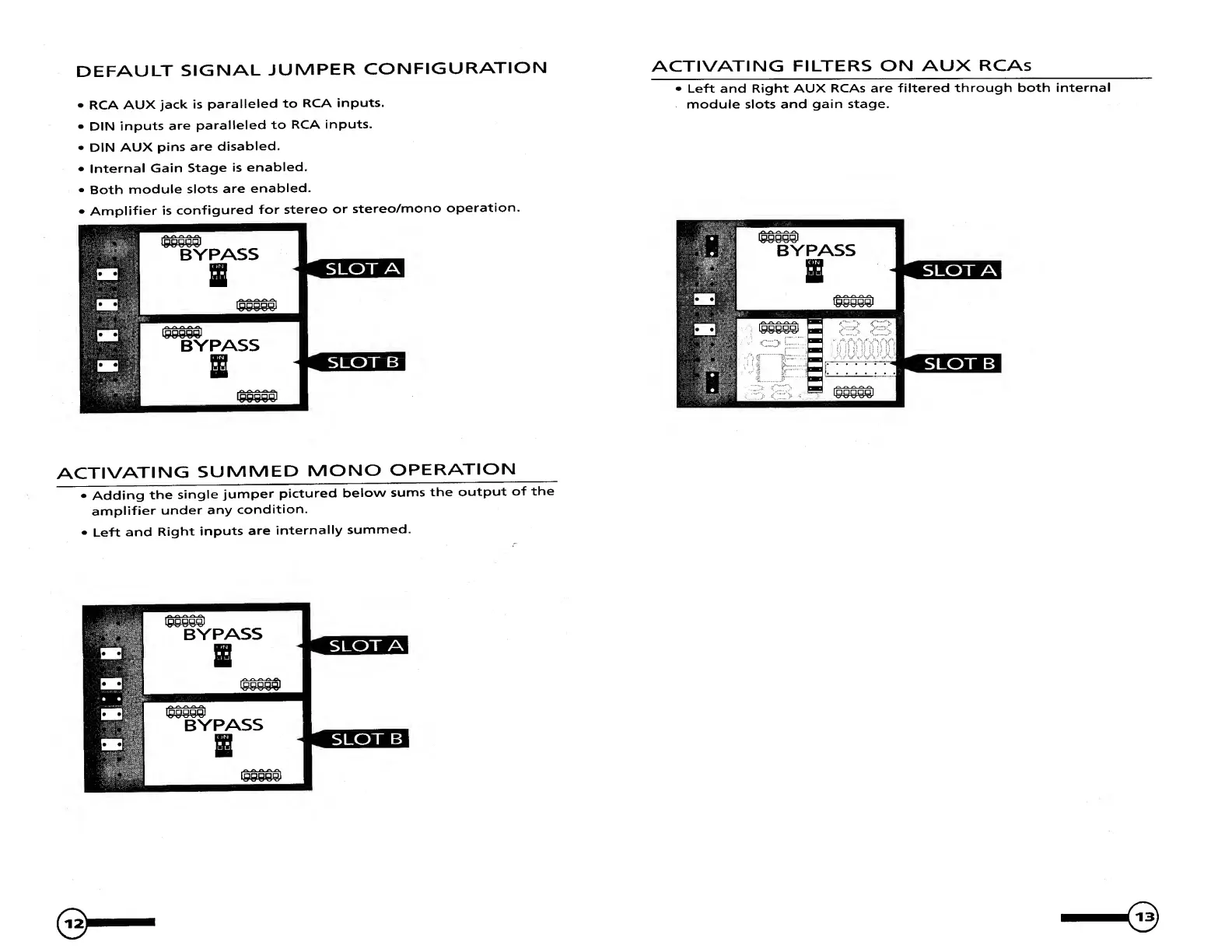

DEFAULT SIGNAL JUMPER CONFIGURATION
• RCA AUX jack is paralleled to RCA Inputs.
• DIN inputs are paralleled to RCA inputs.
• DIN AUX pins are disabled.
• Internal Gain Stage is enabled.
• Both module slots are enabled.
• Amplifier is configured for stereo or stereo/mono operation.
activating summed mon o operation
• Adding the single jumper pictured below sums the output of the
amplifier under any condition.
• Left and Right inputs are internally summed.
ACTIVATING FILTERS ON AUX RCAs _
• Left and Right AUX RCAs are filtered through both internal
module slots and gain stage.
