Orion Xtreme Series User Manual

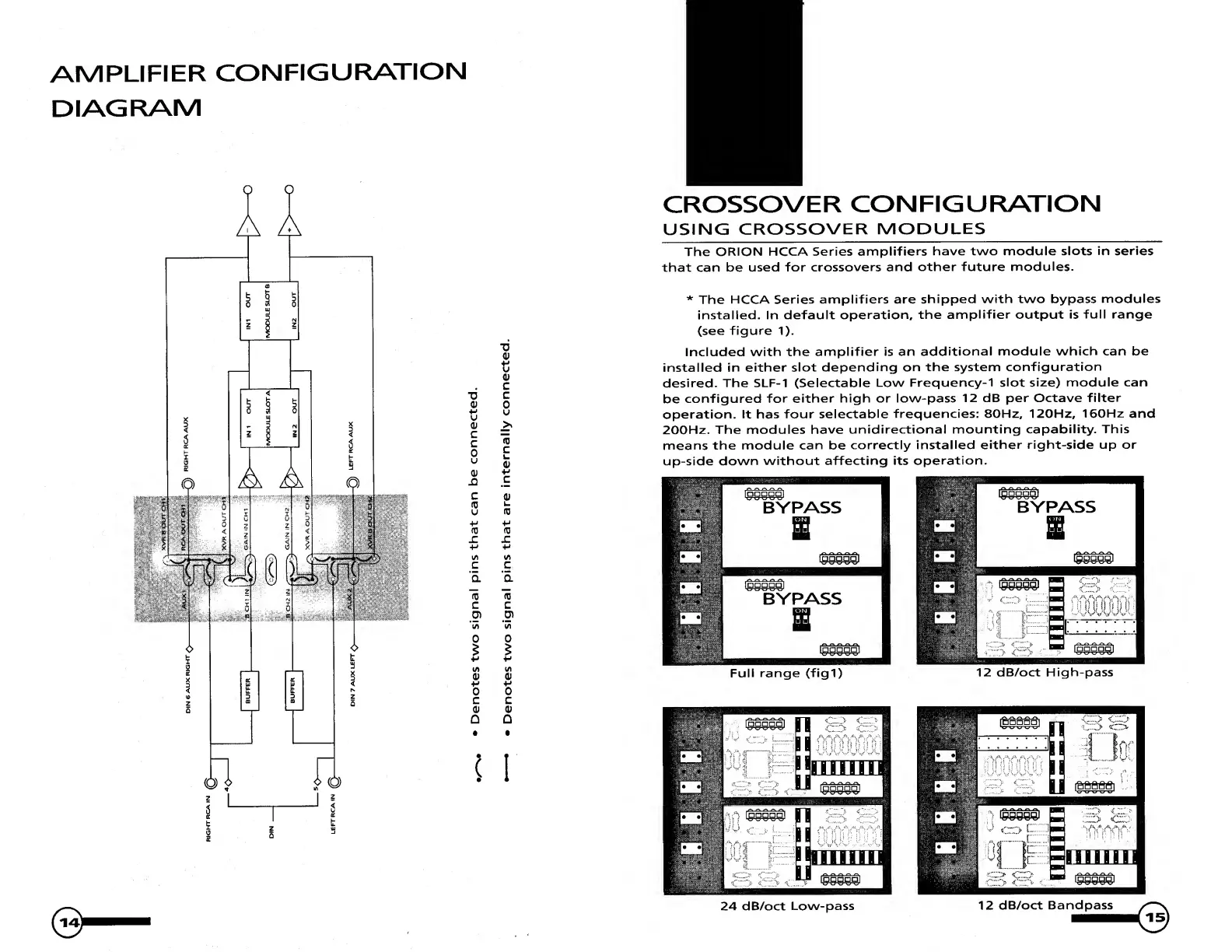

AMPLIFIER CONFIGURATION
DIAGRAM
CROSSOVER CONFIGURATION
USING CROSSOVER MODULES _
The ORION HCCA Series amplifiers have two module slots in series
that can be used for crossovers and other future modules.
* The HCCA Series amplifiers are shipped with two bypass modules
installed. In default operation, the amplifier output is full range
(see figure 1).
Included with the amplifier is an additional module which can be
installed in either slot depending on the system configuration
desired. The SLF-1 (Selectable Low Frequency-1 slot size) module can
be configured for either high or low-pass 12 dB per Octave filter
operation. It has four selectable frequencies: 80Hz, 120Hz, 160Hz and
200Hz. The modules have unidirectional mounting capability. This
means the module can be correctly installed either right-side up or
up-side down without affecting its operation.
i .
w * *
BYPASS
K*.
Icooni^
BYPASS
ps. ^
03899
Full range (figi)
12 dB/oct High-pass
24 dB/oct Low-pass
12 dB/oct Bandpass
14
15
