2.3 Assigning I/O Pins
VersaSync's I/O connector is software configurable, i.e. the pin interfaces and the signal
modulations can be configured by the user via the VersaSync WebUI.
The software-configurable 26-pin I/O connector comprises 9 user-configurable Channels,
plus one fixed USB interface. Channels can be used for the following input or output inter-
faces:

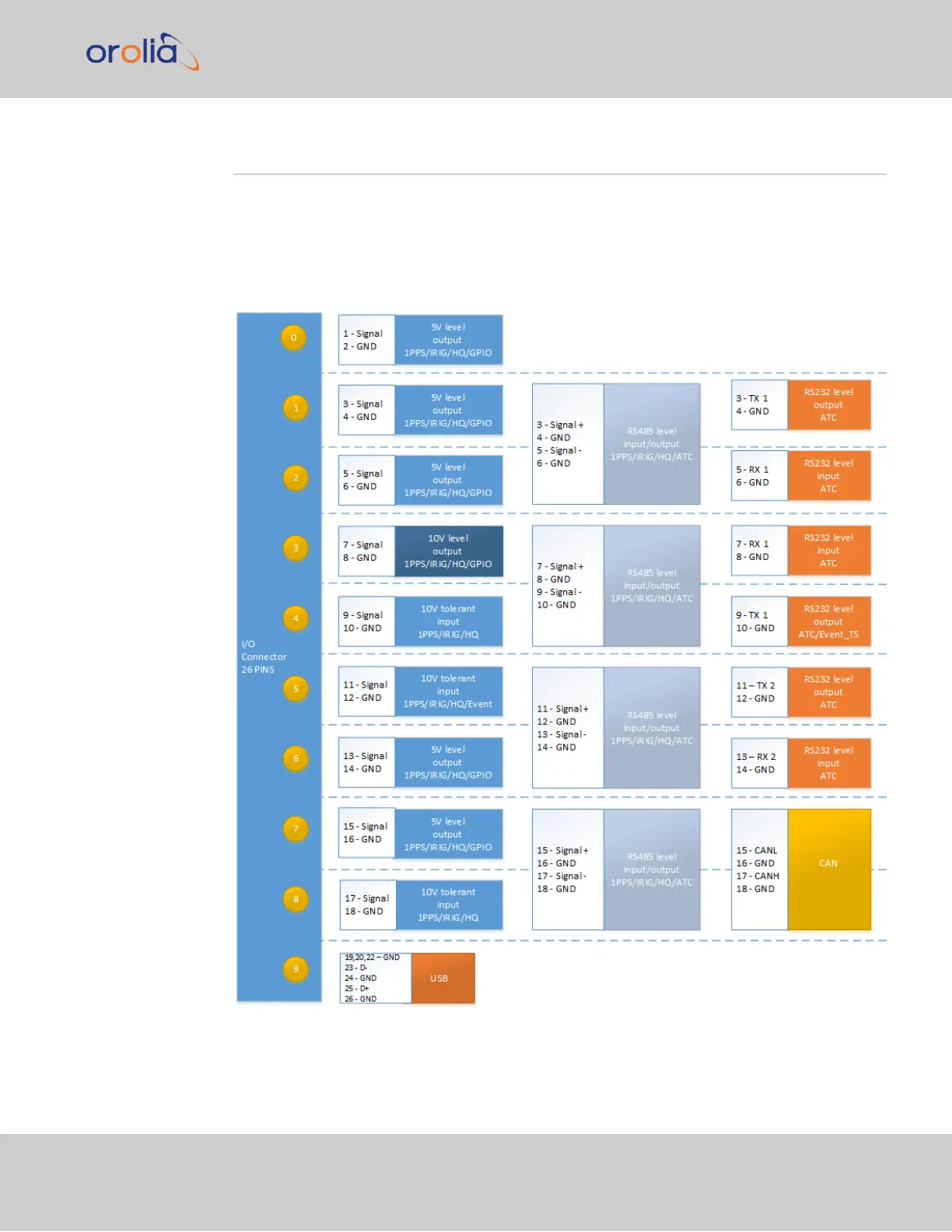

Figure 2-1: I/O configuration options
2.3 Assigning I/O Pins
VersaSync Getting Started Guide Rev. 8 21
