6-4

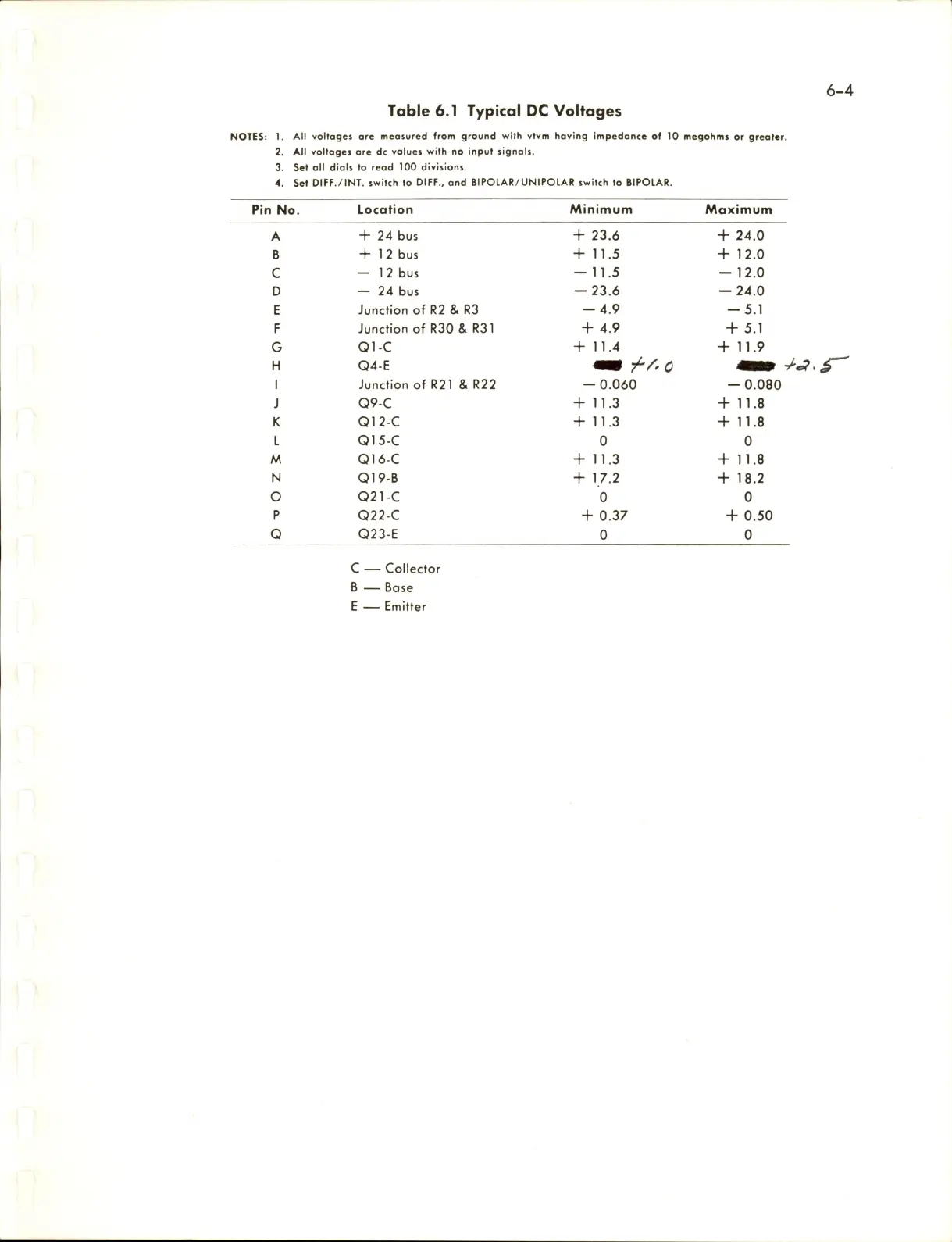

Table
6.1
Typical
DC
Voltages
NOTES:
].
All
voltages
ore
measured
from
ground
with
vtvm
having
Impedance
of
10
megohms
or
greater.
2.
All
voltages
ore
dc
values
with
no
input
signals.
3.
Set
all
dials
to
read
ICQ
divisions.
4.
Set
DIFF./INT.
switch
to
DIFF.,
and
BIPOLAR/UNIPOLAR
switch
to
BIPOLAR.
Pin
No.
Location
Minimum
Maximum
A
+
24
bus
+
23.6
+
24.0
B
+
1
2
bus
+
11.5
+
12.0
C
-
12
bus
-
11.5
12.0
D
24
bus
23.6
24.0
E
Junction
of
R2
&
R3
4.9
-5.1
F
Junction
of
R30
&
R31
+
4.9
+
5.1
G
Ql-C
+
11.4
+
11.9
H
Q4-E
MM
7^/4
0
mm
V
1
Junction
of
R21
&
R22
-0.060
-0.080
J
Q9-C
+
11.3
+
11.8
K
Q12-C
+
11.3
+
11.8
L
Q15-C
0
0
M
Q16-C
+
11.3
+
11.8
N
Q19-B
+
1
7.2
+
18.2
O
Q21-C
0
0
P
Q22-C
+
0.37
+
0.50
Q
Q23-E
0 0
C
Collector
B
Base
E
Emitter
