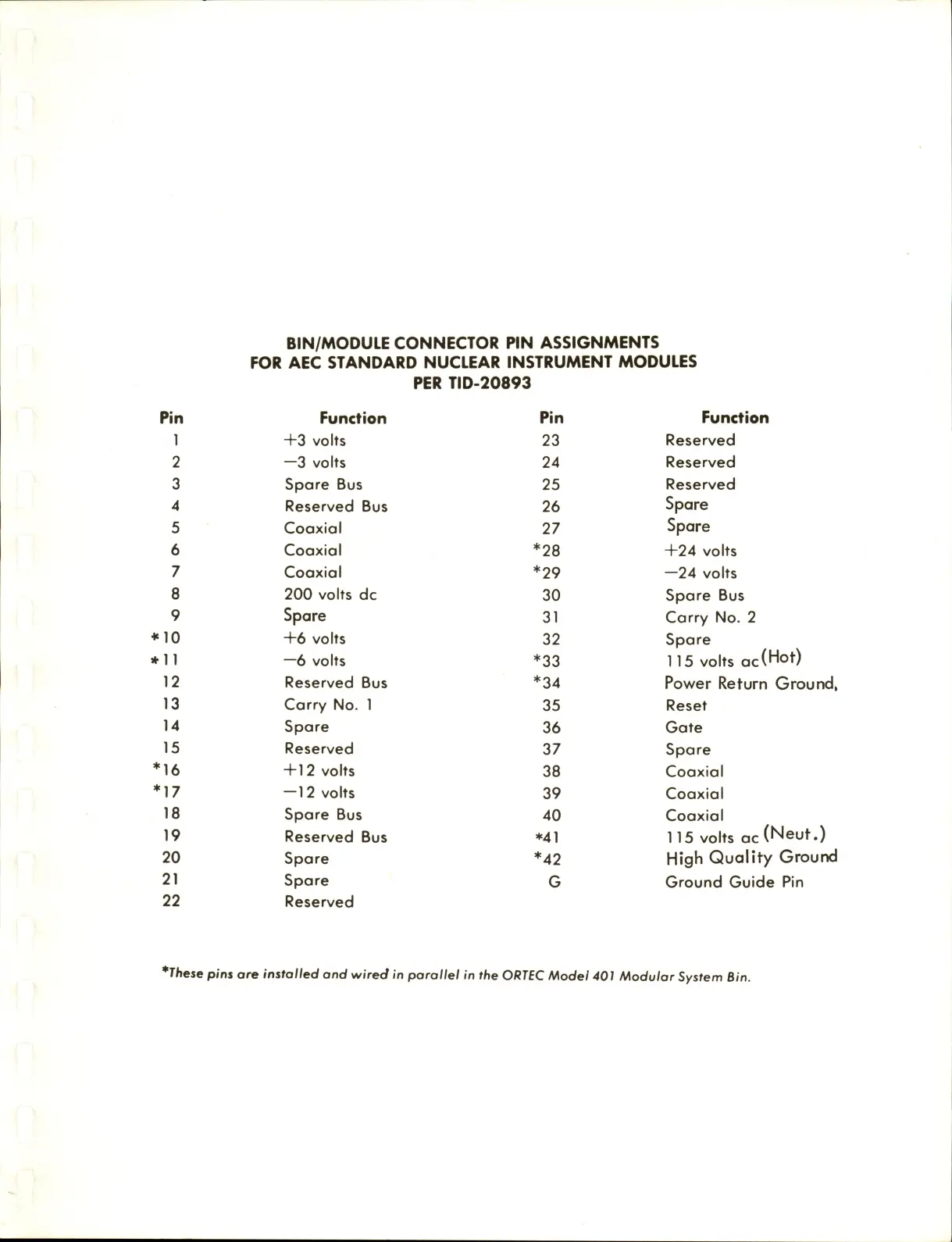

BIN/MODULE
CONNECTOR
PIN
ASSIGNMENTS
FOR
AEC
STANDARD
NUCLEAR
INSTRUMENT
MODULES
PER
TID-20893
Pin
Function
Pin
Function
1
+3
volts
23
Reserved
2
—3
volts
24
Reserved
3
Spare
Bus
25
Reserved
4
Reserved
Bus
26
Spare
5
Coaxial
27
Spare
6
Coaxial
*28
+24
volts
7
Coaxial
*29
—24
volts
8
200
volts
dc
30
Spare
Bus
9
Spore
31
Carry
No.
2
10
+6
volts
32
Spare
*11
—6
volts
*33
115
volts
acC^®'")
12
Reserved
Bus
*34
Power
Return
Ground,
13
Carry
No.
1
35
Reset
14
Spare
36
Gate
15
Reserved
37
Spare
*16
+12
volts
38
Coaxial
*17
—12
volts
39
Coaxial
18
Spare
Bus
40
Coaxial
19
Reserved
Bus
*41
115
volts
ac(Neut.)
20
Spare
*42
High
Quality
Ground
21
Spare
G
Ground
Guide
Pin
22
Reserved
These
pins
are
installed
and
wired
in
parallel
in
the
ORTEC
Model
401
Modular
System
Bin.
