Ortur Laser Master 2 - Assembly Procedure; Frame Base Construction

4
Assembly Procedure

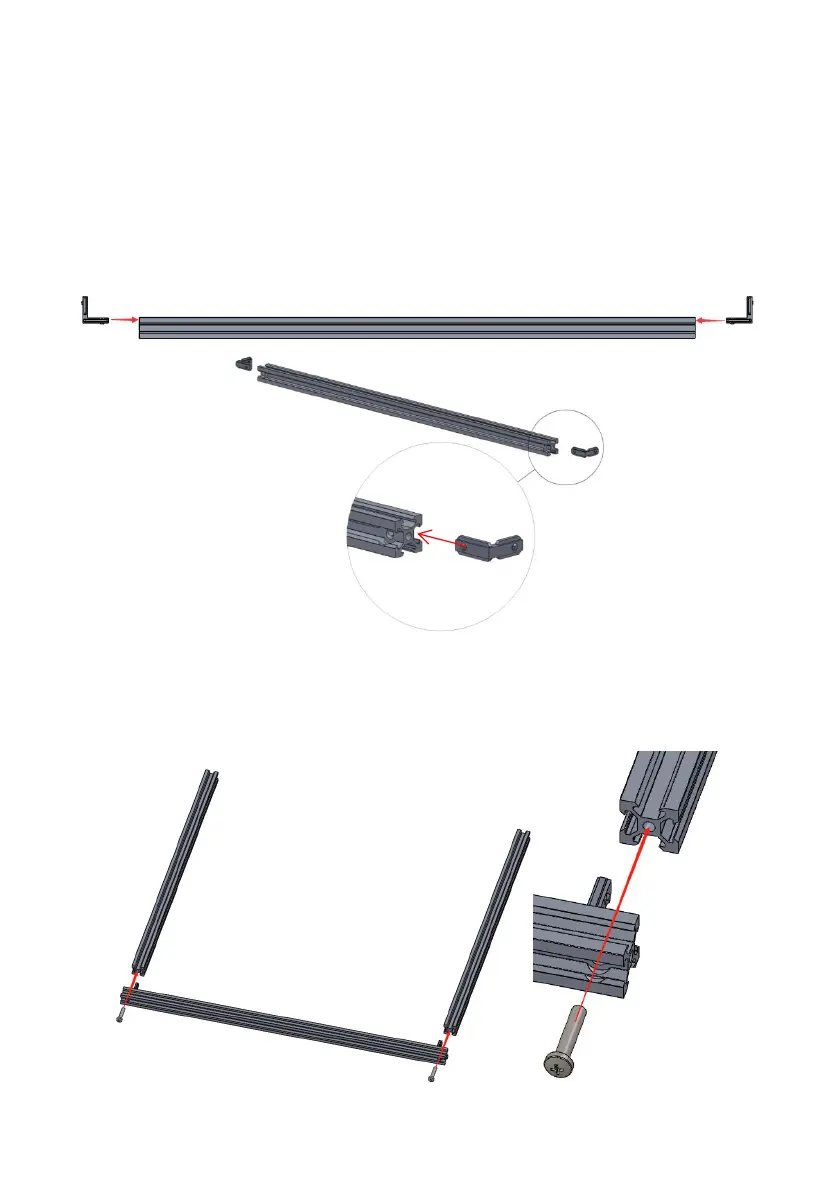

1. Take out 1 piece of aluminum profile with length of 540mm and put 2 corner
connectors into the slot. Pay attention to the installation direction.
2. Take out 2 pieces of aluminum profile with length of 460mm, fixed with 2
pieces of M5*25.
