Osaka F 300 - MECHANICAL DIMENSION AND SUBJECTION

OSAKA - F 200 / F 300 / TSF 200 / TSF 300 / M3 - User Manual - V.2 - PAG. 13

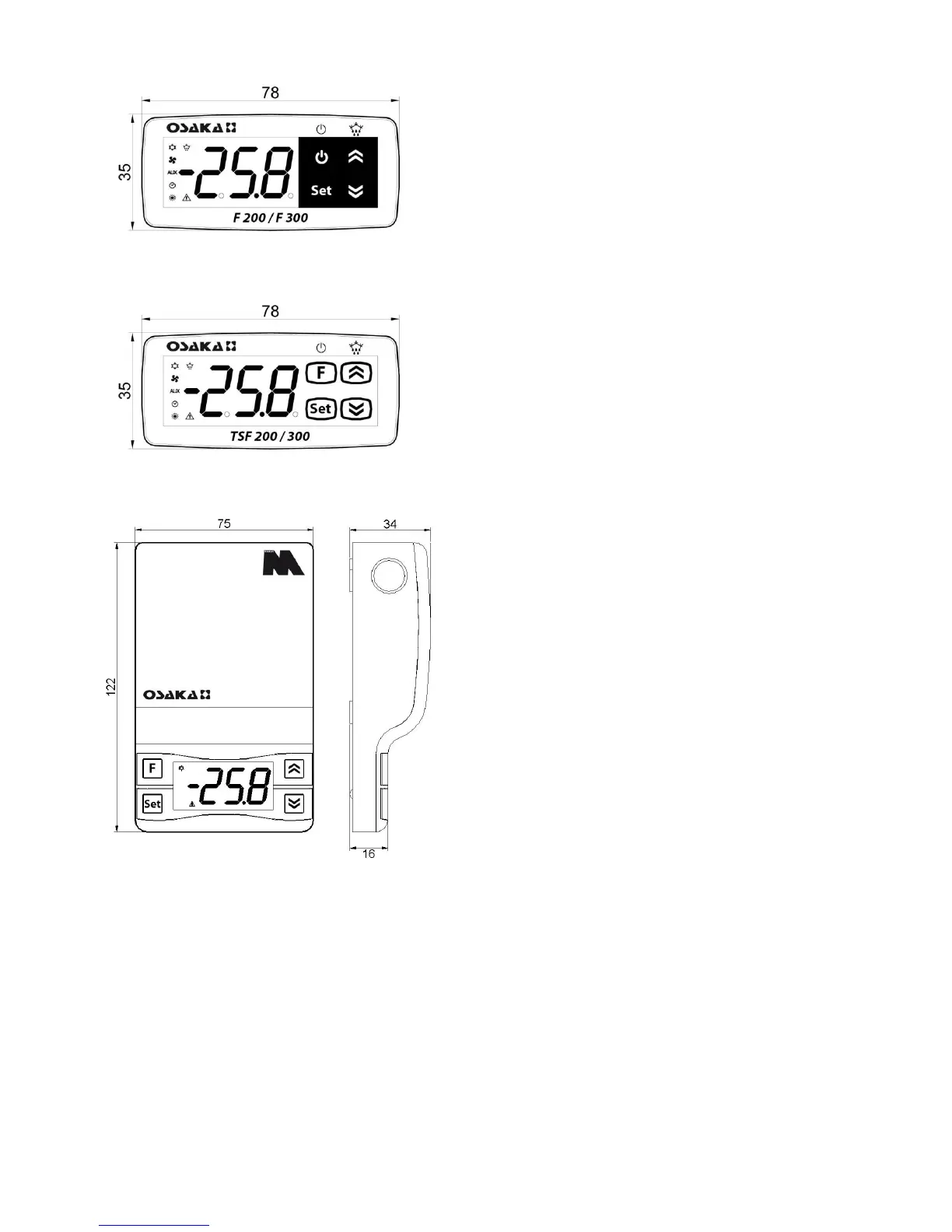

7.4 – MECHANICAL DIMENSION AND SUBJECTION
F 200 / F 300 Model
TSF 200 / TSF 300 Model
M3 Model
HOLES PANEL
- F 200 / F 300 / TSF 200 / TSF 300: 29 x 71 mm
ATTACHMENT
- F 200 / F 300 / TSF 200 / TSF 300: Side Clamps
- M3: Surface via screw
