Matrix Insert Installation and Operation Manual

52 ______________________________________________________________________________

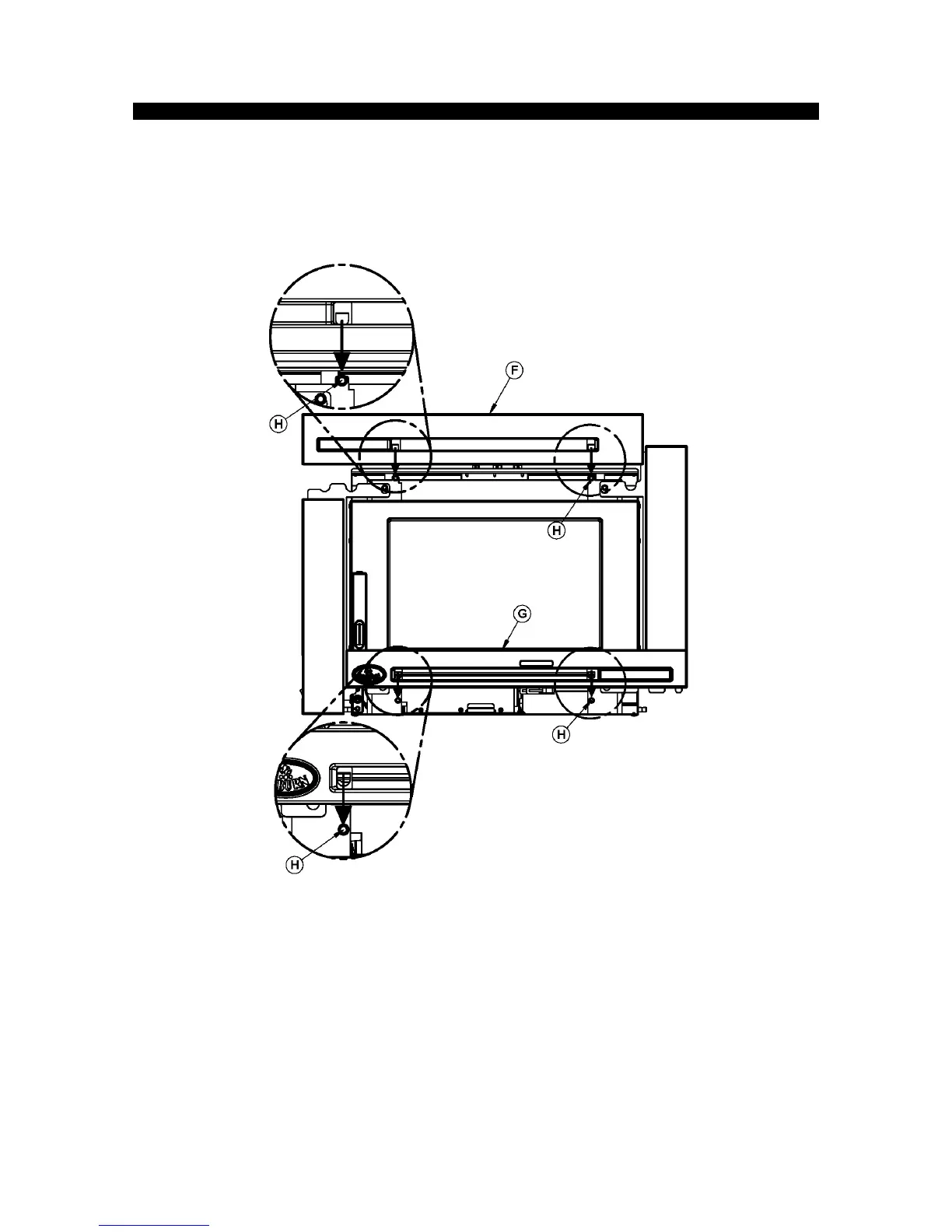

3. Align the holes in the support bracket of faceplate (F) then tighten the screws (H) already

installed on the insert.

4. Align the holes in the support bracket of faceplate (G) then tighten the screws (H) already

installed on the insert.
