Matrix Insert Installation and Operation Manual
56 ______________________________________________________________________________
APPENDIX 6: INSTALLATION OF SECONDARY AIR TUBES AND BAFFLE

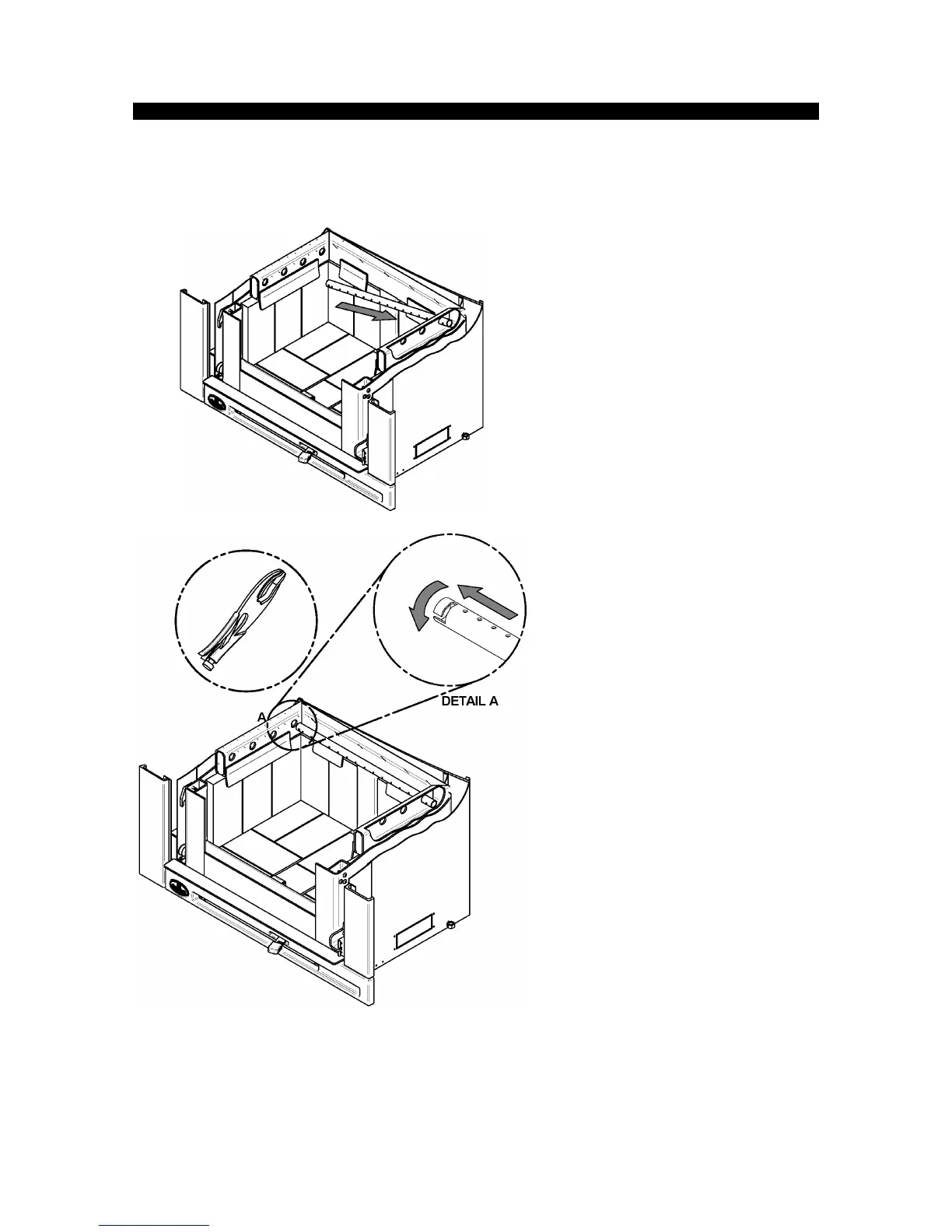

1. Starting with the rear tube, lean
and insert the right end of the
secondary air tube into the rear
right channel hole. Then lift and
insert the left end of the tube into
the rear left channel.
2. Align the notch in the left end of
the tube with the key of the left air
channel hole. Using a « Wise grip »
hold the tube and lock it in place by
turning the tube as shown in
DETAIL A. Make sure the notch
reaches the end of the key way.
3. Repeat steps 1 and 2 for the two
tubes in the back then install the
baffle before installing the two
front tubes.
4. To remove the tubes use the above
steps in reverse order.
