Osburn MATRIX User Manual

Matrix Insert Installation and Operation Manual
58 ______________________________________________________________________________
APPENDIX 7: REMOVAL INSTRUCTIONS
For the purpose of inspecting the insert itself or the fireplace, your insert may need to be
removed. To remove your insert follow these instructions:

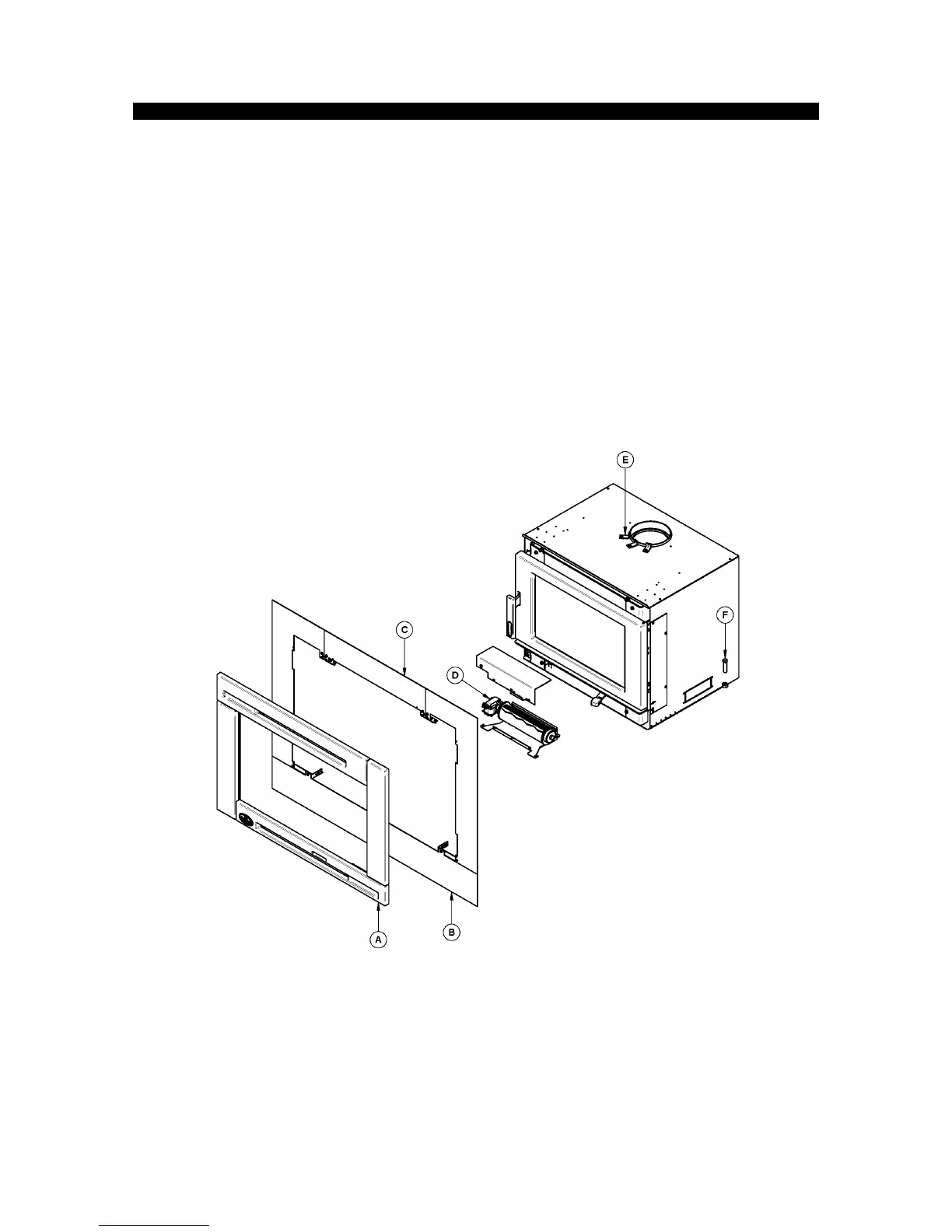

• Remove the faceplate assembly (A) using the reverse steps of Appendix 3.
• If installed, take-off the backing plates (B) and (C) and the projection kit by removing the front
screws securing them to the insert.
• Remove the screws that secure the chimney liner to the fixation brackets (E).
• Unscrew the leveling bolts (F) located on each side of the insert.
• Pull-out the insert from the fireplace opening to perform the maintenance work.

Osburn MATRIX Specifications

General

Maximum Output	75, 000 BTU/h
Emissions	1.54 g/h
Firebox Volume	2.4 cu. ft.
Blower	Optional
Burn Time	Up to 8 hours
Material	Steel
EPA Certified	Yes
Type	Wood-burning fireplace
Maximum Log Length	20 inches
Firebox Lining	Brick
