Matrix Insert Installation and Operation Manual
_______________________________________________________________________________53
APPENDIX 4: BLOWER INSTALLATION

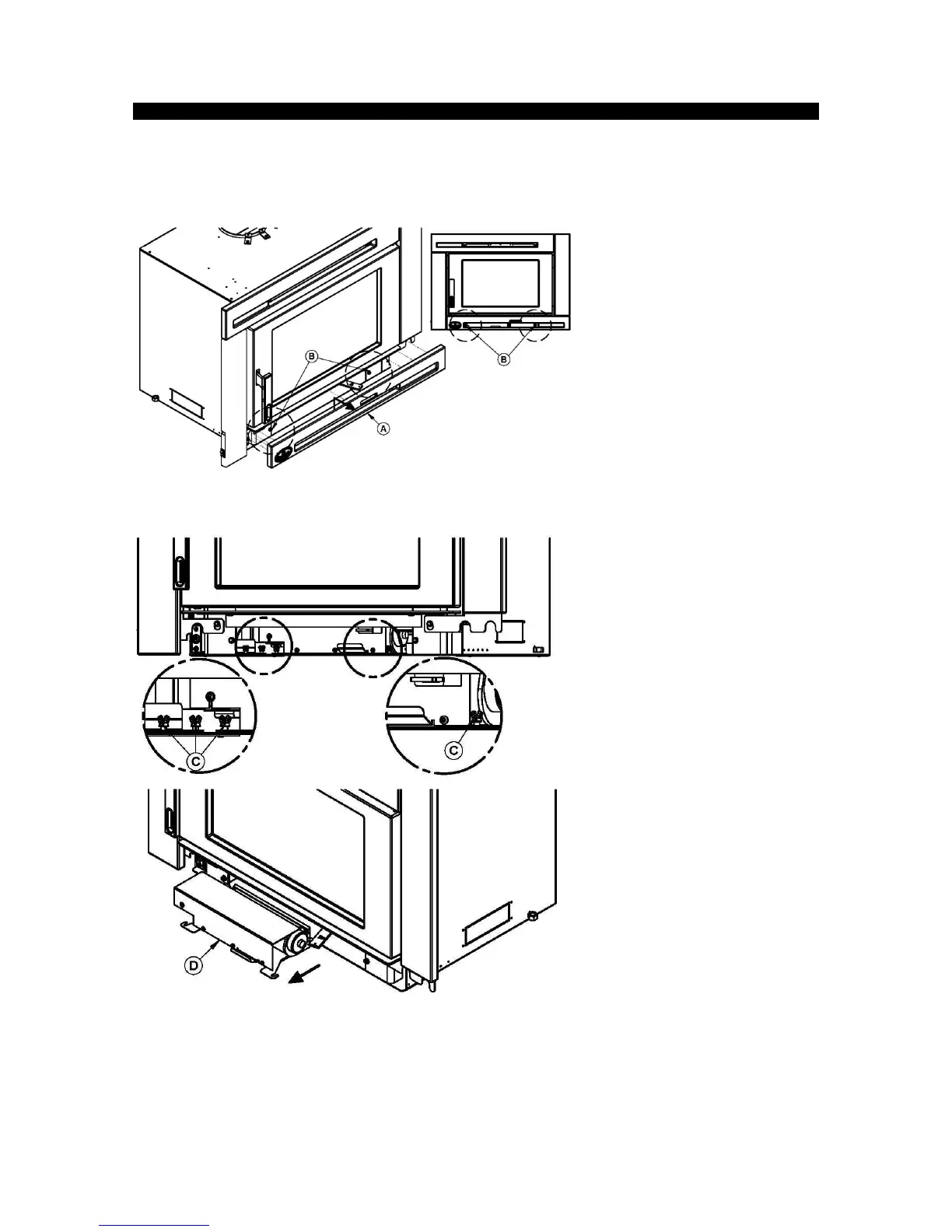

1. Slightly loosen screws (B).
2. Lift the faceplate (A) by ½”
then pull it towards you to
remove.
3. Slightly loosen the 4 wing nut
(C) then pull the fan
assembly (D) towards you to
remove it from the
convection air jacket. Make
sure to disconnect the wiring
as it is accessible.
