OSD Audio iDSP User Manual

iDSP INSTALL GUIDE

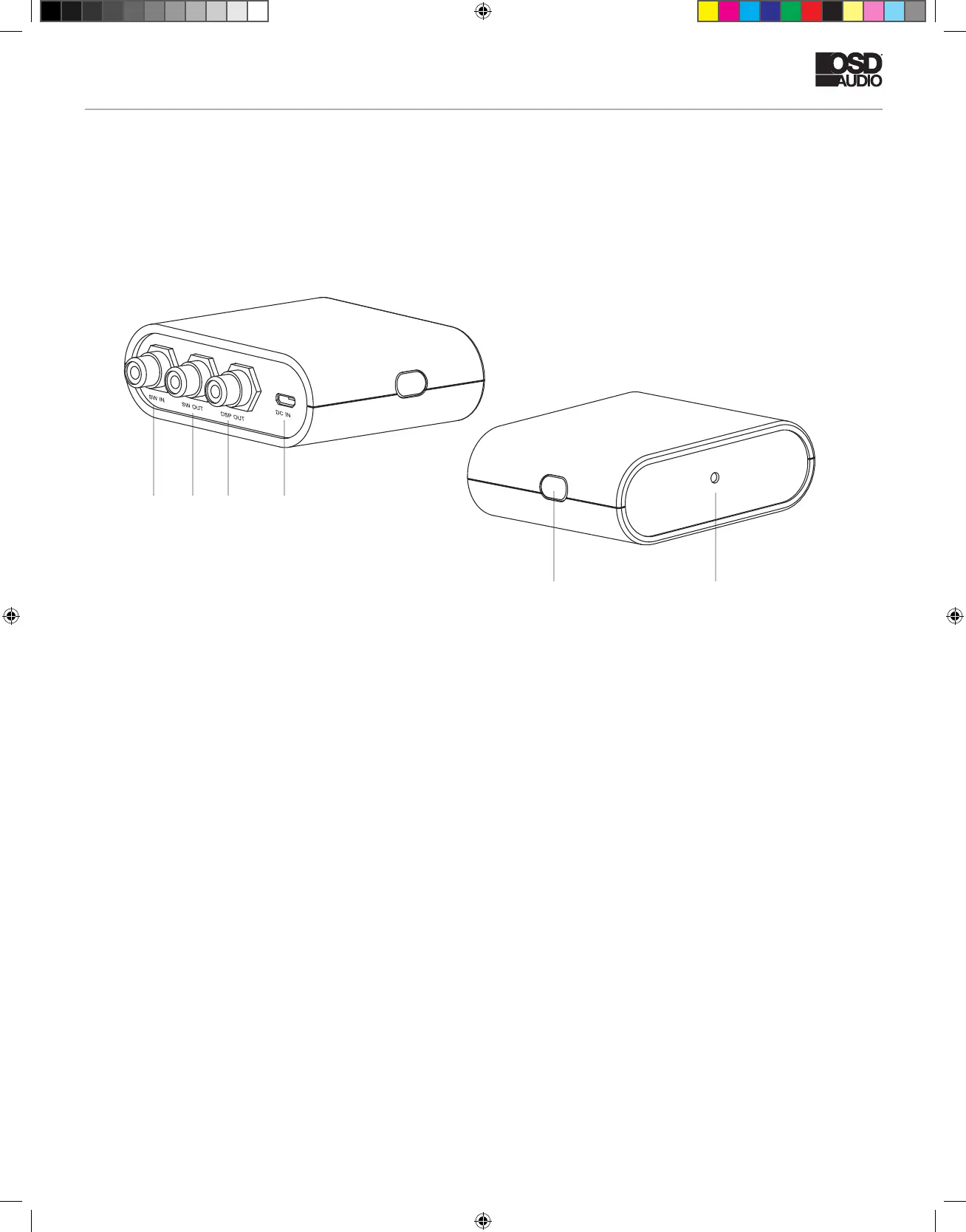

Connection & Controls
1. SW IN
Input sub signal from audio source.
2. SW OUT
Output sub signal (by pass).
3. DSP OUT
The output signal with iWoofer DSP function.
4. DC IN
DC5V/1A power input via power adaptor.
5. RESET
Press the reset key and hold about 4 seconds (led
blinks one time), the pariing code of bluetooth would be
changed to digital “0”.
6. LED
Power and control led: it’s blue color,when input DC
power ,the led turn on and ash one time.
a. if no signal input the led will lighting about 3 seconds
and turn off automatically.
b. if with signal input,the led will turn on and keep light-
ing status.
c. when adjust specication(Gain,delay,phase ect) via
App of mobile phone,the led with blinking lighting status.
d. no signal input last about 2 minutes,the led will turn
off automatically.
3. 4.2.1.
5.
6.
RESET
RESET
RESET
RESET
