BATTERY REMOVAL AND INSTALLATION:
- Ensure power is turned off, and remove the key.
- Undo the Velcro tie straps on the sides and on the top flap.
- Carefully slide the battery connectors off, one at a time. Note the
direction and position of the batteries, and the terminal for each
wire. When it comes time to reconnect, each wire must be to the
correct terminal.
- Push the remaining positive and negative wires to the back of the
bike, so the battery bag can be carefully lifted off. Carefully lift off
and remove the battery bag.
- Each battery can now be carefully removed.
To Re-Install the batteries and bag, reverse the above procedure.

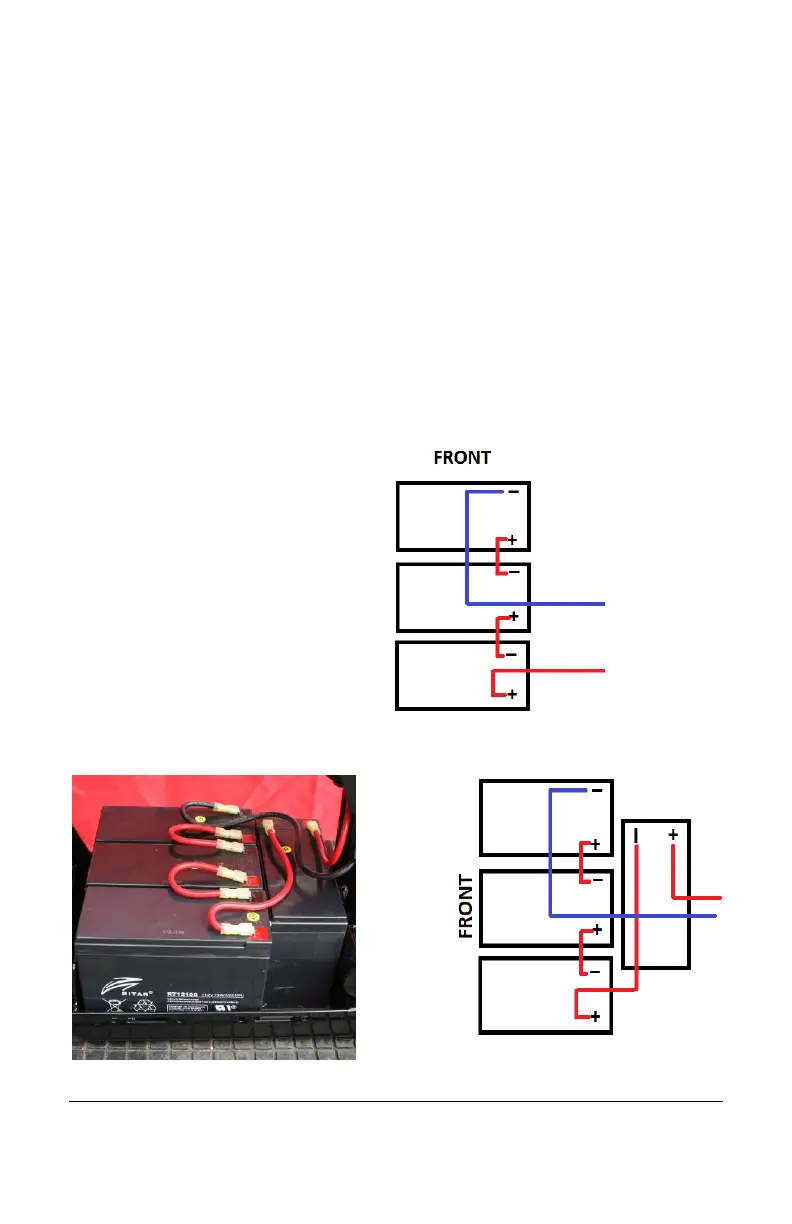

36V:
The 36V is set up the same as
the 48v but the battery at the
front is omitted seen here.
20.0 48V system.
