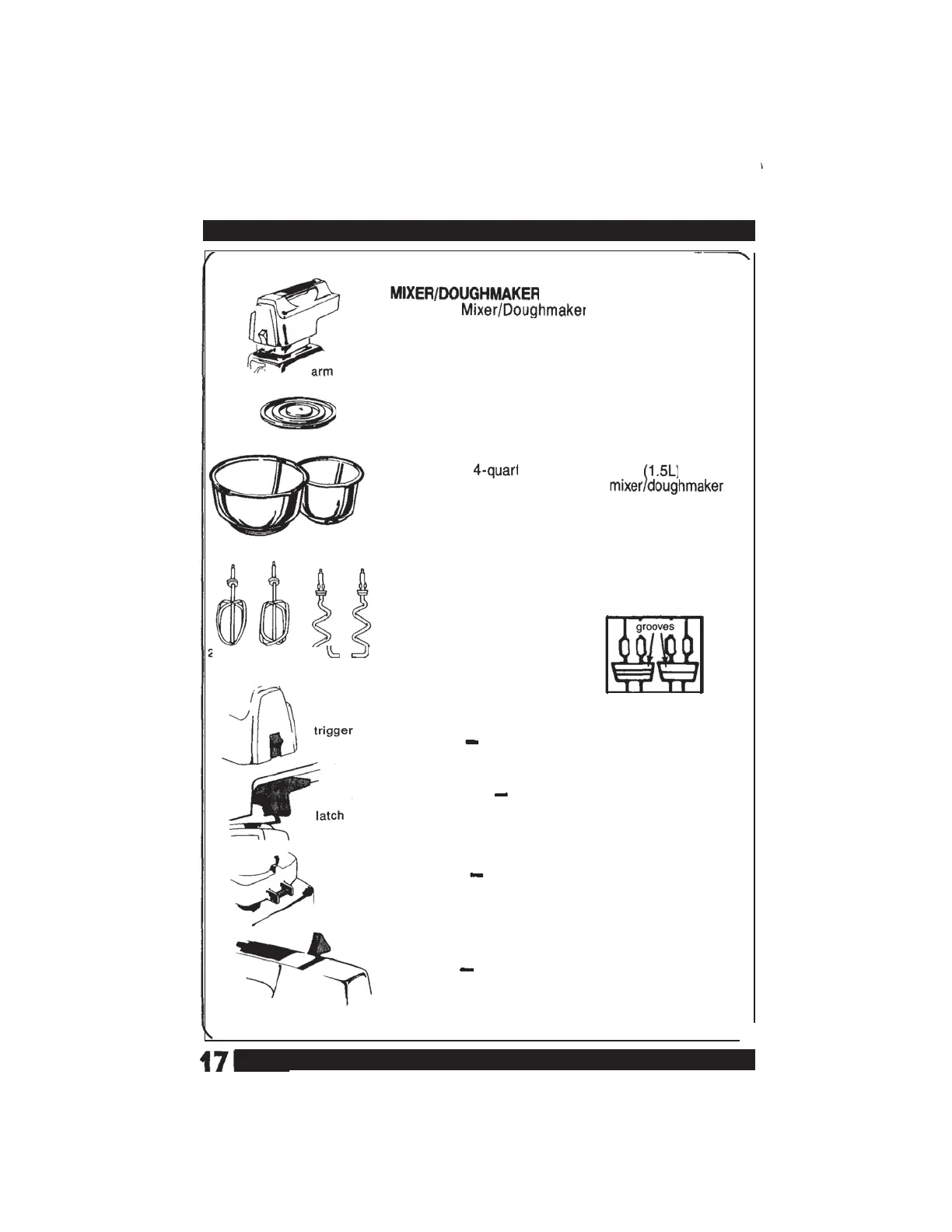

Oster Kitchen Center - MIXER;DOUGHMAKER PARTS

PARTS
turntable
bowls
!-groove l-groove
round square P-groove l-groove
beater
beater hook
hook
pivot
pin
ejector
ARM: The Arm has been de-
signed to function as a mixer as well as a
doughmaker. The Arm locks securely to Motor Base
for mixing and doughmaking operation.
TURNTABLE: The Turntable has been designed to
provide smooth, free rotation of the bowl in the prepa-
ration of heavy mixtures.
BOWLS: The (4L) and 1 %-quart mixing
bowls are designed for use with the
The ridge on the bottom of the bowl fits into the cor-
responding groove on the turntable. Your model Kitchen
Center appliance may come with either glass or stainless
steel bowls, depending on which style was purchased.
BEATERS AND HOOKS: The Collars, located on the
shaft of the Beaters and Hooks, have identifying
grooves for proper assembly. Note that the two Dough
Hooks and Beaters have either 1 or
2 grooves and fit into the matching
sockets in the underside of the
Mixer Arm. NOTE: The round
Beater has a nylon button on the
tip, and the square Beater does
not.
TRIGGER hinge lock that secures Mixer/
Doughmaker Arm into position on Motor Base.
RELEASE LATCH allows Arm to be raised or low-
ered. Cams will drop into position automatically to
support Arm in raised position.
PIVOT PINS located on each side of Motor Base
ring. Trigger and Release Latch snap onto Pivot Pins
so that Arm locks securely in place.
EJECTOR small lever located on top of Mixer/
Doughmaker Arm. Move Ejector Lever to side to eject
Beaters or Dough Hooks.
