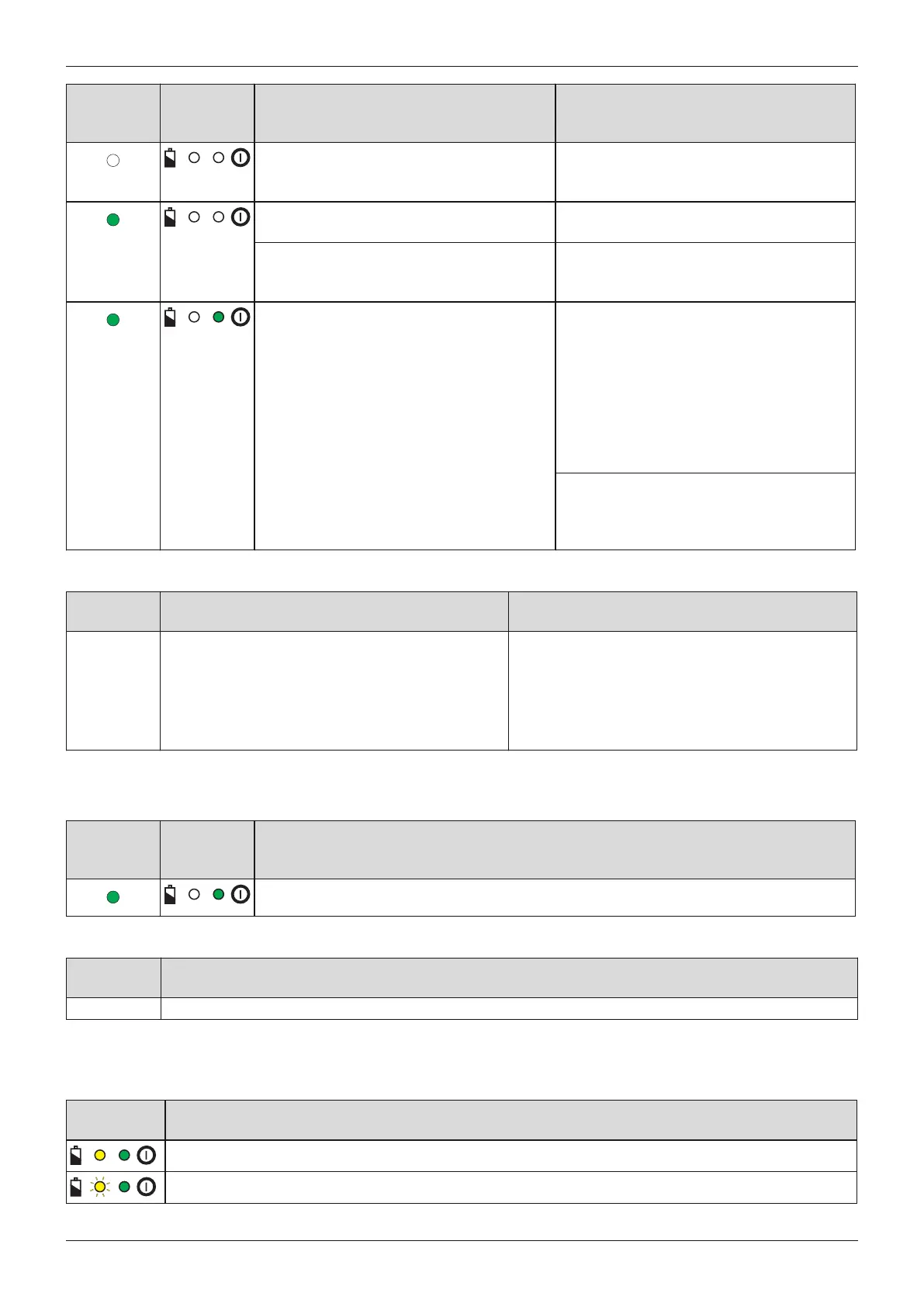

Otto Bock C-Brace - Status Signals

LED on
power sup
ply
LED on
battery
charger
Error Resolution
Defective power supply The battery charger and power supply
must be inspected by an authorised
Ottobock Service Centre.
No connection between battery charger
and power supply
Check whether the charging cable plug is
fully engaged on the battery charger.
Defective battery charger The battery charger and power supply
must be inspected by an authorised
Ottobock Service Centre.
Take note of the different beep signals to
identify the given charging state.
Upon connecting or disconnecting the
battery charger, a self-test is conducted
which is confirmed by beep signals.
When these beep signals are heard, the
battery is fully charged.
If no beep signals are heard, the connec
tion to the product is interrupted.
Battery is fully charged (or connection
with product is interrupted).
If the connection to the product is inter
rupted, an authorised Ottobock Service
Centre must inspect the product, battery
charger and power supply.
Error after disconnecting the battery charger (error on self-test)
Beep sig
nal
Error Resolution
5x long Self-test error
• Restart the product by connecting and dis
connecting the battery charger (up to three
times)
• If the error persists, the product must be
inspected by an authorised Ottobock Service
Centre
17.2.3 Status signals
Battery charger is connected
LED on
power sup
ply
LED on
battery
charger
Event
Power supply and battery charger operational
Battery charger disconnected
Beep sig
nal
Event
1x short Self-test completed successfully.
Battery charge level
The current battery charge level can only be displayed by connecting the battery charger and power supply to the
product.
Battery
charger
Battery charge level less than 50%
Battery charge level over 50%
83C-Brace
