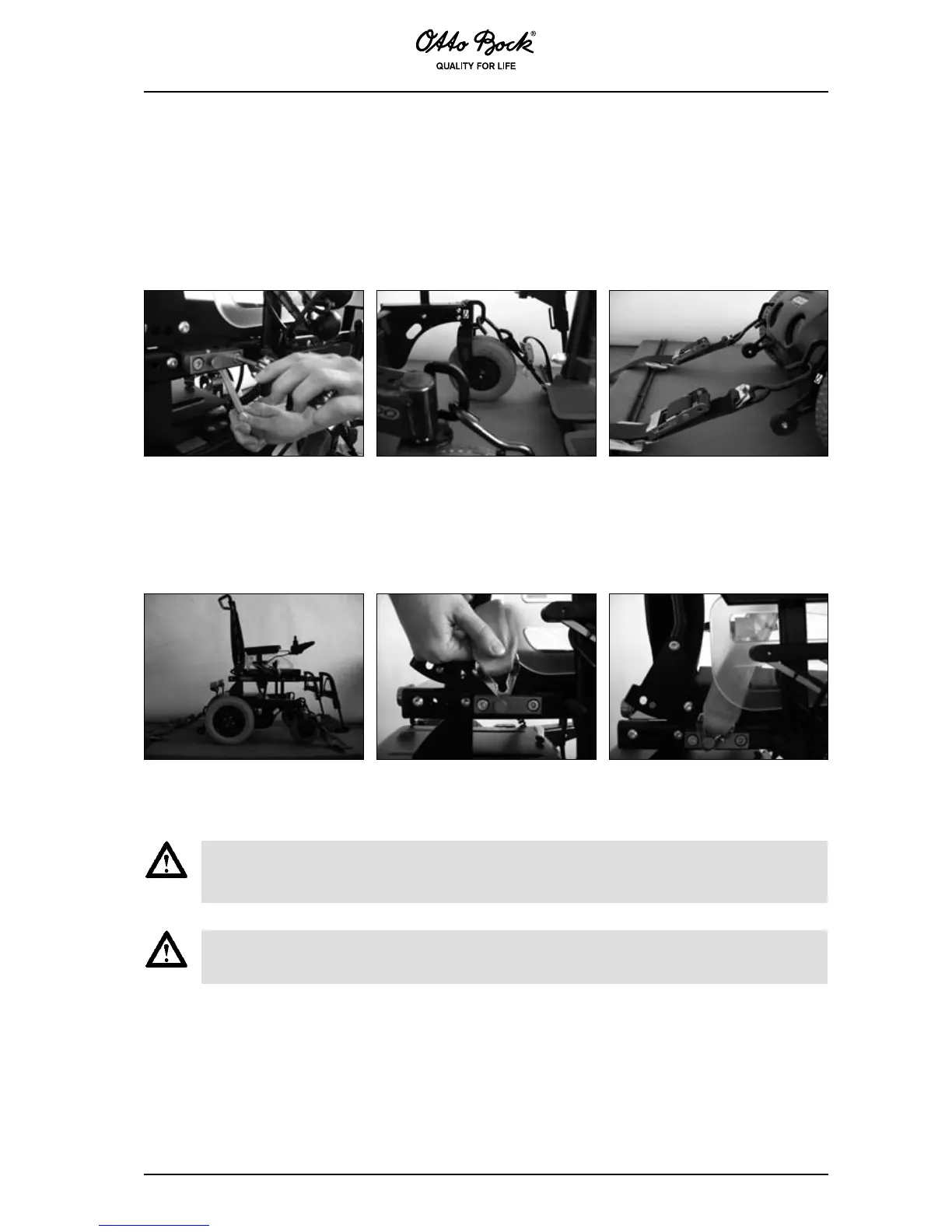

6 Product Specic Instructions – Power Wheelchairs
– B400 –
For assembly of the 491S00=SK024 xation kit you will need the following tools: Ring wrenches sizes 13 and
17, Allen key size 6
Routing the lap belt
Screw the supplied pins into the
bores on the seat frame on the left
and right.
Pass the two ends of the lap belt towards the back from the sides of
the seat and attach each end of the lap belt to the pin on the respective
opposite side.
Attaching the anchoring points to the product
B400 showing the correct positioning
of the tie-down straps.
This power wheelchair is equipped with an angle-adjustable back rest. Prior to operation, adjust
the back rest to a nearly upright position and check if the locking mechanism has engaged on both
sides. Observe the specications in the instructions for use of the power wheelchair.
The rear belt eyelets are already
installed on the drive unit sustainer
at the factory.
Afx the supplied belt eyelets to
the bores provided in the chassis
above the casters.
This power wheelchair may be equipped with a choice of electrical or mechanical tilt feature.
The tilt must be adjusted to 0° prior to operation.
